Trim and seals for door, rear for BMW 3 Series E90 320d (2008)

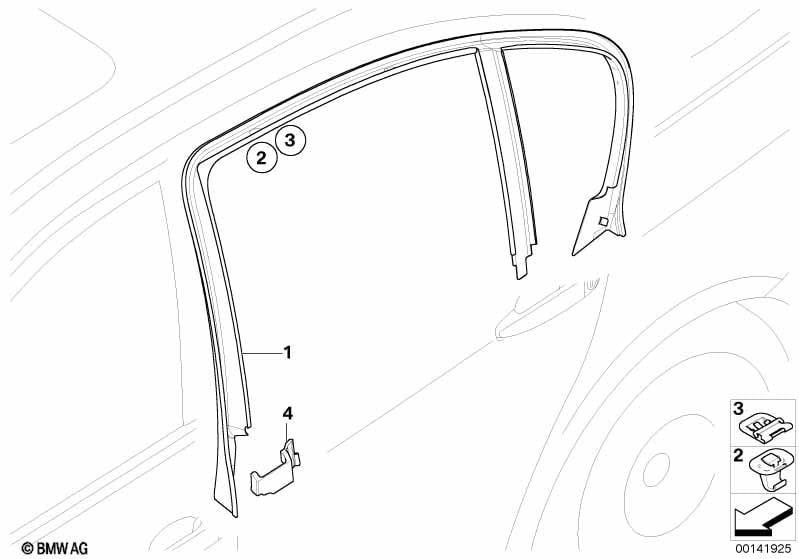

This Trim and seals for door, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover, window frame, door rear left | 1 | 51347060221 | $43.30 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51347060222 | $43.30 | Shop at ECS Tuning | |||||
| For vehicles with Roller sun vizor, rear door |
S417A=Yes |
|||||||||
| 01 | Cover, window frame, door rear left | 1 | 51347120801 | $43.30 | Shop at ECS Tuning | |||||
| 01 | Cover, window frame, door rear right | 1 | 51347120802 | $43.30 | Shop at ECS Tuning | |||||
| 02 | Side window sun blind hook | 2 | 51347120805 | $1.33 | Shop at ECS Tuning | |||||
| 03 | Clamp | 2 | 51347120806 | $0.85 | Shop at ECS Tuning | |||||
| 04 | Foam pad, left | 1 | 51347143183 | $2.78 | Shop at ECS Tuning | |||||
| 04 | Foam pad, right | 1 | 51347143184 | $2.78 | Shop at ECS Tuning | |||||
