Storing partition cover for BMW 3 Series E90 LCI 320d (2011)

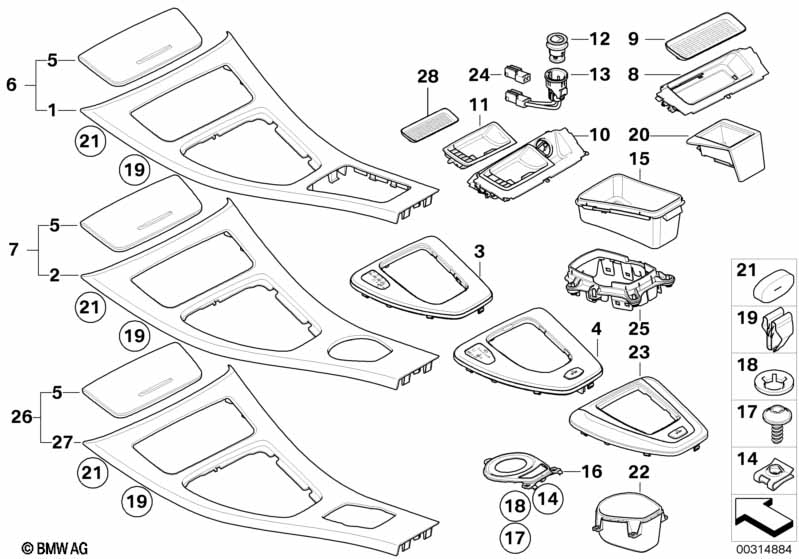

This Storing partition cover technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Cover center console | TITAN 90 | 1 | 51166970136 | $224.32 | +core | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim burr walnut |
S4ABA=Yes |
|||||||||
| 01 | Trim cover center console, walnut, front | NUSSBAUMWURZEL | 1 | 03/2009 | 51166985617 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 01 | Cover centre console, front | SATINSILBER | 1 | 09/2008 | 51169197237 | Shop at ECS Tuning | ||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 01 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2007 | 51169145148 | +core | Shop at ECS Tuning | |||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 01 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 03/2010 | 51169214772 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 01 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145142 | +core | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, platin-bronze metallic |
S4CMA=Yes |
|||||||||
| 01 | Cover center console | PLATINBRONZE | 1 | 03/2010 | 51169214766 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light |
S4A3A=Yes |
|||||||||
| 01 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170921 | Shop at ECS Tuning | ||||
| 02 | Cover center console | TITAN 90 | 1 | 09/2008 | 51169170950 | Shop at ECS Tuning | ||||
| For vehicles with Automatic transmission |
S205A=Yes |
|||||||||
| 03 | Cover, gear selecting lever | SCHWARZ | 1 | 51167155646 | $112.16 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, "satin-silber" matt |
S4CGA=Yes |
|||||||||
| 05 | Cover | SATINSILBER | 1 | 09/2008 | 51169197244 | $12.99 | Shop at ECS Tuning | |||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 05 | Cover, ashtray/tray alu glacier-silber | GLACIER SILBER | 1 | 09/2007 | 51169145153 | $68.76 | Shop at ECS Tuning | |||
| For vehicles with Interior strips, alu, satin-polished |
S4B9A=Yes |
|||||||||
| 05 | Cover | ALU/FEINSCHLIFF | 1 | 51169145152 | $76.17 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and Interior strips, platin-bronze metallic |
S441A=Yes S4CMA=Yes |
|||||||||
| 05 | Covering ashtray | PLATINBRONZE | 1 | 51169214769 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim burr walnut |
S4ABA=Yes |
|||||||||
| 06 | Set of decorative strips, nutwood | 1 | 51167129549 | $457.79 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim poplar grain |
S4ACA=Yes |
|||||||||
| 06 | Set decorative strips, poplar woodgrain | 1 | 51167129554 | $504.43 | +core | Shop at ECS Tuning | ||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 06 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2007 | 51169145148 | +core | Shop at ECS Tuning | |||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite |
S441A=Yes S4BYA=Yes |
|||||||||
| 06 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 03/2010 | 51169214773 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and Smoker package |
S4A3A=Yes S441A=Yes |
|||||||||
| 06 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170876 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim burr walnut and Smoker package |
S4ABA=Yes S441A=Yes |
|||||||||
| 06 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 51169170874 | Shop at ECS Tuning | |||||
| For vehicles with Fine wood trim burr walnut |
S4ABA=Yes |
|||||||||
| 07 | Set of decorative strips, nutwood | 1 | 51167137485 | $504.43 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim poplar grain |
S4ACA=Yes |
|||||||||
| 07 | Set decorative strips, poplar woodgrain | 1 | 51167137479 | $504.43 | +core | Shop at ECS Tuning | ||||
| For vehicles with Int. mouldings aluminium glacier-silver |
S4MGA=Yes |
|||||||||
| 07 | Set of decor finishers | GLACIER SILBER | 1 | 09/2007 | 51169145140 | +core | Shop at ECS Tuning | |||
| 08 | Tray for glasses | 1 | 51167132376 | $22.01 | Shop at ECS Tuning | |||||
| 08 | Oddments tray | 1 | 51169198282 | Shop at ECS Tuning | ||||||
| For vehicles with Fine-wood trim walnut light or Fine wood trim burr walnut or Fine wood version, poplar grain, gray or Interior strips, alu, satin-polished or Real Bamboo wood-grain trim, anthracite or Int. mouldings aluminium glacier-silver or Interior strips alu glacier-silber dark |
S4A3A=Yes S4ABA=Yes S4ASA=Yes S4B9A=Yes S4BYA=Yes S4MGA=Yes S4WAA=Yes |
|||||||||
| 08 | Oddments tray | 1 | 51169198283 | $22.43 | Shop at ECS Tuning | |||||
| only applies to Storage tray, open |
||||||||||
| 09 | Insert | 1 | 51169198284 | +core | Shop at ECS Tuning | |||||
| For vehicles with Smoker package |
S441A=Yes |
|||||||||
| 10 | Ashtray front | 1 | 51167132380 | $81.73 | Shop at ECS Tuning | |||||
| 11 | Ashtray insert | 1 | 51167078573 | $7.58 | Shop at ECS Tuning | |||||
| 12 | Lighter element | 1 | 61349308246 | Shop at ECS Tuning | ||||||
| 13 | Plug-in socket | 1 | 61346946206 | +core | Shop at ECS Tuning | |||||
| 14 | C-clip nut | 4 | 09/2005 | 07146988451 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with On-board monitor with TV and Navigation system Business and Navigation system Professional |
S602A=No S606A=No S609A=No |
|||||||||
| 15 | Oddments tray | 1 | 51167118040 | $21.99 | Shop at ECS Tuning | |||||
| For vehicles with On-board monitor with TV or Navigation system Business or Navigation system Professional |
S602A=Yes S606A=Yes S609A=Yes |
|||||||||
| 16 | Cover, central operating unit | SCHWARZ | 1 | 51167155634 | $7.00 | Shop at ECS Tuning | ||||
| 17 | Fillister head screw | 4X12MM | 4 | 07147122390 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Fillister head self-tapping screw | 4 | 07147133553 | $0.16 | Shop at ECS Tuning | |||||
| 18 | Circlip | D=4MM | 1 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 19 | Clamp | 8 | 07147321144 | Shop at ECS Tuning | ||||||
| 21 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 24 | Pin terminal | 3 POL. WEISS | 1 | 61131378113 | $1.58 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Circular contact 2.5 | 0,5-1,0MM² | 2 | 61131376191 | $0.55 | Shop at ECS Tuning | ||||
| 25 | Frame | 1 | 51169170918 | Shop at ECS Tuning | ||||||
| For vehicles with Fine-wood trim walnut light and On-board monitor with TV and Navigation system Business and Navigation system Professional and Smoker package |
S4A3A=Yes S602A=Yes S606A=No S609A=No S441A=Yes |
|||||||||
| 26 | Set of decorative strips, nutwood | NUSSBAUM HELL | 1 | 09/2008 | 51169170896 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim burr walnut and On-board monitor with TV and Navigation system Business and Navigation system Professional and Smoker package |
S4ABA=Yes S602A=Yes S606A=No S609A=No S441A=Yes |
|||||||||
| 26 | Set of decorative strips, nutwood | NUSSBAUMWURZEL | 1 | 09/2008 | 51169170900 | Shop at ECS Tuning | ||||
| For vehicles with Smoker package and Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S441A=Yes S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 26 | Set, decor strips, bamboo, grain pattern | ANTHRAZIT | 1 | 03/2010 | 51169214776 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, alu, satin-polished and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4B9A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Cover center console | ALU/FEINSCHLIFF | 1 | 51169145144 | +core | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim burr walnut and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4ABA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Trim cover center console, walnut, front | NUSSBAUMWURZEL | 1 | 03/2009 | 51169170936 | Shop at ECS Tuning | ||||
| For vehicles with Real Bamboo wood-grain trim, anthracite and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4BYA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Trim, center console, bamboo, grained | ANTHRAZIT | 1 | 03/2010 | 51169214777 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4ATA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Cover center console | DIAMANTSCHWARZ | 1 | 02/2009 | 51169170933 | Shop at ECS Tuning | ||||
| For vehicles with Interior strips, platin-bronze metallic and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4CMA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Cover center console | PLATINBRONZE | 1 | 03/2010 | 51169214768 | Shop at ECS Tuning | ||||
| For vehicles with Int. mouldings aluminium glacier-silver and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4MGA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Trim, center console, aluminum, front | GLACIERSILBER | 1 | 09/2008 | 51167900370 | +core | Shop at ECS Tuning | |||
| For vehicles with Interior strips, "satin-silber" matt and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4CGA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Cover centre console, front | SATINSILBER | 1 | 09/2008 | 51169197239 | Shop at ECS Tuning | ||||
| For vehicles with Fine-wood trim walnut light and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4A3A=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 27 | Trim cover center console, walnut, front | NUSSBAUM HELL | 1 | 03/2009 | 51169170939 | Shop at ECS Tuning | ||||
| 28 | Insert | 1 | 51167118065 | $5.03 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
