Door window lifting mechanism front for BMW 3 Series E90 320d (2008)

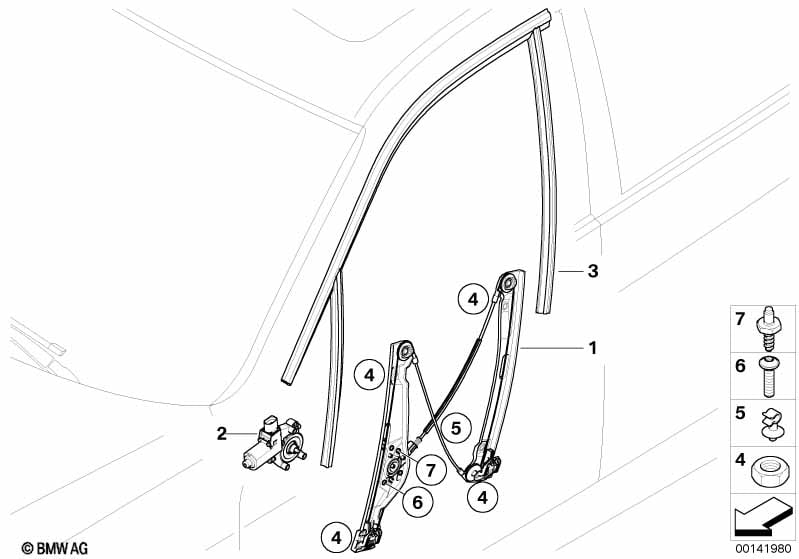

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter, electric, front left | 1 | 51337140587 | $134.25 | Shop at ECS Tuning | |||||
| 01 | Window lifter, electric, front right | 1 | 51337140588 | $134.25 | Shop at ECS Tuning | |||||
| 02 | Drive for window lifter, front left | 1 | 67626927027 | $147.05 | Shop at ECS Tuning | |||||
| 02 | Drive for window lifter, front right | 1 | 67626927028 | $147.05 | Shop at ECS Tuning | |||||
| 03 | Window guide, left front door | 1 | 51337060241 | $69.20 | Shop at ECS Tuning | |||||
| 03 | Window guide, right front door | 1 | 51337060242 | $69.20 | Shop at ECS Tuning | |||||
| 04 | Hex nut | M6 | 5 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 05 | Clip | 1 | 07147078459 | $1.72 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw | 3 | 07147208453 | $2.16 | Shop at ECS Tuning | |||||
| 07 | Threaded bolt | 1 | 07146955339 | $1.00 | Shop at ECS Tuning |
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Door window lifting mechanism front?
- This technical diagram illustrates the Door window lifting mechanism front within the Vehicle trim group for the 3 Series E90 320d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Window lifter, electric, front left (Part #51337140587).
- Which models use the hardware listed in this Door window lifting mechanism front?
- The hardware and components featured in the Door window lifting mechanism front are specific to the 3 Series E90 320d produced during 2008. These technical specifications ensure that parts like the Window lifter, electric, front left (51337140587) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door window lifting mechanism front assembly?
- Each item in the Door window lifting mechanism front corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Window lifter, electric, front left by locating its position on the schematic, which then links to the official BMW part number 51337140587 for the Vehicle trim section.
