Door window lifting mechanism rear for BMW 3 Series E90 320d (2008)

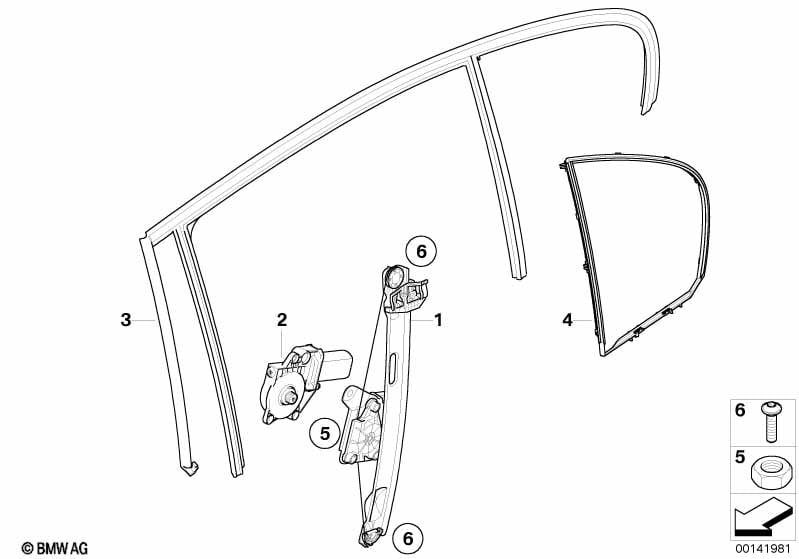

This Door window lifting mechanism rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter rear left | 1 | 51357140589 | $87.27 | Shop at ECS Tuning | |||||
| 01 | Window lifter rear right | 1 | 51357140590 | $87.27 | Shop at ECS Tuning | |||||
| 02 | Drive, window lifter, rear left | 1 | 67626927025 | $147.05 | Shop at ECS Tuning | |||||
| 02 | Drive, window lifter, rear right | 1 | 67626927026 | $147.05 | Shop at ECS Tuning | |||||
| 03 | Window guide, left rear door | 1 | 51347060257 | $68.11 | Shop at ECS Tuning | |||||
| 03 | Window guide, right rear door | 1 | 51347060258 | $68.11 | Shop at ECS Tuning | |||||
| 04 | seal, rear left side window | 1 | 51347060219 | $13.33 | Shop at ECS Tuning | |||||
| 04 | seal, rear right side window | 1 | 51347060220 | $13.33 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6 | 6 | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | 3 | 07147208453 | $2.16 | Shop at ECS Tuning |
