Exterior trim / Grille / Seals for BMW 3 Series E90 LCI 320i (2011)

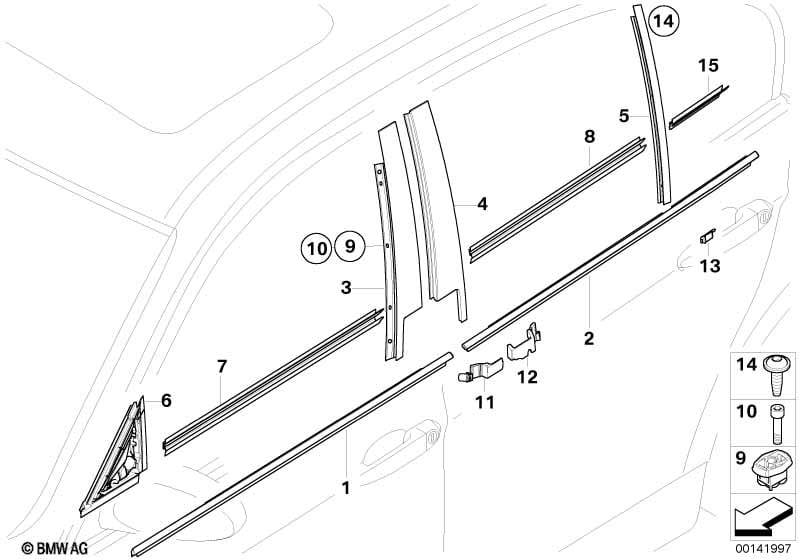

This Exterior trim / Grille / Seals technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Channel cover,exterior,door, front left | SCHWARZ MATT | 1 | 51337060235 | $23.95 | Shop at ECS Tuning | ||||
| 01 | Channel cover,exterior,door, front right | SCHWARZ MATT | 1 | 51337060236 | $23.95 | Shop at ECS Tuning | ||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 01 | Channel cover,exterior,door, front left | CHROM | 1 | 03/2009 | 51337119981 | $50.47 | Shop at ECS Tuning | |||
| 01 | Channel cover,exterior,door, front right | CHROM | 1 | 03/2009 | 51337119982 | $49.37 | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 51337220187 | $50.47 | Shop at ECS Tuning | ||||
| 01 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 51337220188 | $50.47 | Shop at ECS Tuning | ||||
| 02 | Outer weatherstrip, rear left door | 1 | 51347060249 | $39.33 | Shop at ECS Tuning | |||||
| 02 | Window well strip, outer, door, rear rgt | 1 | 51357060250 | $39.33 | Shop at ECS Tuning | |||||
| For vehicles with Chrome Line exterieur |
S346A=Yes |
|||||||||
| 02 | Outer weatherstrip, rear left door | CHROM | 1 | 03/2009 | 51357119215 | $49.37 | Shop at ECS Tuning | |||
| 02 | Window well strip, outer, door, rear rgt | CHROM | 1 | 03/2009 | 51357119216 | $50.47 | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Window well strip, outer, door, rear rgt | GLANZSCHWARZ | 1 | 51357220190 | $51.42 | Shop at ECS Tuning | ||||
| 02 | Outer weatherstrip, rear left door | GLANZSCHWARZ | 1 | 09/2005 | 51357220189 | $51.42 | Shop at ECS Tuning | |||
| For vehicles with Lifestyle Edition |
P7MDA=Yes |
|||||||||
| 02 | Outer weatherstrip, rear left door | CHROM | 1 | 51357119215 | $49.37 | Shop at ECS Tuning | ||||
| 02 | Window well strip, outer, door, rear rgt | CHROM | 1 | 51357119216 | $50.47 | Shop at ECS Tuning | ||||
| 03 | Finisher window frame B-pillar FL door | 1 | 51337060239 | $20.83 | Shop at ECS Tuning | |||||
| 03 | Finisher window frame B-pillar FR door | 1 | 51337060240 | $20.83 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Finisher window frame B-pillar FL door | GLANZSCHWARZ | 1 | 51337906907 | $37.14 | Shop at ECS Tuning | ||||
| 03 | Finisher window frame B-pillar FR door | GLANZSCHWARZ | 1 | 51337906908 | $37.14 | Shop at ECS Tuning | ||||
| 04 | Finisher window frame B-pillar RL door | 1 | 51347060253 | $31.52 | Shop at ECS Tuning | |||||
| 04 | Finisher window frame B-pillar RR door | 1 | 51347060254 | $31.52 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 04 | Finisher window frame B-pillar RL door | GLANZSCHWARZ | 1 | 51357906909 | $37.47 | Shop at ECS Tuning | ||||
| 04 | Finisher window frame B-pillar RR door | GLANZSCHWARZ | 1 | 51357906910 | $37.47 | Shop at ECS Tuning | ||||
| 05 | Window guide web cover left | 1 | 51347060255 | $35.02 | Shop at ECS Tuning | |||||
| 05 | Window guide web cover right | 1 | 51357060256 | $35.02 | Shop at ECS Tuning | |||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 05 | Window guide web cover left | 1 | 51357906913 | $40.88 | Shop at ECS Tuning | |||||
| 05 | Window guide web cover right | 1 | 51357906914 | $40.88 | Shop at ECS Tuning | |||||
| 06 | Seal, outer left mirror triangle | 1 | 51337139347 | $14.08 | Shop at ECS Tuning | |||||
| 06 | Seal, outer right mirror triangle | 1 | 51337139348 | $14.08 | Shop at ECS Tuning | |||||
| 07 | Channel sealing,inside,door, front left | 1 | 51337060233 | $20.05 | Shop at ECS Tuning | |||||
| 07 | Channel sealing,inside,door, front right | 1 | 51337060234 | $20.05 | Shop at ECS Tuning | |||||
| 08 | Inner weatherstrip, rear left door | 1 | 51347060247 | $18.75 | Shop at ECS Tuning | |||||
| 08 | Inner weatherstrip, rear right door | 1 | 51347060248 | $18.75 | Shop at ECS Tuning | |||||
| 09 | Clip, cover for column B | X | 51337162282 | $0.29 | Shop at ECS Tuning | |||||
| 10 | Fillister-head screw | X | 07146964260 | $0.17 | Shop at ECS Tuning | |||||
| 11 | Sealing, cover, column B left | 1 | 51337143181 | $2.60 | Shop at ECS Tuning | |||||
| 11 | Sealing, cover, column B right | 1 | 51337143182 | $2.60 | Shop at ECS Tuning | |||||
| 12 | Foam pad, left | 1 | 51347143183 | $2.78 | Shop at ECS Tuning | |||||
| 12 | Foam pad, right | 1 | 51347143184 | $2.78 | Shop at ECS Tuning | |||||
| 13 | Foam pad, left | 1 | 51347143185 | $2.02 | Shop at ECS Tuning | |||||
| 13 | Foam pad, right | 1 | 51347143186 | $2.02 | Shop at ECS Tuning | |||||
| 14 | Fillister head screw | 3 | 07149140365 | $0.25 | Shop at ECS Tuning | |||||
| 15 | Sealing strip, right | 1 | 51337136140 | $5.90 | Shop at ECS Tuning | |||||
| 15 | Sealing strip, left | 1 | 51357136139 | $5.90 | Shop at ECS Tuning | |||||
