Exterior trim / Grille / Seals for BMW 3 Series E90 LCI 335xi (2010)

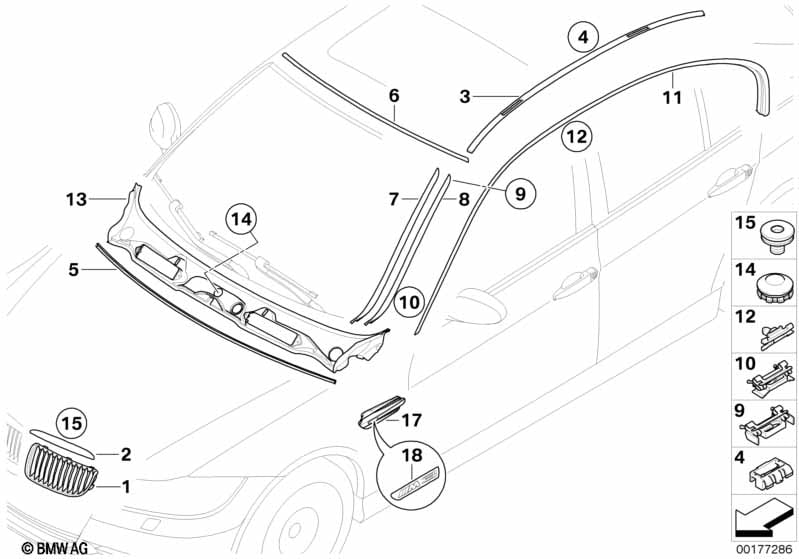

This Exterior trim / Grille / Seals technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 335xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille w chrome frame, left | 1 | 09/2008 | 51137201967 | $59.34 | Shop at ECS Tuning | ||||
| 01 | Grille w chrome frame, right | 1 | 09/2008 | 51137201968 | $59.34 | Shop at ECS Tuning | ||||
| 01 | Grille left | CHROM | 1 | 09/2008 | 51137201969 | $59.34 | Shop at ECS Tuning | |||
| 01 | Grille right | CHROM | 1 | 09/2008 | 51137201970 | $59.34 | Shop at ECS Tuning | |||
| 03 | Roof molding prime-coated left | 1 | 51137124253 | $76.63 | Shop at ECS Tuning | |||||
| 03 | Roof molding prime-coated right | 1 | 51137124254 | $76.63 | Shop at ECS Tuning | |||||
| 04 | Clip | SCHWARZ | X | 51137077127 | $0.61 | Shop at ECS Tuning | ||||
| 05 | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| 06 | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 07 | Painted drip moulding, left | CODE - UNI/MET. | 1 | 03/2010 | 51130034043 | $167.92 | ENDED | Shop at ECS Tuning | ||
| 07 | Painted drip moulding, right | CODE - UNI/MET. | 1 | 03/2010 | 51130034044 | $167.92 | ENDED | Shop at ECS Tuning | ||
| WITHOUT GASKET |
||||||||||
| 07 | Primed drip moulding, left | 1 | 03/2010 | 51137184001 | $48.00 | Shop at ECS Tuning | ||||
| 07 | Primed drip moulding, right | 1 | 03/2010 | 51137184002 | $48.00 | ENDED | Shop at ECS Tuning | |||
| 08 | Gasket left | 1 | 51137184005 | $17.88 | Shop at ECS Tuning | |||||
| 08 | Gasket right | 1 | 51137184006 | $17.88 | Shop at ECS Tuning | |||||
| 09 | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| 10 | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137121235 | $175.52 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137121236 | $175.52 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 11 | Trim strip, side frame, left | GLANZSCHWARZ | 1 | 51137220197 | $246.25 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | GLANZSCHWARZ | 1 | 51357220198 | $246.25 | Shop at ECS Tuning | ||||
| 12 | Clip, moulding, side frame | X | 51137117240 | $0.69 | Shop at ECS Tuning | |||||
| 13 | Cover, windshield | 1 | 51717180743 | $31.88 | Shop at ECS Tuning | |||||
| 14 | Cover | D = 38MM | 1 | 05/2006 | 51717169481 | $3.05 | Shop at ECS Tuning | |||
| 15 | Fillister head screw | 6 | 07146960166 | $0.65 | Shop at ECS Tuning | |||||
