Trim cover, rear lateral for BMW 7 Series E67 760LiS (2008)

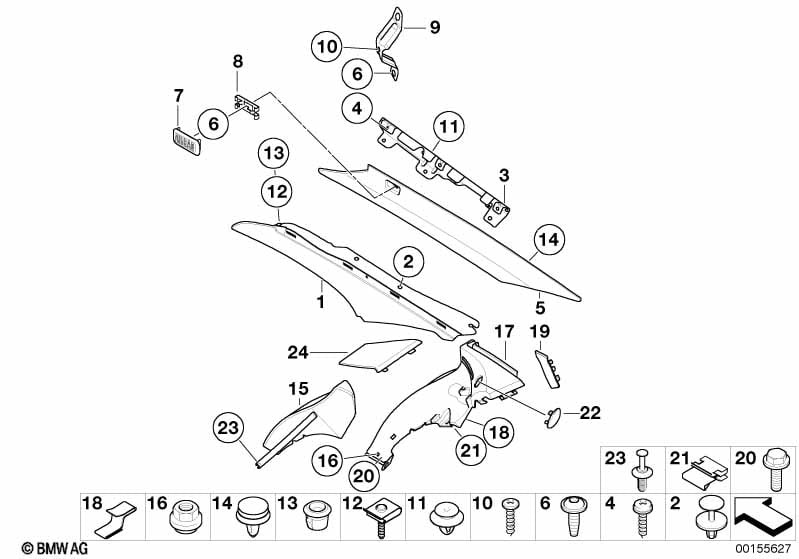

This Trim cover, rear lateral technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 760LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Nasca" Alcantara artificial leather |
U6=Yes |
|||||||||
| 01 | Trim panel C-column, front left | BEIGE | 1 | 03/2005 | 51437065497 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel C-column, front right | BEIGE | 1 | 03/2005 | 51437065498 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel C-column, front left | STEINGRAU | 1 | 03/2005 | 51437068837 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel C-column, front right | STEINGRAU | 1 | 03/2005 | 51437068838 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/cream-beige or Leather "Nasca"/lava-blau Alcantara artificial leather |
U6GE=Yes U6MC=Yes |
|||||||||
| 01 | Trim panel C-column, front left | ANTHRAZIT | 1 | 03/2005 | 51437163419 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Trim panel C-column, front right | ANTHRAZIT | 1 | 03/2005 | 51437163420 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Expanding rivet | 6 | 03/2005 | 51481938725 | $0.37 | Shop at ECS Tuning | ||||
| 03 | Left trim panel bracket | 1 | 03/2005 | 51437060909 | ENDED, +core | Shop at ECS Tuning | ||||
| 03 | Right trim panel bracket | 1 | 03/2005 | 51437060910 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca" Alcantara artificial leather |
U6=Yes |
|||||||||
| 05 | Trim panel C-column, rear left | BEIGE | 1 | 03/2005 | 51437065505 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Trim panel C-column, rear right | BEIGE | 1 | 03/2005 | 51437065506 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Trim panel C-column, rear left | STEINGRAU | 1 | 03/2005 | 51437068825 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Trim panel C-column, rear right | STEINGRAU | 1 | 03/2005 | 51437068826 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/cream-beige or Leather "Nasca"/lava-blau Alcantara artificial leather |
U6GE=Yes U6MC=Yes |
|||||||||
| 05 | Trim panel C-column, rear left | ANTHRAZIT | 1 | 03/2005 | 51437163409 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Trim panel C-column, rear right | ANTHRAZIT | 1 | 03/2005 | 51437163410 | ENDED, +core | Shop at ECS Tuning | |||
| 06 | Fillister head screw with collar | M5X16MM | 4 | 03/2005 | 07149158182 | $0.25 | Shop at ECS Tuning | |||
| For vehicles with Side airbags for rear passengers |
S261A=Yes |
|||||||||
| 07 | Covering cap ITS | BEIGE | 2 | 03/2005 | 51437029270 | $1.67 | Shop at ECS Tuning | |||
| 07 | Cover cap f windshield frame cover - ITS | STEINGRAU | 2 | 03/2005 | 51437029271 | $1.67 | Shop at ECS Tuning | |||
| 08 | Cover cap support | 2 | 03/2005 | 51437006830 | $0.64 | Shop at ECS Tuning | ||||
| 12 | Clamping bolt | 4 | 03/2005 | 51711933719 | $1.94 | Shop at ECS Tuning | ||||
| 13 | Grommet | 4 | 03/2005 | 51131934160 | $0.32 | Shop at ECS Tuning | ||||
| 14 | Clip | 12 | 03/2005 | 51438189311 | $0.55 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca"/beige |
U6BA=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | BEIGE | 1 | 12/2006 | 51439133201 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | BEIGE | 1 | 12/2006 | 51439133202 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/lava-blau |
U6MC=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | LAVABLAU | 1 | 12/2006 | 51439133209 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | LAVABLAU | 1 | 12/2006 | 51439133210 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/flanell-grau |
U6FA=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | FLANELLGRAU | 1 | 12/2006 | 51439133199 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | FLANELLGRAU | 1 | 12/2006 | 51439133200 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather, "Nasca"/natur-braun/black |
U6NB=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | NATURBRAUN | 1 | 12/2006 | 51439133205 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | NATURBRAUN | 1 | 12/2006 | 51439133206 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/black |
U6SW=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | SCHWARZ | 1 | 12/2006 | 51439133197 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | SCHWARZ | 1 | 12/2006 | 51439133198 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Nasca"/cream-beige |
U6GE=Yes |
|||||||||
| 15 | Addition.cover, column C, bottom left | CREMBEIGE | 1 | 12/2006 | 51439133207 | ENDED, +core | Shop at ECS Tuning | |||
| 15 | Addition.cover, column C, bottom right | CREMBEIGE | 1 | 12/2006 | 51439133208 | ENDED, +core | Shop at ECS Tuning | |||
| 16 | Hex nut | 2 | 03/2005 | 61352694959 | $0.77 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca"/black |
U6SW=Yes |
|||||||||
| 17 | Trim, C-pillar, leather, lower left | SCHWARZ | 1 | 51437069251 | ENDED | Shop at ECS Tuning | ||||
| 17 | Trim, C-pillar, leather, lower right | SCHWARZ | 1 | 51437069252 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Air conditioning for rear with cool box and Leather "Nasca"/beige |
S523A=Yes U6BA=Yes |
|||||||||
| 17 | Cover, column C, bottom left | BEIGE | 1 | 03/2005 | 51437036059 | $77.02 | ENDED, +core | Shop at ECS Tuning | ||
| 17 | Cover, column C, bottom right | BEIGE | 1 | 03/2005 | 51437036060 | $77.02 | +core | Shop at ECS Tuning | ||
| For vehicles with Air conditioning for rear with cool box and Fabric "New Mind"/flanell-grau or Leather "Nasca"/flanell-grau or Leather, Pearl/flannel-grey |
S523A=Yes H5FA=Yes U6FA=Yes V7FA=Yes |
|||||||||
| 17 | Cover, column C, bottom left | FLANELLGRAU | 1 | 03/2005 | 51437010975 | $77.02 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Air conditioning for rear with cool box and Fabric "New Mind"/anthracite or Leather "Nasca"/black or Leather, Pearl/black |
S523A=Yes H5AT=Yes U6SW=Yes V7SW=Yes |
|||||||||
| 17 | Cover, column C, bottom left | SCHWARZ | 1 | 03/2005 | 51437010971 | $77.02 | ENDED, +core | Shop at ECS Tuning | ||
| 17 | Cover, column C, bottom right | SCHWARZ | 1 | 03/2005 | 51437010972 | $77.02 | +core | Shop at ECS Tuning | ||
| 18 | Fixing clamp, cover | 6 | 03/2005 | 51439143451 | $0.58 | Shop at ECS Tuning | ||||
| For vehicles with Leather "Nasca"/lava-blau or Leather "Pearl"/lava-blau |
U6MC=Yes V7MC=Yes |
|||||||||
| 19 | Cover, belt outlet, left | LAVABLAU | 1 | 03/2005 | 51437152591 | ENDED | Shop at ECS Tuning | |||
| 19 | Cover, belt outlet, right | LAVABLAU | 1 | 03/2005 | 51437152592 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "New Mind" or Leather "Nasca" |
H5=Yes U6=Yes |
|||||||||
| 19 | Cover, belt outlet, left | SCHWARZ | 1 | 03/2005 | 51437043689 | $5.30 | ENDED | Shop at ECS Tuning | ||
| 19 | Cover, belt outlet, right | SCHWARZ | 1 | 03/2005 | 51437043690 | $5.30 | ENDED | Shop at ECS Tuning | ||
| 20 | Hex bolt | M5X14-8.8-ZNNIV | 2 | 03/2005 | 07119904269 | $0.36 | Shop at ECS Tuning | |||
| 21 | Clamp | 6 | 03/2005 | 07147654321 | $0.17 | Shop at ECS Tuning | ||||
| 22 | Cover, C-pillar lighting, left | SCHWARZ | 1 | 63316914249 | $8.47 | Shop at ECS Tuning | ||||
| 22 | Cover, C-pillar lighting, right | SCHWARZ | 1 | 63316914250 | $8.70 | Shop at ECS Tuning | ||||
| 22 | Cover, C-pillar lighting, left | BEIGE | 1 | 63316914253 | $8.47 | Shop at ECS Tuning | ||||
| 22 | Cover, C-pillar lighting, right | BEIGE | 1 | 63316914254 | $8.47 | Shop at ECS Tuning | ||||
| 23 | Expanding rivet | D = 6MM | 2 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
