Door trim panel rear / Side airbag for BMW 3 Series E46 325i (2001)

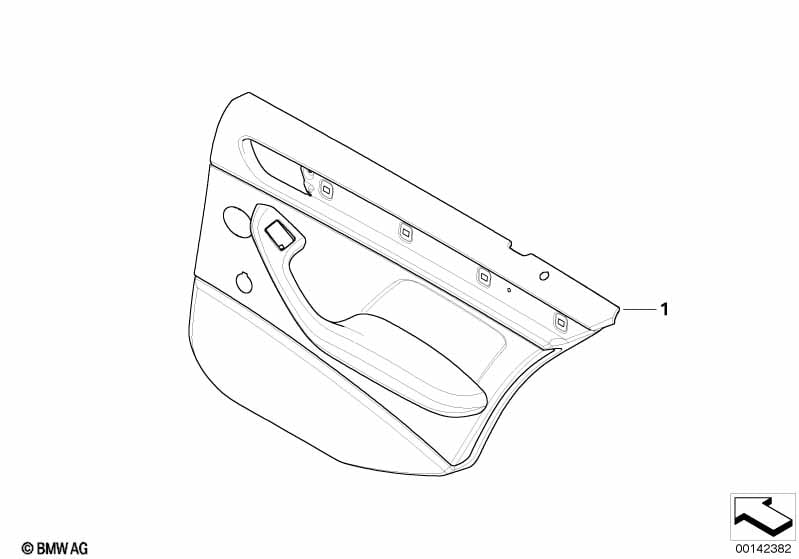

This Door trim panel rear / Side airbag technical drawing provides a detailed breakdown of the assembly for the 3 Series E46 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2001.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Safety vehicle and Side airbags for rear passengers |
S106A=Yes S261A=Yes |
||||||||
| 01 | Door lining leather rear left | HELLBEIGE | 1 | 51427031877 | $827.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | HELLBEIGE | 1 | 51427031878 | $827.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | SCHWARZ | 1 | 51427031881 | $827.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | SCHWARZ | 1 | 51427031882 | $827.33 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear left | GRAU | 1 | 51427031885 | $853.74 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | GRAU | 1 | 51427031886 | $853.74 | ENDED, +core | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E46 325i Door trim panel rear / Side airbag?
- This technical diagram illustrates the Door trim panel rear / Side airbag within the Vehicle trim group for the 3 Series E46 325i produced during 2001. It provides a detailed exploded view of the components, identifying key parts such as the Door lining leather rear left (Part #51427031877).
- Which models use the hardware listed in this Door trim panel rear / Side airbag?
- The hardware and components featured in the Door trim panel rear / Side airbag are specific to the 3 Series E46 325i produced during 2001. These technical specifications ensure that parts like the Door lining leather rear left (51427031877) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim panel rear / Side airbag assembly?
- Each item in the Door trim panel rear / Side airbag corresponds to the numbered list below the illustration. For the 3 Series E46 325i, you can identify the Door lining leather rear left by locating its position on the schematic, which then links to the official BMW part number 51427031877 for the Vehicle trim section.
