Sticker Police, Fire-brigade, Paramedic for BMW 5 Series E61 LCI 520d (2010)

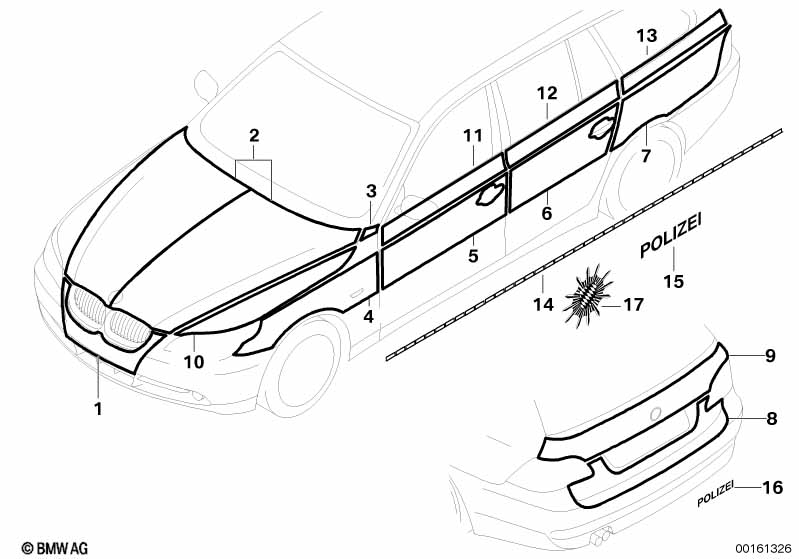

This Sticker Police, Fire-brigade, Paramedic technical drawing provides a detailed breakdown of the assembly for the 5 Series E61 LCI 520d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Adhesive film, bumper front | BLAU | 1 | 03/2007 | 51147238221 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 01 | Adhesive film, bumper front | LEUCHTROT | 1 | 03/2007 | 51147120441 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 01 | Adhesive film, bumper front | MINZGRÜN | 1 | 03/2007 | 51147122935 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and Official vehicles |
S508A=Yes =Yes |
|||||||||
| 01 | Adhesive film, bumper front | LEUCHTROT | 1 | 03/2007 | 51147120442 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 01 | Adhesive film, bumper front | MINZGRÜN-HELL | 1 | 03/2007 | 51147122702 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Park Distance Control (PDC) and Official vehicles |
S113A=Yes S508A=Yes =Yes |
|||||||||
| 01 | Adhesive film, bumper front | MINZGRÜN-HELL | 1 | 03/2007 | 51147122934 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland and Park Distance Control (PDC) and Official vehicles |
S114A=Yes S508A=Yes =Yes |
|||||||||
| 01 | Adhesive film, bumper front | MINZGRÜN | 1 | 03/2007 | 51147122936 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 02 | Adhesive film hood center left | LEUCHTROT | 1 | 51147134767 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive film hood center right | LEUCHTROT | 1 | 51147134768 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive film hood center left | BLAU | 1 | 51147135077 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive film hood center right | BLAU | 1 | 51147135078 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 02 | Adhesive film hood center left | MINZGRÜN | 1 | 51147134821 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive film hood center right | MINZGRÜN | 1 | 51147134822 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 02 | Adhesive film hood center left | MINZGRÜN-HELL | 1 | 51147134801 | ENDED | Shop at ECS Tuning | ||||
| 02 | Adhesive film hood center right | MINZGRÜN-HELL | 1 | 51147134802 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 03 | Adhes.film f side panel,front top left | LEUCHTROT | 1 | 51147134769 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhes.film f side panel,front top rght | LEUCHTROT | 1 | 51147134770 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhes.film f side panel,front top left | BLAU | 1 | 51147135079 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhes.film f side panel,front top rght | BLAU | 1 | 51147135080 | ENDED, NoS | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 03 | Adhes.film f side panel,front top left | MINZGRÜN | 1 | 51147134823 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhes.film f side panel,front top rght | MINZGRÜN | 1 | 51147134824 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 03 | Adhes.film f side panel,front top left | MINZGRÜN-HELL | 1 | 51147134803 | ENDED | Shop at ECS Tuning | ||||
| 03 | Adhes.film f side panel,front top rght | MINZGRÜN-HELL | 1 | 51147134804 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 04 | Adhes.film f side panel,front centr left | LEUCHTROT | 1 | 51147134793 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhes.film f side panel,front centr rght | LEUCHTROT | 1 | 51147134794 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhes.film f side panel,front centr left | BLAU | 1 | 51147135081 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhes.film f side panel,front centr rght | BLAU | 1 | 51147135082 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 04 | Adhes.film f side panel,front centr left | MINZGRÜN | 1 | 51147134825 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhes.film f side panel,front centr rght | MINZGRÜN | 1 | 51147134826 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 04 | Adhes.film f side panel,front centr left | MINZGRÜN-HELL | 1 | 51147134805 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhes.film f side panel,front centr rght | MINZGRÜN-HELL | 1 | 51147134806 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 05 | Adhesive film, door, front center left | LEUCHTROT | 1 | 51147134795 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front center right | LEUCHTROT | 1 | 51147134796 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front center left | BLAU | 1 | 51147135083 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front center right | BLAU | 1 | 51147135084 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 05 | Adhesive film, door, front center left | MINZGRÜN | 1 | 51147134827 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front center right | MINZGRÜN | 1 | 51147134828 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 05 | Adhesive film, door, front center left | MINZGRÜN-HELL | 1 | 51147134807 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front center right | MINZGRÜN-HELL | 1 | 51147134808 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 06 | Adhesive film, door, rear center left | LEUCHTROT | 1 | 51147134797 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door, rear center right | LEUCHTROT | 1 | 51147134798 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door, rear center left | BLAU | 1 | 51147135085 | ENDED, NoS | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door, rear center right | BLAU | 1 | 51147135086 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 06 | Adhesive film, door, rear center left | MINZGRÜN | 1 | 51147134829 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door, rear center right | MINZGRÜN | 1 | 51147134830 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 06 | Adhesive film, door, rear center left | MINZGRÜN-HELL | 1 | 51147134809 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door, rear center right | MINZGRÜN-HELL | 1 | 51147134810 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 07 | Adhesive film f side panel, left | LEUCHTROT | 1 | 51147135053 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | LEUCHTROT | 1 | 51147135054 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, left | BLAU | 1 | 51147135087 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | BLAU | 1 | 51147135088 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 07 | Adhesive film f side panel, left | MINZGRÜN | 1 | 51147135061 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | MINZGRÜN | 1 | 51147135062 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 07 | Adhesive film f side panel, left | MINZGRÜN-HELL | 1 | 51147135067 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | MINZGRÜN-HELL | 1 | 51147135068 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 08 | Adhesive film f trunk lid, bottom | LEUCHTROT | 1 | 03/2007 | 51147123015 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 08 | Adhesive film f trunk lid, bottom | MINZGRÜN | 1 | 03/2007 | 51147123214 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 08 | Adhesive film f trunk lid, bottom | MINZGRÜN-HELL | 1 | 03/2007 | 51147123783 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 09 | Adhesive film f trunk lid, top | LEUCHTROT | 1 | 03/2007 | 51147123016 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland and Official vehicles |
S114A=Yes =Yes |
|||||||||
| 09 | Adhesive film f trunk lid, top | MINZGRÜN | 1 | 03/2007 | 51147123479 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell and Official vehicles |
S113A=Yes =Yes |
|||||||||
| 09 | Adhesive film f trunk lid, top | MINZGRÜN-HELL | 1 | 03/2007 | 51147123784 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 10 | Adhesive film, hood left | LEUCHTROT | 1 | 51147134765 | ENDED | Shop at ECS Tuning | ||||
| 10 | Adhesive film, hood right | LEUCHTROT | 1 | 51147134766 | ENDED | Shop at ECS Tuning | ||||
| 11 | Adhesive film, door , front top left | LEUCHTROT | 1 | 51147134773 | ENDED | Shop at ECS Tuning | ||||
| 11 | Adhesive film, door , front top right | LEUCHTROT | 1 | 51147134774 | ENDED | Shop at ECS Tuning | ||||
| 12 | Adhesive film, door , rear top left | LEUCHTROT | 1 | 51147134777 | ENDED | Shop at ECS Tuning | ||||
| 12 | Adhesive film, door , rear top right | LEUCHTROT | 1 | 51147134778 | ENDED | Shop at ECS Tuning | ||||
| 13 | Adhesive film side panel rear upper left | LEUCHTROT | 1 | 51147135051 | ENDED | Shop at ECS Tuning | ||||
| 13 | Adhesive film, sidewall, rear top right | LEUCHTROT | 1 | 51147135052 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Official vehicles |
=Yes |
|||||||||
| 14 | Adhesive film reflecting strip, silver | 1 | 51147125107 | ENDED | Shop at ECS Tuning | |||||
| 15 | Adhesive film, Police, silver | H = 150MM | 1 | 51147126273 | ENDED | Shop at ECS Tuning | ||||
| 15 | Adhesive film, police, black | H = 150MM | 1 | 51147274403 | Shop at ECS Tuning | |||||
| 16 | Adhesive film, Police, silver | H = 72MM | 1 | 51147133207 | ENDED | Shop at ECS Tuning | ||||
| 16 | Adhesive film, police, black | H = 72MM | 1 | 51147274404 | Shop at ECS Tuning | |||||
| 17 | Adhesive film Police-star | BAYERN | 1 | 51147079591 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- NoS = No Stock (Part centrally not stocked)
