Fine wood trim american nutwood for BMW 7 Series E66 740Li (2008)

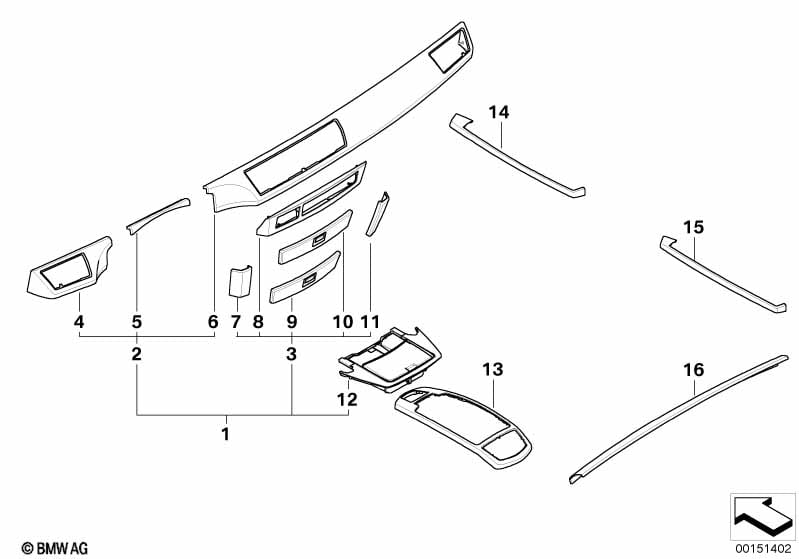

This Fine wood trim american nutwood technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Fine wood trim american nutwood |
S4AHA=Yes |
||||||||
| 01 | Set of wood covers | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148712 | $1384.87 | ENDED | Shop at ECS Tuning | ||
| 02 | Set of wood panels, instrument panel | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457149287 | ENDED | Shop at ECS Tuning | |||
| 03 | Set of wood covers | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457149297 | ENDED | Shop at ECS Tuning | |||
| 04 | Wood panel, instrument panel, left | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148737 | $257.93 | ENDED | Shop at ECS Tuning | ||
| 05 | Wood panel, instrument panel, center | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148741 | $133.42 | ENDED | Shop at ECS Tuning | ||
| 06 | Wood panel, instrument panel, right | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148738 | $429.84 | ENDED | Shop at ECS Tuning | ||
| 07 | Wood panel, module carrier, left | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148747 | $51.21 | ENDED | Shop at ECS Tuning | ||
| 08 | Wood panel, radio | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457142109 | $161.94 | ENDED | Shop at ECS Tuning | ||
| 09 | Wood panel, drawer | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457142111 | $112.99 | ENDED | Shop at ECS Tuning | ||
| 10 | Wood trim, draw, telephone | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457142110 | $112.99 | Shop at ECS Tuning | |||
| 11 | Wood panel, module carrier, right | NUSSB.AMERIKAN. | 1 | 03/2005 | 51457148748 | $51.21 | ENDED | Shop at ECS Tuning | ||
| 12 | Module carrier, center console, wood | NUSSB.AMERIKAN. | 1 | 03/2005 | 51167148746 | $398.27 | ENDED | Shop at ECS Tuning | ||
| 13 | Wood panel, center armrest, front | NUSSB.AMERIKAN. | 1 | 03/2005 | 51167152116 | $430.50 | Shop at ECS Tuning | |||
| 14 | Wooden strip, door front left | NUSSB.AMERIKAN. | 1 | 03/2005 | 51417149981 | $281.98 | ENDED | Shop at ECS Tuning | ||
| 14 | Wooden strip, door front right | NUSSB.AMERIKAN. | 1 | 03/2005 | 51417149982 | $286.22 | ENDED | Shop at ECS Tuning | ||
| 15 | Wooden strip, door rear left | NUSSB.AMERIKAN. | 1 | 03/2005 | 51427149985 | $281.98 | ENDED | Shop at ECS Tuning | ||
| 15 | Wooden strip, door rear right | NUSSB.AMERIKAN. | 1 | 03/2005 | 51427149986 | $281.98 | ENDED | Shop at ECS Tuning | ||
| 16 | Decor strip for rear window shelf | ANTHRAZIT | 1 | 03/2005 | 51467044723 | $212.78 | ENDED | Shop at ECS Tuning | ||
| 16 | Decor strip for rear window shelf | FLANELLGRAU | 1 | 03/2005 | 51467044724 | $212.78 | ENDED, +core | Shop at ECS Tuning | ||
| 16 | Decor strip for rear window shelf | BEIGE | 1 | 03/2005 | 51467044725 | $212.78 | +core | Shop at ECS Tuning | ||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
