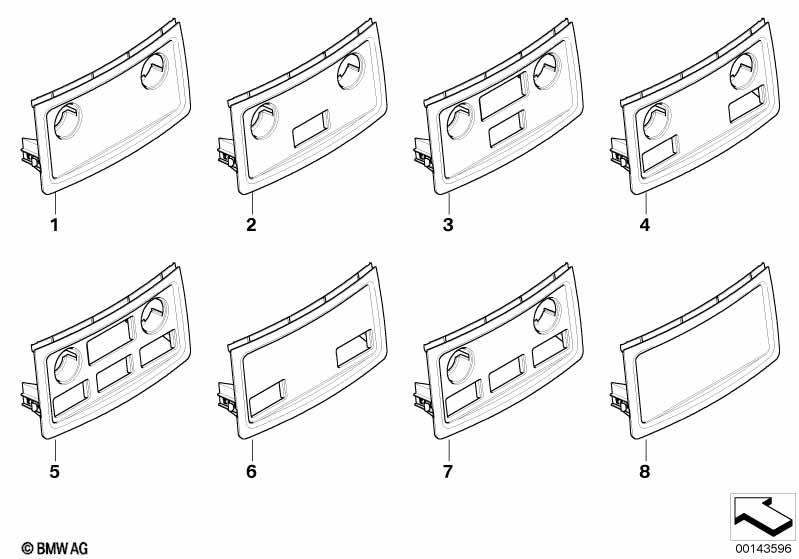

Mounting parts, center console, rear for BMW 5 Series E60 LCI 525i (2009)
This Mounting parts, center console, rear technical drawing provides a detailed breakdown of the assembly for the 5 Series E60 LCI 525i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 01 | Cover Poplar woodgrain, rear | GRAU | 1 | 51169170191 | $110.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 02 | Cover Poplar woodgrain, rear | HELL | 1 | 51166951142 | $144.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 02 | Cover Maple Sycamore, rear | ANTHRAZIT | 1 | 51167141072 | $129.79 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 02 | Cover Poplar woodgrain, rear | GRAU | 1 | 51169170189 | $110.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 02 | Cover, poplar woodgrain, center console | DUNKEL | 1 | 51166951150 | $184.76 | Shop at ECS Tuning | ||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 02 | Trim cover, bamboo, rear | ANTHRAZIT | 1 | 51166989865 | $171.54 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 04 | Cover Poplar woodgrain, rear | GRAU | 1 | 51169170192 | $110.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S437A=Yes |
|||||||||
| 07 | Cover Poplar woodgrain, rear | HELL | 1 | 51166951147 | $144.06 | Shop at ECS Tuning | ||||
| For vehicles with Fine wood trim |
S435A=Yes |
|||||||||
| 07 | Cover Maple Sycamore, rear | ANTHRAZIT | 1 | 51167156982 | $135.00 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood version, poplar grain, gray |
S4ASA=Yes |
|||||||||
| 07 | Cover Poplar woodgrain, rear | GRAU | 1 | 51169170190 | $110.10 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fine wood trim |
S438A=Yes |
|||||||||
| 07 | Cover ctre. cons. poplar woodgrain rear | BRAUN | 1 | 51167156983 | $135.00 | Shop at ECS Tuning | ||||
| For vehicles with Real Bamboo wood-grain trim, anthracite |
S4BYA=Yes |
|||||||||
| 07 | Trim cover, bamboo, rear | ANTHRAZIT | 1 | 51166989866 | $144.06 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
