Trim cover, front for BMW 3 Series E90 320d (2008)

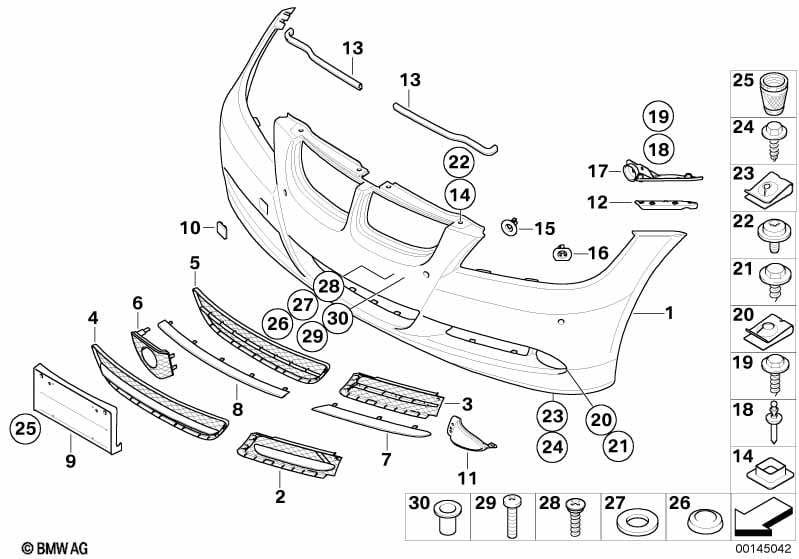

This Trim cover, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117170051 | $423.97 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Kit dummy trim | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117170051 | $423.97 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S502A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117170053 | $443.05 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Kit dummy trim | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | 1 | 51117170053 | $443.05 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410005 | Shop at ECS Tuning | |||||
| 02 | Partially open grid, left | 1 | 51117154551 | Shop at ECS Tuning | ||||||
| 02 | Partially open grid, right | 1 | 51117154552 | Shop at ECS Tuning | ||||||
| 04 | Grid, center open | 1 | 51117154556 | $46.32 | Shop at ECS Tuning | |||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 09 | Licence plate base | 1 | 51117058449 | $10.50 | Shop at ECS Tuning | |||||
| 10 | Flap, towing eye, primed | 1 | 51117167575 | $11.39 | Shop at ECS Tuning | |||||
| For vehicles without fog headlights |
||||||||||
| 11 | Left fog lamp cover | 1 | 51117058463 | Shop at ECS Tuning | ||||||
| 11 | Right fog lamp cover | 1 | 51117058464 | Shop at ECS Tuning | ||||||
| 12 | Insert, bumper front left | 1 | 51117134097 | $5.25 | Shop at ECS Tuning | |||||
| 12 | Insert, bumper front right | 1 | 51117134098 | $5.25 | Shop at ECS Tuning | |||||
| 13 | Seal, engine bonnet, front | 1 | 51767143757 | $6.71 | Shop at ECS Tuning | |||||
| 14 | Spacer sleeve | 4 | 51117071270 | $0.56 | Shop at ECS Tuning | |||||
| 15 | Bracket PDC front interior | 2 | 51117118199 | $3.23 | Shop at ECS Tuning | |||||
| 16 | Bracket PDC front exterior | 2 | 51117118201 | $2.78 | Shop at ECS Tuning | |||||
| 17 | Support fender left | 1 | 51117058447 | $5.28 | Shop at ECS Tuning | |||||
| 17 | Support fender right | 1 | 51117058448 | $5.28 | Shop at ECS Tuning | |||||
| 18 | Expanding rivet | 4 | 07146971349 | $0.26 | Shop at ECS Tuning | |||||
| 19 | Screw | SECHSKANT | 4 | 07/2007 | 07143428231 | $0.36 | Shop at ECS Tuning | |||
| 20 | Body nut | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 21 | Hex head screw | ST4,8X16-ZNS3 | 6 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 22 | Torx bolt | ISA M6X18 SW | 4 | 07/2007 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 23 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 11 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 24 | Hex head screw with washer | ST4,8X16MM | 11 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 25 | Threaded bush | M6 | 1 | 11611716166 | $0.68 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 26 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 26 | Covering cap | EUROPABLAU | X | 51187060798 | $0.21 | Shop at ECS Tuning | ||||
| 26 | Covering cap | GOLDGELB | X | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| 27 | Washer | 4-200 HV-ZNS3 | 4 | 07/2007 | 07119904207 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 28 | Phillips screw f plastic material | TS 5X13 | 4 | 07/2007 | 07146959892 | $0.30 | Shop at ECS Tuning | |||
| REGISTRATION PLATE MOUNTING Repair solution |
||||||||||
| 29 | Screw | M5X20 | 4 | 46612315376 | $0.60 | Shop at ECS Tuning | ||||
| 30 | Blind rivet nut, flat headed | M5 | 4 | 51138400227 | $2.77 | Shop at ECS Tuning | ||||
