Mounting parts for BMW 3 Series E90 320d (2008)

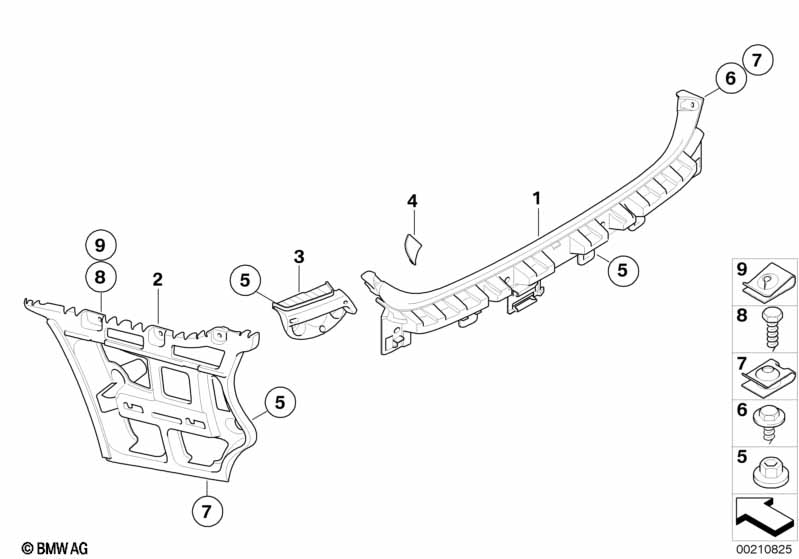

This Mounting parts technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Guide, center rear | 1 | 51127058522 | $17.52 | Shop at ECS Tuning | |||||
| 02 | Guide for bumper, side, left | 1 | 09/2008 | 51127058519 | $27.03 | +core | Shop at ECS Tuning | |||
| 02 | Guide for bumper, side, right | 1 | 09/2008 | 51127058520 | $27.03 | +core | Shop at ECS Tuning | |||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 02 | Guide for bumper, side, left | 1 | 51127906505 | $27.03 | Shop at ECS Tuning | |||||
| 02 | Guide for bumper, side, right | 1 | 51127906506 | $27.03 | Shop at ECS Tuning | |||||
| 03 | Guide for tail lamp, left | 1 | 51127118193 | $8.27 | Shop at ECS Tuning | |||||
| 03 | Guide for tail lamp, right | 1 | 51127118194 | $8.27 | Shop at ECS Tuning | |||||
| 04 | Covering cap left | 1 | 51127134037 | $0.92 | Shop at ECS Tuning | |||||
| 04 | Covering cap right | 1 | 51127134038 | $0.92 | Shop at ECS Tuning | |||||
| 05 | Plastic capnut with washer | D=22MM | X | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw | ISA | 2 | 07149116376 | $0.29 | Shop at ECS Tuning | ||||
| 07 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | 4 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 09 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
