Interior mirror for BMW 3 Series E90 LCI 320i (2011)

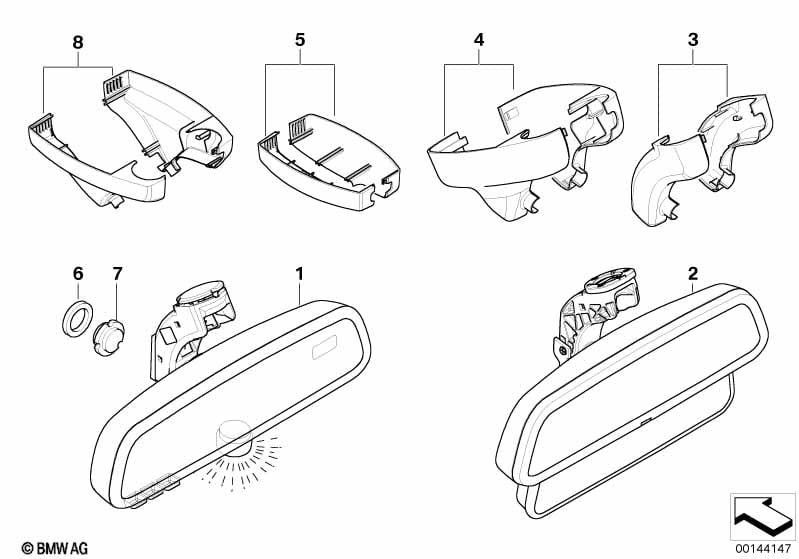

This Interior mirror technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | EC = Electrochromatic Radio = Radio-wave remote control LED = Light-emitting diode for alarm system GTO = Integrated remote control/garage door opener FLA = High-beam assistant Compass = Digital compass display ETC = Electronic Toll Collection TLC = Out-of-lane warning |
|||||||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass |
S319A=Yes S4NAA=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / compass / RC | 434 MHZ | 1 | 09/2008 | 51169192323 | Shop at ECS Tuning | ||||
| For vehicles with Integrated universal remote control and High-beam assistant |
S319A=Yes S5ACA=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / FLA | 1 | 51169225978 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Integrated universal remote control and High-beam assistant |
S302A=Yes S319A=No S5ACA=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / FLA | 1 | 51169225977 | Shop at ECS Tuning | ||||||
| For vehicles with Alarm system and Interior mirror with digital compass and Radio frequency 315 MHz |
S302A=Yes S4NAA=Yes S876A=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / compass / RC | 315 MHZ | 1 | 51169192319 | $391.95 | Shop at ECS Tuning | ||||
| For vehicles with Alarm system and Integrated universal remote control and High-beam assistant |
S302A=No S319A=No S5ACA=Yes |
|||||||||
| 01 | Rearview mirror EC / FLA | 1 | 51169225976 | Shop at ECS Tuning | ||||||
| For vehicles with Integrated universal remote control and High-beam assistant and Radio frequency 315 MHz |
S319A=Yes S5ACA=Yes S876A=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / FLA | 1 | 51169225979 | Shop at ECS Tuning | ||||||
| 01 | Rearview mirror EC / LED / GTO / FLA | 1 | 09/2009 | 51169225979 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and Radio frequency 315 MHz |
S319A=Yes S4NAA=Yes S876A=Yes |
|||||||||
| 01 | Rearview mirror EC/LED/GTO/compass/RC | 315 MHZ | 1 | 51169192321 | $808.17 | Shop at ECS Tuning | ||||
| 01 | Rearview mirror EC / LED / compass / RC | 434 MHZ | 1 | 09/2008 | 51169192325 | $390.98 | Shop at ECS Tuning | |||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and High-beam assistant |
S319A=No S4NAA=Yes S5ACA=No |
|||||||||
| 01 | Rearview mirror EC / LED / Compass | 1 | 51169192333 | $666.73 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and High-beam assistant and Radio frequency 434 MHz and Radio frequency 315 MHz |
S319A=Yes S5ACA=Yes S874A=No S876A=No |
|||||||||
| 01 | Rearview mirror EC/LED/GTO/FLA/RC | 868 MHZ | 1 | 51169225985 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior toll mirror for Japan and High-beam assistant and Radio frequency 315 MHz |
S319A=Yes S449A=No S5ACA=Yes S876A=No |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / FLA | 1 | 03/2010 | 51169225978 | Shop at ECS Tuning | |||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and Radio frequency 434 MHz and Radio frequency 315 MHz |
S319A=Yes S4NAA=Yes S874A=No S876A=No |
|||||||||
| 01 | Rearview mirror EC/LED/GTO/compass/RC | 868 MHZ | 1 | 09/2007 | 51169192331 | $785.23 | Shop at ECS Tuning | |||
| For vehicles with Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior mirror with digital compass and High-beam assistant |
S319A=No S430A=No S431A=No S4NAA=No S5ACA=No |
|||||||||
| 01 | Rearview mirror, manual / LED | 1 | 51169218046 | Shop at ECS Tuning | ||||||
| For vehicles with Integrated universal remote control and Interior mirror with digital compass and High-beam assistant and Radio frequency 434 MHz and Radio frequency 315 MHz |
S319A=No S4NAA=Yes S5ACA=No S874A=No S876A=No |
|||||||||
| 01 | Rearview mirror EC / LED / compass / RC | 868 MHZ | 1 | 09/2007 | 51169192329 | $390.98 | Shop at ECS Tuning | |||
| For vehicles with National version Korea and National version japan and Integrated universal remote control and High-beam assistant and Radio frequency 434 MHz and Radio frequency 315 MHz |
L802A=No L807A=No S319A=No S5ACA=Yes S874A=No S876A=No |
|||||||||
| 01 | Rearview mirror EC / LED / FLA / RC | 868 MHZ | 1 | 09/2007 | 51169225981 | $79.24 | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of covers mirror baseplate | SCHWARZ | 1 | 09/2007 | 51169219140 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary inside mirror and Integrated universal remote control and Interior/outside mirror with auto dip and Interior mirror with automatic-dip and Interior toll mirror for Japan and Interior mirror with digital compass and High-beam assistant |
S123A=No S319A=No S430A=Yes S431A=Yes S449A=No S4NAA=No S5ACA=No |
|||||||||
| 01 | Rearview mirror EC / LED | 1 | 51169134459 | $250.95 | Shop at ECS Tuning | |||||
| For vehicles with National version Korea and National version japan and Auxiliary inside mirror and Integrated universal remote control and Interior toll mirror for Japan and Interior mirror with digital compass and High-beam assistant and Radio frequency 315 MHz |
L802A=No L807A=No S123A=No S319A=Yes S449A=No S4NAA=No S5ACA=No S876A=Yes |
|||||||||
| 01 | Rearview mirror EC / LED / GTO / remote | 315 MHZ | 1 | 51169174309 | $461.95 | Shop at ECS Tuning | ||||
| For vehicles with Auxiliary inside mirror |
S123A=Yes |
|||||||||
| 02 | Tandem interior mirror | 1 | 51169134360 | $481.95 | Shop at ECS Tuning | |||||
| For vehicles with Interior toll mirror for Japan and Rain sensor and High-beam assistant |
S449A=No S521A=No S5ACA=No |
|||||||||
| 03 | Set of covers mirror baseplate | 1 | 51167133655 | $13.17 | Shop at ECS Tuning | |||||
| For vehicles with High-beam assistant |
S5ACA=Yes |
|||||||||
| 04 | Set of covers mirror baseplate | SCHWARZ | 1 | 09/2009 | 51169219140 | Shop at ECS Tuning | ||||
| For vehicles with Rain sensor and High-beam assistant |
S521A=Yes S5ACA=No |
|||||||||
| 04 | Set of covers mirror baseplate | SCHWARZ | 1 | 51169234435 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror and Interior toll mirror for Japan and Rain sensor and High-beam assistant |
S123A=No S449A=No S521A=Yes S5ACA=No |
|||||||||
| 04 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167076129 | $13.17 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Set of covers mirror baseplate | SCHWARZ | 1 | 51167117761 | $13.17 | Shop at ECS Tuning | ||||
| 06 | Cover, base plate f interior mirror | 1 | 51161954117 | $1.21 | Shop at ECS Tuning | |||||
| 07 | Base plate, rear view mirror, interior | 1 | 51318145530 | $8.72 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary inside mirror |
S123A=Yes |
|||||||||
| 08 | Covering cap left | 1 | 51167134954 | $16.63 | Shop at ECS Tuning | |||||
| 08 | Covering cap right | 1 | 51167134966 | $16.63 | Shop at ECS Tuning | |||||
