Cover door sill / wheel arch for BMW 3 Series E90 320d (2008)

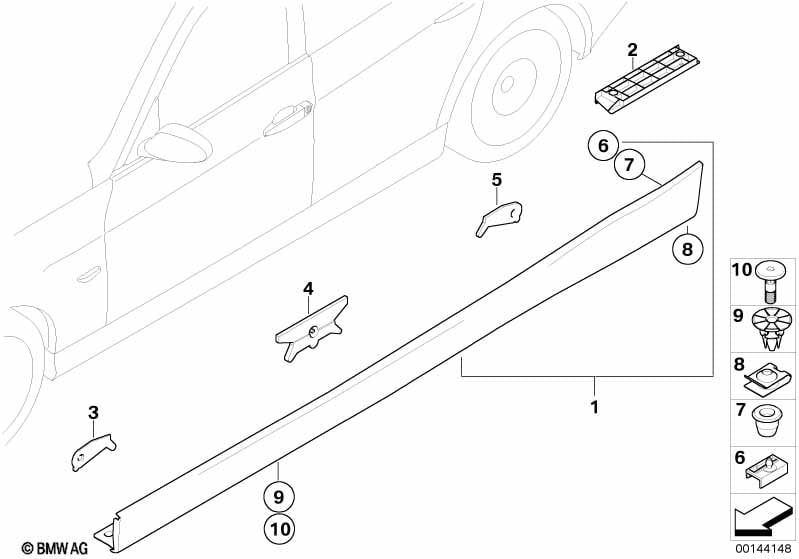

This Cover door sill / wheel arch technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Primed left outer kick panel | 1 | 09/2008 | 51777164795 | $128.36 | Shop at ECS Tuning | ||||
| 01 | Primed right door sill trim panel | 1 | 09/2008 | 51777164796 | $128.36 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 09/2008 | 51770032950 | $276.77 | ENDED | Shop at ECS Tuning | ||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 09/2008 | 51770032951 | $276.77 | ENDED | Shop at ECS Tuning | ||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 01 | Rocker panel trim, primed, left | -M- | 1 | 09/2008 | 51778041141 | $148.00 | Shop at ECS Tuning | |||
| 01 | Rocker panel trim, primed, right | -M- | 1 | 09/2008 | 51778041142 | $148.00 | Shop at ECS Tuning | |||
| For vehicles with M Aerodynamics package When ordering indicate color code |
S715A=Yes |
|||||||||
| 01 | Rocker panel strip, painted, right | CODE - UNI/MET. | 1 | 09/2008 | 51770033440 | $378.32 | ENDED | Shop at ECS Tuning | ||
| 01 | Rocker panel strip, painted, left | CODE - UNI/MET. | 1 | 09/2008 | 51770033441 | $378.32 | ENDED | Shop at ECS Tuning | ||
| 02 | Impact protection, left sill | 1 | 09/2008 | 51777146729 | $5.20 | Shop at ECS Tuning | ||||
| 02 | Impact protection, right sill | 1 | 09/2008 | 51777146730 | $5.20 | Shop at ECS Tuning | ||||
| 03 | Rub plate, front left | 1 | 09/2008 | 51777166871 | $0.93 | Shop at ECS Tuning | ||||
| 03 | Rub plate, front right | 1 | 09/2008 | 51777166872 | $0.93 | Shop at ECS Tuning | ||||
| 04 | Rub plate, center left | 1 | 09/2008 | 51777166873 | $0.95 | Shop at ECS Tuning | ||||
| 04 | Rub plate, center right | 1 | 09/2008 | 51777166874 | $0.95 | Shop at ECS Tuning | ||||
| 05 | Rub plate, rear left | 1 | 09/2008 | 51777166875 | $0.93 | Shop at ECS Tuning | ||||
| 05 | Rub plate, rear right | 1 | 09/2008 | 51777166876 | $0.93 | Shop at ECS Tuning | ||||
| 06 | Clip | GELB | X | 09/2008 | 51777166869 | $0.68 | Shop at ECS Tuning | |||
| For vehicles with M Aerodynamics package |
S715A=Yes |
|||||||||
| 06 | Clamp | NATUR | X | 09/2008 | 51718184574 | $0.58 | Shop at ECS Tuning | |||
| 07 | Grommet, green | D=9,1MM | X | 09/2008 | 51711932996 | $0.23 | Shop at ECS Tuning | |||
| 08 | Body nut | ST4,8-9-ZNS3 | 2 | 09/2008 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 09 | Spacer clip | X | 09/2008 | 07147122912 | $0.48 | Shop at ECS Tuning | ||||
| 10 | Pin | X | 09/2008 | 07147122913 | $0.23 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
