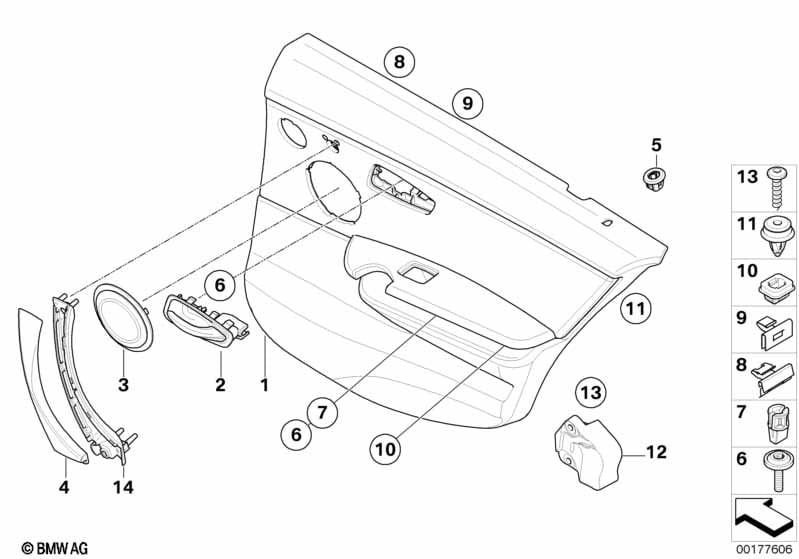

Door trim, rear for BMW 3 Series E90 LCI 320i (2011)
This Door trim, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Leather "Dakota/oyster" |
LCCX=Yes |
|||||||||
| 01 | Door lining leather rear left | OYSTER | 1 | 09/2008 | 51429167911 | $764.51 | ENDED | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | OYSTER | 1 | 09/2008 | 51429167912 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/terra |
LCB8=Yes |
|||||||||
| 01 | Door lining leather rear left | TERRA | 1 | 51429152389 | $753.73 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | TERRA | 1 | 51429152390 | $717.00 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather citrus/quarz-blue |
FFB6=Yes |
|||||||||
| 01 | Door lining cloth rear left | QUARZGRAU | 1 | 51429152377 | $613.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | QUARZGRAU | 1 | 51429152378 | $613.35 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather "citrus"/anthracite |
FFAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152373 | $613.35 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51429152374 | $631.62 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Fabric/leather 'Impuls/braun' |
FMCN=Yes |
|||||||||
| 01 | Door lining cloth rear left | BRAUN | 1 | 09/2008 | 51429167909 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BRAUN | 1 | 09/2008 | 51429167910 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth/leather citrus/blue |
FFB5=Yes |
|||||||||
| 01 | Door lining cloth rear left | BLAU | 1 | 51429152375 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BLAU | 1 | 51429152376 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota/red-brown" |
LCCZ=Yes |
|||||||||
| 01 | Door lining leather rear left | ROTBRAUN | 1 | 09/2008 | 51429167915 | $764.51 | ENDED, +core | Shop at ECS Tuning | ||
| 01 | Door lining leather rear right | ROTBRAUN | 1 | 09/2008 | 51429167916 | $764.51 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Leather "Dakota" saddle brown |
LCD3=Yes |
|||||||||
| 01 | Door lining leather rear left | 1 | 09/2008 | 51429167913 | ENDED, +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | SATTELBRAUN | 1 | 09/2008 | 51429167914 | $764.51 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth/leather "Impuls/anthrazit" |
FMAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 09/2008 | 51429167907 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 09/2008 | 51429167908 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey |
ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51429152361 | $552.87 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | GRAU | 1 | 51429152362 | $552.87 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/anthrazit" |
EBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 09/2008 | 51429167899 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 09/2008 | 51429167900 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Vertex/beige" |
EBB4=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 09/2008 | 51429167903 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BEIGE | 1 | 09/2008 | 51429167904 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/beige |
LCB4=Yes |
|||||||||
| 01 | Door trim panel, rear, left | BEIGE | 1 | 51427217583 | $764.51 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | BEIGE | 1 | 51427217584 | $764.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric 'Layer/oyster' |
BCCX=Yes |
|||||||||
| 01 | Door trim panel, rear, left | OYSTER | 1 | 03/2010 | 51427267605 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | OYSTER | 1 | 03/2010 | 51427267606 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Fabric 'Layer/anthrazit' |
BCAT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/2010 | 51427267603 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/2010 | 51427267604 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/grau |
LCAD=Yes |
|||||||||
| 01 | Door trim panel, rear, left | GRAU | 1 | 51427217581 | +core | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51427217582 | $764.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige |
ALB4=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51429152363 | $363.89 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51429152364 | $363.89 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather "Dakota"/lemon |
LCB7=Yes |
|||||||||
| 01 | Door lining leather rear left | LEMON | 1 | 51429152387 | $717.00 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LEMON | 1 | 51429152388 | $764.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Vertex/grey" |
EBAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 09/2008 | 51429167901 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | GRAU | 1 | 09/2008 | 51429167902 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/black or Imitation leather/black |
KASW=Yes KBSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51429152367 | $358.51 | +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51429152368 | $358.51 | +core | Shop at ECS Tuning | |||
| For vehicles with Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51427217579 | $764.51 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51427217580 | $764.51 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" |
ANAT=Yes ANNK=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152497 | $363.89 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51429152498 | $613.35 | +core | Shop at ECS Tuning | |||
| For vehicles with Sensatec/beige or Imitation leather, beige |
KAB4=Yes KBB4=Yes |
|||||||||
| 01 | Door lining vynil rear left | BEIGE | 1 | 51429152369 | $358.51 | +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil rear right | BEIGE | 1 | 51429152370 | $358.51 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth/leather "Speed"/anthracite |
ALAT=Yes GEAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152359 | $552.87 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51429152360 | $552.87 | Shop at ECS Tuning | ||||
| For vehicles with Harman/Kardon Surround Sound system and Fabric 'Layer/anthrazit' |
S688A=Yes BCAT=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ANTHRAZIT | 1 | 03/2010 | 51427267611 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ANTHRAZIT | 1 | 03/2010 | 51427267612 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Fabric 'Layer/oyster' |
S677A=Yes S688A=Yes BCCX=Yes |
|||||||||
| 01 | Door trim panel, rear, left | OYSTER | 1 | 03/2010 | 51427267613 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | OYSTER | 1 | 03/2010 | 51427267614 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Cloth "Fluid"/beige |
S677A=Yes S688A=Yes ALB4=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 51429152397 | $613.35 | ENDED | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BEIGE | 1 | 51429152398 | $613.35 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather "Dakota"/lemon |
S677A=Yes S688A=Yes LCB7=Yes |
|||||||||
| 01 | Door lining leather rear left | LEMON | 1 | 51429152421 | $717.00 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | LEMON | 1 | 51429152422 | $717.00 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Cloth "blue shadow/Alcantara"/anthracite |
S677A=Yes S688A=Yes ANAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152501 | $552.87 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Leather "Dakota"/terra |
S677A=Yes S688A=Yes LCB8=Yes |
|||||||||
| 01 | Door lining leather rear left | TERRA | 1 | 51429152423 | $688.92 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | TERRA | 1 | 51429152424 | $688.92 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Cloth "Fluid" or "Linea"/grey |
S677A=Yes S688A=Yes ALAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 51429152395 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | GRAU | 1 | 51429152396 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth/leather citrus/blue |
S677A=Yes S688A=Yes S752A=Yes FFB5=Yes |
|||||||||
| 01 | Door lining cloth rear left | BLAU | 1 | 51429152409 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BLAU | 1 | 51429152410 | $613.35 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Dakota"/beige |
S677A=Yes S688A=Yes S752A=Yes LCB4=Yes |
|||||||||
| 01 | Door lining leather rear left | BEIGE | 1 | 51427217615 | $764.51 | +core | Shop at ECS Tuning | |||
| 01 | Door lining leather rear right | BEIGE | 1 | 51427217616 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth "Vertex/grey" |
S677A=Yes S688A=Yes S752A=Yes EBAD=Yes |
|||||||||
| 01 | Door lining cloth rear left | GRAU | 1 | 09/2008 | 51429167941 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | GRAU | 1 | 09/2008 | 51429167942 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Fabric/leather 'Impuls/braun' |
S677A=Yes S688A=Yes S752A=Yes FMCN=Yes |
|||||||||
| 01 | Door lining cloth rear left | BRAUN | 1 | 09/2008 | 51429167949 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BRAUN | 1 | 09/2008 | 51429167950 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth "Vertex/anthrazit" |
S677A=Yes S688A=Yes S752A=Yes EBAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 09/2008 | 51429167939 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 09/2008 | 51429167940 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Sensatec/black or Imitation leather/black |
S677A=Yes S688A=Yes KASW=Yes KBSW=Yes |
|||||||||
| 01 | Door lining vynil rear left | SCHWARZ | 1 | 51429152401 | $358.51 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil rear right | SCHWARZ | 1 | 51429152402 | $358.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Sensatec/beige or Imitation leather, beige |
S677A=Yes S688A=Yes KAB4=Yes KBB4=Yes |
|||||||||
| 01 | Door lining vynil rear left | BEIGE | 1 | 51429152403 | $358.51 | +core | Shop at ECS Tuning | |||
| 01 | Door lining vynil rear right | BEIGE | 1 | 51429152404 | $358.51 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Dakota" saddle brown |
S677A=Yes S688A=Yes S752A=Yes LCD3=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SATTELBRAUN | 1 | 09/2008 | 51429167953 | ENDED | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | SATTELBRAUN | 1 | 09/2008 | 51429167954 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth "Vertex/beige" |
S677A=Yes S688A=Yes S752A=Yes EBB4=Yes |
|||||||||
| 01 | Door lining cloth rear left | BEIGE | 1 | 09/2008 | 51429167943 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | BEIGE | 1 | 09/2008 | 51429167944 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Dakota"/grau |
S677A=Yes S688A=Yes S752A=Yes LCAD=Yes |
|||||||||
| 01 | Door lining leather rear left | GRAU | 1 | 51427217613 | +core | Shop at ECS Tuning | ||||
| 01 | Door lining leather rear right | GRAU | 1 | 51427217614 | ENDED, +core | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth/leather citrus/quarz-blue |
S677A=Yes S688A=Yes S752A=Yes FFB6=Yes |
|||||||||
| 01 | Door lining cloth rear left | QUARZGRAU | 1 | 51429152411 | $552.87 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | QUARZGRAU | 1 | 51429152412 | $613.35 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Dakota/oyster" |
S677A=Yes S688A=Yes S752A=Yes LCCX=Yes |
|||||||||
| 01 | Door trim panel, rear, left | OYSTER | 1 | 09/2008 | 51429167951 | +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | OYSTER | 1 | 09/2008 | 51429167952 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system and Cloth "Fluid" or "Linea"/anthracite or Cloth/leather "Speed"/anthracite |
S677A=Yes S688A=Yes ALAT=Yes GEAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152393 | $363.89 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51429152394 | $552.87 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth/leather "Impuls/anthrazit" |
S677A=Yes S688A=Yes S752A=Yes FMAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 09/2008 | 51429167947 | +core | Shop at ECS Tuning | |||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 09/2008 | 51429167948 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather "Dakota/red-brown" |
S677A=Yes S688A=Yes S752A=Yes LCCZ=Yes |
|||||||||
| 01 | Door trim panel, rear, left | ROTBRAUN | 1 | 09/2008 | 51429167955 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Door trim panel, rear, right | ROTBRAUN | 1 | 09/2008 | 51429167956 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Cloth/leather "citrus"/anthracite |
S677A=Yes S688A=Yes S752A=Yes FFAT=Yes |
|||||||||
| 01 | Door lining cloth rear left | ANTHRAZIT | 1 | 51429152407 | $613.35 | Shop at ECS Tuning | ||||
| 01 | Door lining cloth rear right | ANTHRAZIT | 1 | 51429152408 | $552.87 | +core | Shop at ECS Tuning | |||
| For vehicles with HiFi System Professional DSP or Harman/Kardon Surround Sound system or Individual audio system and Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
S677A=Yes S688A=Yes S752A=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Door trim panel, rear, left | SCHWARZ | 1 | 51427217611 | $764.51 | Shop at ECS Tuning | ||||
| 01 | Door trim panel, rear, right | SCHWARZ | 1 | 51427217612 | $764.51 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Door handle, inside left | GRAU | 1 | 51417144547 | $21.56 | Shop at ECS Tuning | ||||
| 02 | Door handle inner right | GRAU | 1 | 51417144548 | $21.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Door handle, inside left | BEIGE | 1 | 51417144549 | $21.56 | Shop at ECS Tuning | ||||
| 02 | Door handle inner right | BEIGE | 1 | 51417144550 | $21.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes NCH1=Yes NCH2=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 02 | Door handle, inside left | SCHWARZ | 1 | 51417144545 | $21.56 | Shop at ECS Tuning | ||||
| 02 | Door handle inner right | SCHWARZ | 1 | 51417144546 | $21.56 | Shop at ECS Tuning | ||||
| For vehicles with Individual audio system |
S752A=Yes |
|||||||||
| 03 | Cover Loudspeaker | 2 | 51418045695 | $21.40 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP and Harman/Kardon Surround Sound system and Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
S677A=Yes S688A=Yes ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 03 | Cover Loudspeaker | GRAU | 2 | 51417144555 | $9.56 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP and Harman/Kardon Surround Sound system and Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
S677A=Yes S688A=Yes ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | Cover Loudspeaker | BEIGE | 2 | 51417144557 | $9.56 | Shop at ECS Tuning | ||||
| For vehicles with HiFi System Professional DSP and Harman/Kardon Surround Sound system and Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather "Novillo"/palladium-silber or Leather "Novillo"/fuchs-red or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"/black or Leather "Novillo"extended/palladium-silb or Leather "Novillo"extended/fuchs-red or Leather Novillo/palladium-silber/black or Leather Novillo/fuchs-rot/black or Leather "Novillo"extended/black |
S677A=Yes S688A=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes NCH1=Yes NCH2=Yes NCH4=Yes NCH5=Yes NCSW=Yes NDH1=Yes NDH2=Yes NDH4=Yes NDH5=Yes NDSW=Yes |
|||||||||
| 03 | Cover Loudspeaker | SCHWARZ | 2 | 51417144553 | $9.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau only fits door trim panel with Door closing handle with two reinforcement braces |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 04 | Clasp, inside door handle, left | GRAU | 1 | 03/2007 | 51419150337 | $9.54 | Shop at ECS Tuning | |||
| 04 | Clasp, inside door handle, right | GRAU | 1 | 03/2007 | 51419150338 | $9.54 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige only fits door trim panel with Door closing handle with two reinforcement braces |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 04 | Clasp, inside door handle, left | BEIGE | 1 | 03/2007 | 51419150339 | $9.54 | Shop at ECS Tuning | |||
| 04 | Clasp, inside door handle, right | BEIGE | 1 | 03/2007 | 51419150340 | $9.54 | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz only fits door trim panel with Door closing handle with two reinforcement braces |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Clasp, inside door handle, left | SCHWARZ | 1 | 03/2007 | 51419150335 | $9.54 | Shop at ECS Tuning | |||
| 04 | Clasp, inside door handle, right | SCHWARZ | 1 | 03/2007 | 51419150336 | $9.54 | Shop at ECS Tuning | |||
| 05 | Cover, locking button | 2 | 51427117827 | $0.21 | Shop at ECS Tuning | |||||
| 06 | Fillister head screw with collar | ISA 35X5 | 6 | 07146979835 | $0.89 | Shop at ECS Tuning | ||||
| 06 | Fillister head screw with collar | M4X14 | 2 | 46637659479 | $1.20 | Shop at ECS Tuning | ||||
| 07 | Expanding nut | 8X11,7X2 | 6 | 51418267067 | $0.56 | Shop at ECS Tuning | ||||
| 08 | Clamp | 8 | 51418225552 | $0.74 | Shop at ECS Tuning | |||||
| 09 | Clamp | 0,8MM | 4 | 51418240509 | $0.74 | Shop at ECS Tuning | ||||
| 10 | Plug-in retainer | 6 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 11 | Clip beige | 2 | 07147133419 | $4.49 | Shop at ECS Tuning | |||||
| 11 | Clip, red | 2 | 07146962771 | $0.28 | Shop at ECS Tuning | |||||
| 11 | Clip with washer, natur | WEIß | 14 | 51418224768 | $0.69 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 14 | Support, pull strap, left | GRAU | 1 | 51417230851 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, left | GRAU | 1 | 51419150337 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Support, pull strap, right | GRAU | 1 | 51417230852 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, right | GRAU | 1 | 51419150338 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 14 | Support, pull strap, left | BEIGE | 1 | 51417230853 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, left | BEIGE | 1 | 51419150339 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Support, pull strap, right | BEIGE | 1 | 51417230854 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, right | BEIGE | 1 | 51419150340 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric "Diagonal/anthracite" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Cloth/leather "Speed"/anthracite or Sensatec/black or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes AWAT=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FHAT=Yes FMAT=Yes FMCN=Yes GEAT=Yes KASW=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 14 | Support, pull strap, left | SCHWARZ | 1 | 51417230849 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, left | SCHWARZ | 1 | 51419150335 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
| 14 | Support, pull strap, right | SCHWARZ | 1 | 51417230850 | $20.13 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Clasp, inside door handle, right | SCHWARZ | 1 | 51419150336 | $9.54 | Shop at ECS Tuning | ||||
| -- | Screw | M4X10,5 | 4 | 07147119858 | $1.42 | Shop at ECS Tuning | ||||
| -- | Washer | 7-200 HV | 1 | 07119904199 | $0.84 | Shop at ECS Tuning | ||||
| -- | Washer | 4-200 HV-ZNS3 | 1 | 07119904207 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 LCI 320i Door trim, rear?
- This technical diagram illustrates the Door trim, rear within the Vehicle trim group for the 3 Series E90 LCI 320i produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Door lining leather rear left (Part #51429167911).
- Which models use the hardware listed in this Door trim, rear?
- The hardware and components featured in the Door trim, rear are specific to the 3 Series E90 LCI 320i produced during 2011. These technical specifications ensure that parts like the Door lining leather rear left (51429167911) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Door trim, rear assembly?
- Each item in the Door trim, rear corresponds to the numbered list below the illustration. For the 3 Series E90 LCI 320i, you can identify the Door lining leather rear left by locating its position on the schematic, which then links to the official BMW part number 51429167911 for the Vehicle trim section.
