Trim panel leg room for BMW 3 Series E90 LCI 325i (2009)

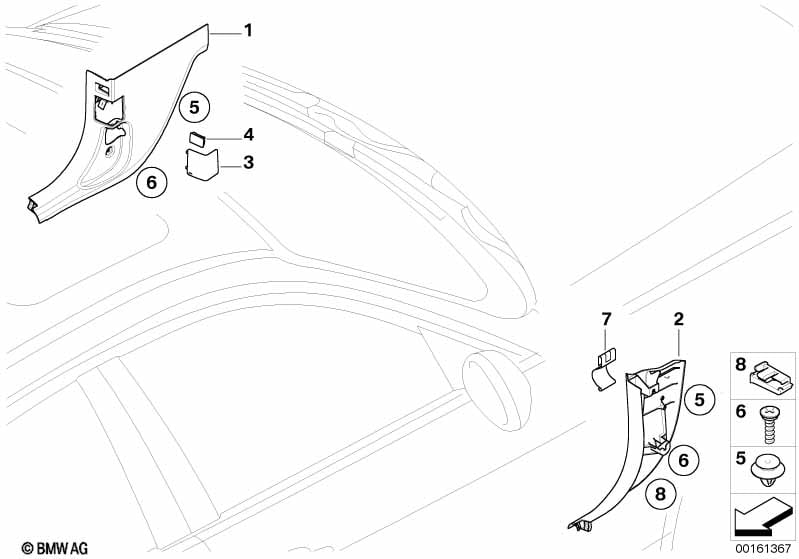

This Trim panel leg room technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral trim panel front right | SCHWARZ | 1 | 51439132716 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Lateral trim panel front right | GRAU | 1 | 51439132718 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Lateral trim panel front right | BEIGE | 1 | 51439132722 | +core | Shop at ECS Tuning | ||||
| 02 | Lateral trim panel front left | SCHWARZ | 1 | 51437129817 | $13.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Lateral trim panel front left | GRAU | 1 | 51437144529 | $13.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Lateral trim panel front left | BEIGE | 1 | 51437144531 | $13.84 | Shop at ECS Tuning | ||||
| 03 | OBD plug cover | SCHWARZ | 1 | 51437147543 | $1.87 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 03 | OBD plug cover | GRAU | 1 | 51437147544 | $1.34 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | OBD plug cover | BEIGE | 1 | 51437147545 | $1.34 | Shop at ECS Tuning | ||||
| 04 | Trim cover for button | SCHWARZ | 1 | 51437110827 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 04 | Cover | GRAU | 1 | 51437110878 | $0.71 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 04 | Cover | BEIGE | 1 | 51437144528 | $1.13 | Shop at ECS Tuning | ||||
| 05 | Clip | 4 | 07147152593 | $0.17 | Shop at ECS Tuning | |||||
| 06 | Screw | NS-TS5X16-ZNFE | 1 | 07129903266 | $0.20 | Shop at ECS Tuning | ||||
| 06 | Phillips screw f plastic material | TS 5X13 | 1 | 07146959892 | $0.30 | Shop at ECS Tuning | ||||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 07 | Warning torch holder | 1 | 51437044418 | $2.23 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
