Trim panel A- / B- / C-Column for BMW 3 Series E90 318i (2008)

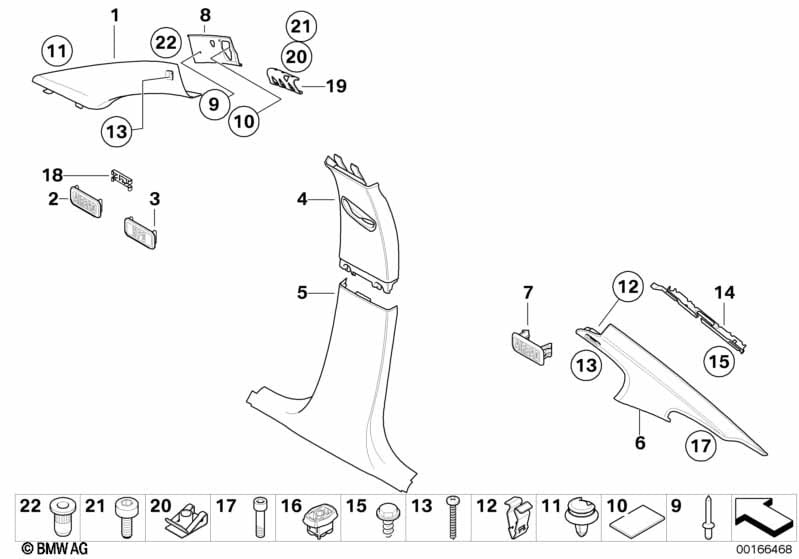

This Trim panel A- / B- / C-Column technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 318i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 01 | Left column A cover | ANTHRAZIT | 1 | 51438036251 | $21.03 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | ANTHRAZIT | 1 | 51438036252 | $21.03 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Left column A cover | BEIGE | 1 | 51437141047 | $21.03 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | BEIGE | 1 | 51437141048 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Left column A cover | GRAU | 1 | 51437124771 | $21.03 | Shop at ECS Tuning | ||||
| 01 | Right column A cover | GRAU | 1 | 51437124772 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 02 | Cover cap "Airbag" | SCHWARZ | 2 | 51432251367 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Cover cap "Airbag" | SAVANNABEIGE | 2 | 51437138816 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 02 | Cover cap "Airbag" | HIMMELGRAU | 2 | 51437066521 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Cover, B-column upper left | ANTHRAZIT | 1 | 51438036259 | $27.90 | ENDED | Shop at ECS Tuning | |||
| 04 | Cover, B-column upper right | ANTHRAZIT | 1 | 51438036260 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 04 | Cover, B-column upper left | BEIGE | 1 | 51437141069 | $27.90 | Shop at ECS Tuning | ||||
| 04 | Cover, B-column upper right | BEIGE | 1 | 51437141070 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Cover, B-column upper left | GRAU | 1 | 51437124785 | $27.90 | Shop at ECS Tuning | ||||
| 04 | Cover, B-column upper right | GRAU | 1 | 51437124786 | $23.30 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 05 | Cover, B-column bottom left | GRAU | 1 | 51437124957 | $21.03 | Shop at ECS Tuning | ||||
| 05 | Cover, B-column bottom right | GRAU | 1 | 51437124958 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 05 | Cover, B-column bottom left | BEIGE | 1 | 51437141099 | $21.03 | Shop at ECS Tuning | ||||
| 05 | Cover, B-column bottom right | BEIGE | 1 | 51437141100 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 05 | Cover, B-column bottom left | SCHWARZ | 1 | 51437141101 | $21.03 | Shop at ECS Tuning | ||||
| 05 | Cover, B-column bottom right | SCHWARZ | 1 | 51437141102 | $21.03 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 06 | Cover column C left | ANTHRAZIT | 1 | 09/2009 | 51438036261 | $25.22 | +core | Shop at ECS Tuning | ||
| 06 | Cover column C right | ANTHRAZIT | 1 | 09/2009 | 51438036262 | $25.22 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid"/beige or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Cover column C left | BEIGE | 1 | 09/2009 | 51437141167 | $25.22 | +core | Shop at ECS Tuning | ||
| 06 | Cover column C right | BEIGE | 1 | 09/2009 | 51437141168 | $25.22 | +core | Shop at ECS Tuning | ||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCSW=Yes |
|||||||||
| 06 | Cover column C left | GRAU | 1 | 09/2009 | 51437124795 | $25.22 | +core | Shop at ECS Tuning | ||
| 06 | Cover column C right | GRAU | 1 | 09/2009 | 51437124796 | $25.22 | Shop at ECS Tuning | |||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 07 | Covering cap | SCHWARZ | 2 | 51438036247 | $1.08 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 07 | Covering cap | SAVANNABEIGE | 2 | 51437141174 | $1.54 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Fabric/leather 'Pearlpoint/anthracite' or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota"/korall-red or Leather "Dakota"/jade gray or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz or Leather, felted nappa/camel or Leather Walknappa/black |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FHAT=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD1=Yes LCD2=Yes LCD3=Yes LCNL=Yes LCSW=Yes LRD4=Yes LRSW=Yes |
|||||||||
| 07 | Covering cap | GRAU | 2 | 51437141173 | $1.54 | Shop at ECS Tuning | ||||
| 10 | sealing | 25X25MM | 6 | 51718163653 | $0.32 | Shop at ECS Tuning | ||||
| 11 | Clip Natur | 10 | 51437001491 | $0.42 | Shop at ECS Tuning | |||||
| 12 | Clamp | 4 | 07147142116 | $0.21 | Shop at ECS Tuning | |||||
| 13 | Torx bolt | ST4,8X32 | 4 | 07149112637 | $0.64 | Shop at ECS Tuning | ||||
| 14 | Bracket, column C cover, left | 1 | 51437144341 | $3.71 | Shop at ECS Tuning | |||||
| 14 | Bracket, column C cover, right | 1 | 51437144342 | $3.71 | Shop at ECS Tuning | |||||
| 15 | Sheet metal screw | ST5,5X13 SW | 4 | 07119901338 | $0.29 | Shop at ECS Tuning | ||||
| 15 | Sheet metal screw | ST5,5X16 SW | 4 | 07119901339 | $0.25 | Shop at ECS Tuning | ||||
| 15 | Sheet metal screw | ST4,2X13 | 6 | 07119904336 | $0.09 | Shop at ECS Tuning | ||||
| 16 | Clip, cover for column B | 2 | 51337162282 | $0.29 | Shop at ECS Tuning | |||||
| 17 | Fillister-head screw | 2 | 07146964260 | $0.17 | Shop at ECS Tuning | |||||
| 18 | Cover cap support | 2 | 51437006830 | $0.64 | Shop at ECS Tuning | |||||
| 22 | Blind rivet nut, flat headed | M5 | 1 | 07147110996 | $1.65 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
