Floor covering for BMW 3 Series E90 320i (2007)

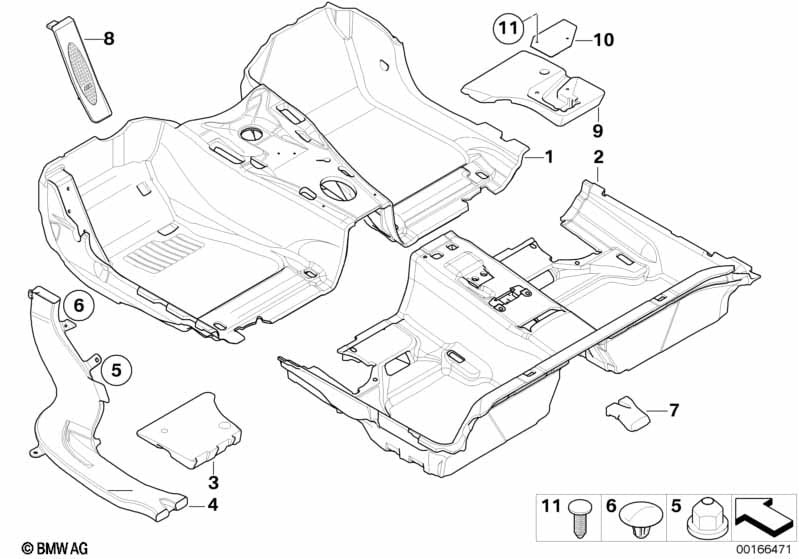

This Floor covering technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Floor trim cover, front | ANTHRAZIT | 1 | 51477265874 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Floor trim cover, front | GRAU | 1 | 51477265875 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige or Leather "Dakota"/terra |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes LCB8=Yes |
|||||||||
| 01 | Floor trim cover, front | BEIGE | 1 | 51477265876 | Shop at ECS Tuning | |||||
| 02 | Floor covering rear | ANTHRAZIT | 1 | 51477265890 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Fabric "Diagonal/gray" or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes AWAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Floor covering rear | GRAU | 1 | 51477265891 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige or Leather "Dakota"/terra |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes LCB8=Yes |
|||||||||
| 02 | Floor covering rear | BEIGE | 1 | 51477265892 | $272.46 | Shop at ECS Tuning | ||||
| 03 | Foam insert footwell front right | 1 | 51477066980 | $6.73 | Shop at ECS Tuning | |||||
| 03 | Foam insert footwell front left | 1 | 51477075862 | $9.04 | Shop at ECS Tuning | |||||
| For vehicles with USB/Audio interface |
S6FLA=Yes |
|||||||||
| 03 | Foam insert footwell front left | 1 | 51479125335 | Shop at ECS Tuning | ||||||
| 04 | Heater duct rear left | 1 | 51477058143 | $10.00 | Shop at ECS Tuning | |||||
| 04 | Heater duct rear right | 1 | 51477058144 | $10.00 | Shop at ECS Tuning | |||||
| 05 | Cap nut | M5 | 3 | 51711934930 | $0.23 | Shop at ECS Tuning | ||||
| 06 | Clip | H=15MM | 3 | 51481924909 | $0.42 | Shop at ECS Tuning | ||||
| 07 | Foam insert, hand brake bowden cable | 1 | 51476950853 | $1.12 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
