Rear window shelf / sun blind electr. for BMW 3 Series E90 320d (2008)

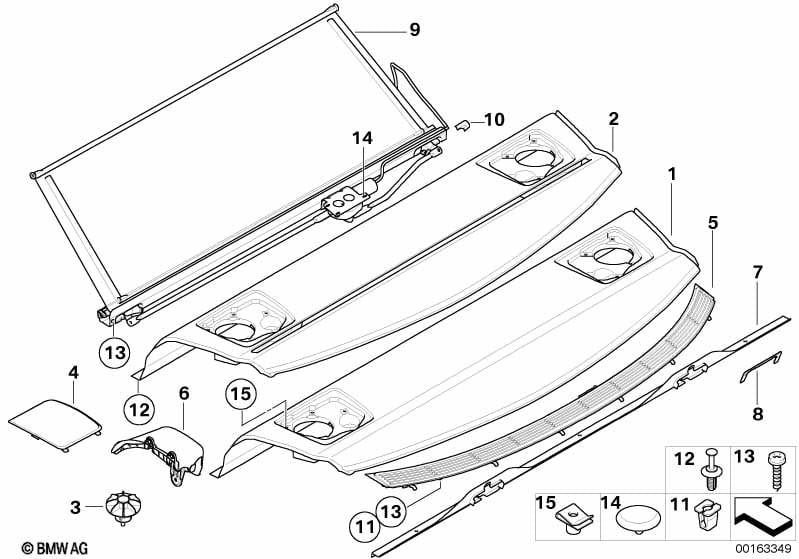

This Rear window shelf / sun blind electr. technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Sun-blind, rear |
S415A=No |
|||||||||
| 01 | Rear window shelf | GRAU | 1 | 51467124961 | $159.38 | +core | Shop at ECS Tuning | |||
| 01 | Rear window shelf | BEIGE | 1 | 51467141209 | $159.38 | +core | Shop at ECS Tuning | |||
| 01 | Rear window shelf | ANTHRAZIT | 1 | 51467141210 | $159.38 | Shop at ECS Tuning | ||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 02 | Rear window shelf | GRAU | 1 | 51467124963 | $159.38 | +core | Shop at ECS Tuning | |||
| 02 | Rear window shelf | ANTHRAZIT | 1 | 51467141214 | $159.38 | +core | Shop at ECS Tuning | |||
| For vehicles with Sun-blind, rear and Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
S415A=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Rear window shelf | BEIGE | 1 | 51467141213 | $159.38 | +core | Shop at ECS Tuning | |||
| 03 | Support for console | 2 | 51466951055 | $2.23 | Shop at ECS Tuning | |||||
| 04 | Cover Loudspeaker | GRAU | 2 | 51467124928 | $14.81 | Shop at ECS Tuning | ||||
| 04 | Cover Loudspeaker | BEIGE | 2 | 51467139343 | $15.92 | Shop at ECS Tuning | ||||
| 04 | Cover Loudspeaker | ANTHRAZIT | 2 | 51467139344 | $13.54 | Shop at ECS Tuning | ||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP |
S676A=Yes S677A=Yes |
|||||||||
| 04 | Cover Loudspeaker | GRAU | 2 | 51467124928 | $14.81 | Shop at ECS Tuning | ||||
| 04 | Cover Loudspeaker | BEIGE | 2 | 51467139343 | $15.92 | Shop at ECS Tuning | ||||
| 04 | Cover Loudspeaker | ANTHRAZIT | 2 | 51467139344 | $13.54 | Shop at ECS Tuning | ||||
| 05 | Ventilation grille | GRAU | 1 | 51467124914 | $34.30 | Shop at ECS Tuning | ||||
| 05 | Ventilation grille | BEIGE | 1 | 51467139341 | $34.30 | +core | Shop at ECS Tuning | |||
| 05 | Ventilation grille | ANTHRAZIT | 1 | 51467139342 | $34.30 | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet | GRAU | 3 | 51467125997 | $2.13 | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet | BEIGE | 3 | 51467139345 | $2.13 | Shop at ECS Tuning | ||||
| 06 | Cover, belt outlet | ANTHRAZIT | 3 | 51467139346 | $2.13 | Shop at ECS Tuning | ||||
| 07 | Rear cross member cover | 1 | 51467123386 | $19.13 | +core | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 08 | Counterplate trim load-through system | 2 | 51467140774 | $1.15 | Shop at ECS Tuning | |||||
| For vehicles with Sun-blind, rear |
S415A=Yes |
|||||||||
| 09 | Electric sun blind | 1 | 51469149848 | $418.86 | Shop at ECS Tuning | |||||
| 10 | End cap, left | 1 | 51467135693 | $1.95 | Shop at ECS Tuning | |||||
| 10 | End cap, right | 1 | 51467135694 | $1.95 | Shop at ECS Tuning | |||||
| 11 | Expanding nut | L=15MM, DMAX=12 | 4 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | ST 4.8 | 4 | 63121374075 | $0.23 | Shop at ECS Tuning | ||||
| 12 | Expanding rivet | D = 6MM | 5 | 51111908077 | $0.30 | Shop at ECS Tuning | ||||
| 13 | Sheet metal screw | ST4,8X16 | 3 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 14 | Bump stop kit | 1 | 51466979919 | $3.95 | Shop at ECS Tuning | |||||
| 15 | Body nut | ST4,8-9-ZNS3 | 6 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
