Trunk lid trim panel for BMW 3 Series E90 320d (2008)

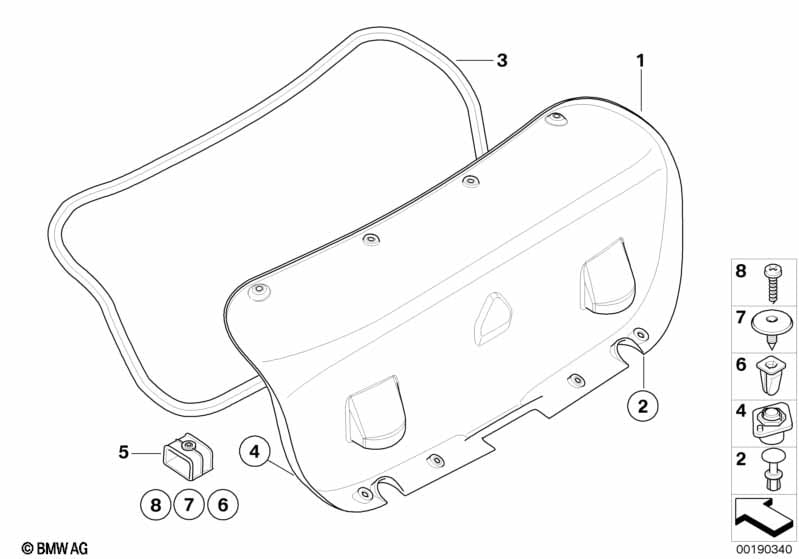

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trunk lid trim panel | 1 | 09/2008 | 51497060634 | $36.84 | ENDED, +core | Shop at ECS Tuning | |||

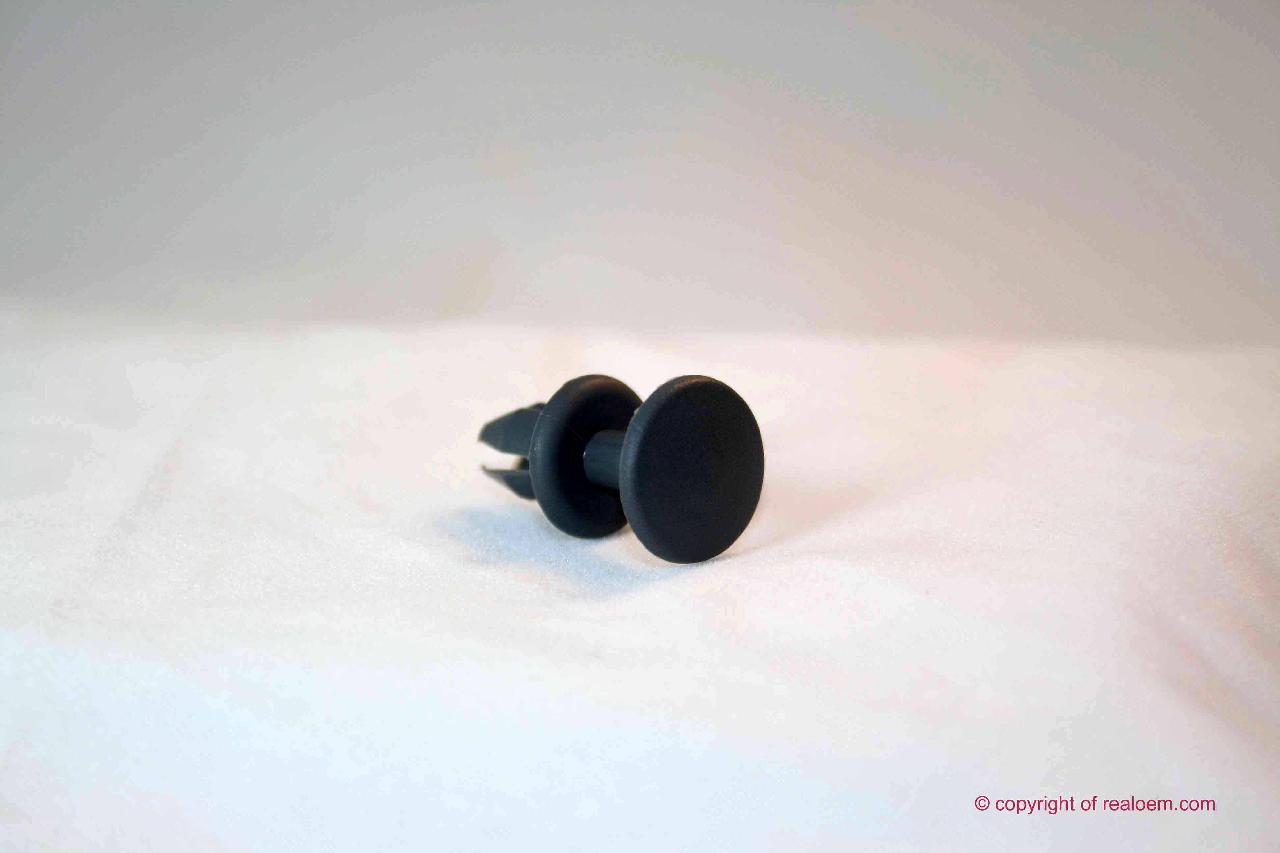

| 02 | Expanding rivet | 8 | 51498237075 | $0.52 | Shop at ECS Tuning | |||||
| 03 | Trunk lid gasket | 1 | 51767182079 | $49.63 | Shop at ECS Tuning |
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 320d Trunk lid trim panel?
- This technical diagram illustrates the Trunk lid trim panel within the Vehicle trim group for the 3 Series E90 320d produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Trunk lid trim panel (Part #51497060634).
- Which models use the hardware listed in this Trunk lid trim panel?
- The hardware and components featured in the Trunk lid trim panel are specific to the 3 Series E90 320d produced during 2008. These technical specifications ensure that parts like the Trunk lid trim panel (51497060634) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Trunk lid trim panel assembly?
- Each item in the Trunk lid trim panel corresponds to the numbered list below the illustration. For the 3 Series E90 320d, you can identify the Trunk lid trim panel by locating its position on the schematic, which then links to the official BMW part number 51497060634 for the Vehicle trim section.
