Sound insulating rear for BMW 3 Series E90 LCI 325i (2012)

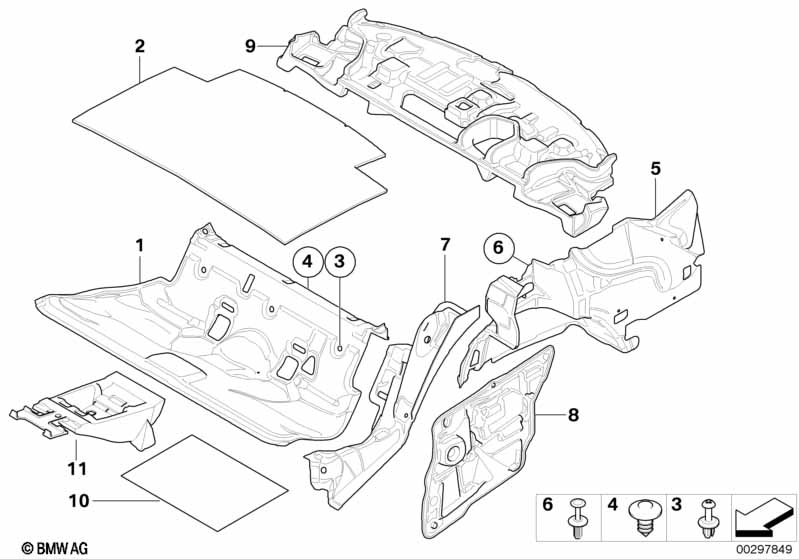

This Sound insulating rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Sound insulation floor rear | 1 | 51487058128 | $25.58 | Shop at ECS Tuning | |||||
| 02 | Sound insulating roof rear | 1 | 51487058354 | $17.39 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | D=11,3MM | 2 | 51717001494 | $0.82 | Shop at ECS Tuning | ||||
| 04 | Clip | D=30MM | 3 | 51488245867 | $0.35 | Shop at ECS Tuning | ||||
| 05 | Sound insulation trunk left | 1 | 51487070521 | $19.65 | Shop at ECS Tuning | |||||
| 05 | Sound insulation trunk right | 1 | 51487070522 | $24.47 | Shop at ECS Tuning | |||||
| 06 | Expanding rivet | D = 8MM | 1 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| For vehicles with Through-loading system |
S465A=Yes |
|||||||||
| 07 | Sound insulating wheel housing rear left | 1 | 51487058125 | $12.77 | Shop at ECS Tuning | |||||
| 07 | Sound insulating wheel housing rear rig. | 1 | 51487058126 | $12.77 | Shop at ECS Tuning | |||||
| 08 | Sound insulating door rear left | 1 | 51487161455 | $32.65 | Shop at ECS Tuning | |||||
| 08 | Sound insulating door rear right | 1 | 51487161456 | $32.65 | Shop at ECS Tuning | |||||
| For vehicles with HiFi System Professional DSP |
S677A=Yes |
|||||||||
| 08 | Sound insulating door rear left | 1 | 09/2007 | 51487211429 | $31.81 | Shop at ECS Tuning | ||||
| 08 | Sound insulating door rear right | 1 | 09/2007 | 51487211430 | $31.81 | Shop at ECS Tuning | ||||
| 09 | Sound insulating front trunk panel | 1 | 51487066993 | $28.37 | Shop at ECS Tuning | |||||
| 10 | Sound deadener, door | 4 | 41007164849 | $25.68 | Shop at ECS Tuning | |||||
| 10 | Sound deadener | 1160X700MM | 1 | 51488165271 | $50.35 | Shop at ECS Tuning | ||||
