Front panel/body parts, engine compartm for BMW 3 Series E90 330i (2005)

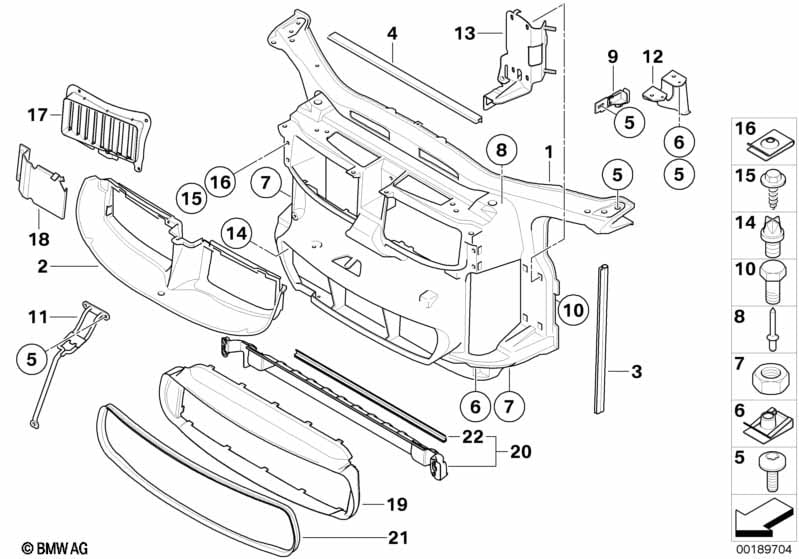

This Front panel/body parts, engine compartm technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2005.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 51647058594 | $279.43 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and M Aerodynamics package |
S1CBA=Yes S715A=No |
|||||||||
| 01 | Front panel | 1 | 51647173564 | $279.43 | Shop at ECS Tuning | |||||
| For vehicles with CO2 package and M Aerodynamics package |
S1CBA=No S715A=Yes |
|||||||||
| 01 | Front panel | -M- | 1 | 51718040280 | $279.43 | +core | Shop at ECS Tuning | |||
| 02 | Air guidance, top front | 1 | 51117134099 | $20.08 | Shop at ECS Tuning | |||||
| 03 | Seal, cooling module | 2 | 51647134101 | $3.17 | Shop at ECS Tuning | |||||
| 04 | Seal, front panel/cooler at top | 1 | 51647134102 | $4.25 | Shop at ECS Tuning | |||||
| 05 | Torx bolt | ISA M6X18 SW | 24 | 04/2010 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 05 | Torx-bolt with washer | M6X12 | 4 | 04/2010 | 07146985055 | $0.38 | Shop at ECS Tuning | |||
| 06 | Clip nut | M6 | 16 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| 07 | Hex nut | M6 | 2 | 07146988146 | $0.47 | Shop at ECS Tuning | ||||
| 07 | Hex nut with plate | M8 | 8 | 51117070183 | $0.77 | Shop at ECS Tuning | ||||
| 08 | Blind rivet | 5 MM | 2 | 07147126190 | $0.45 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X52-10.9 | 4 | 07146989591 | $4.59 | Shop at ECS Tuning | ||||
| 10 | Hex bolt | M6X12 | 2 | 07147154229 | $0.19 | Shop at ECS Tuning | ||||
| 11 | Brace for catch | 1 | 51647116693 | $15.85 | Shop at ECS Tuning | |||||
| 12 | Lock plate, left | 1 | 51647116705 | $19.43 | Shop at ECS Tuning | |||||
| 12 | Lock plate, right | 1 | 51647116706 | $19.43 | Shop at ECS Tuning | |||||
| 13 | Locat. plate f. cool. mod., lower left | 1 | 51647117811 | $8.98 | Shop at ECS Tuning | |||||
| 13 | Locat. plate f. cool. mod.,lower right | 1 | 51647117812 | $8.98 | Shop at ECS Tuning | |||||
| For vehicles with Auxiliary heating |
S536A=Yes |
|||||||||
| 13 | Locat. plate f. cool. mod., lower left | 1 | 51647154545 | $25.88 | Shop at ECS Tuning | |||||
| 13 | Locat. plate f. cool. mod.,lower right | 1 | 51647154546 | $39.13 | Shop at ECS Tuning | |||||
| 14 | Water outlet valve | 4 | 54137060976 | $2.98 | Shop at ECS Tuning | |||||
| 15 | Hex head screw with washer | ST4,8X16MM | 9 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 15 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 16 | Body nut | ST4,8-16-ZNS3 | 2 | 07129904243 | $0.36 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E90 330i Front panel/body parts, engine compartm?
- This technical diagram illustrates the Front panel/body parts, engine compartm within the Vehicle trim group for the 3 Series E90 330i produced during 2005. It provides a detailed exploded view of the components, identifying key parts such as the Front panel (Part #51647058594).
- Which models use the hardware listed in this Front panel/body parts, engine compartm?
- The hardware and components featured in the Front panel/body parts, engine compartm are specific to the 3 Series E90 330i produced during 2005. These technical specifications ensure that parts like the Front panel (51647058594) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Front panel/body parts, engine compartm assembly?
- Each item in the Front panel/body parts, engine compartm corresponds to the numbered list below the illustration. For the 3 Series E90 330i, you can identify the Front panel by locating its position on the schematic, which then links to the official BMW part number 51647058594 for the Vehicle trim section.
