Carrier, front for BMW 7 Series E67 760LiS (2008)

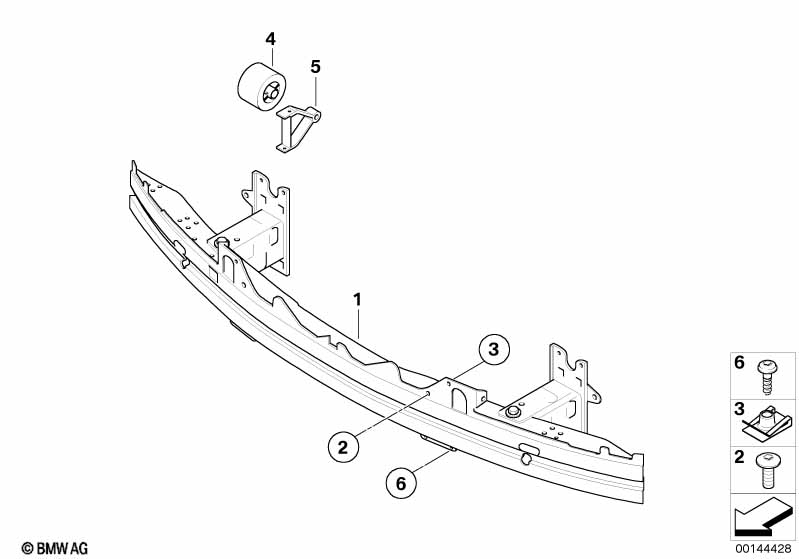

This Carrier, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 760LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Carrier, bumper front | 1 | 03/2005 | 51117135522 | $339.83 | +core | Shop at ECS Tuning | |||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier, bumper front | 1 | 03/2005 | 51117135523 | $373.82 | +core | Shop at ECS Tuning | |||
| 02 | Torx bolt | ISA M6X18 SW | 10 | 03/2005 | 07146959923 | $0.55 | Shop at ECS Tuning | |||
| 03 | C-clip nut | M6-ZNS3 | 10 | 03/2005 | 51127070202 | $1.00 | Shop at ECS Tuning | |||
Notes
- +core = plus core charge (possibility of a return of the old part)
