Trim, decor elements, front for BMW 7 Series E65 730i (2008)

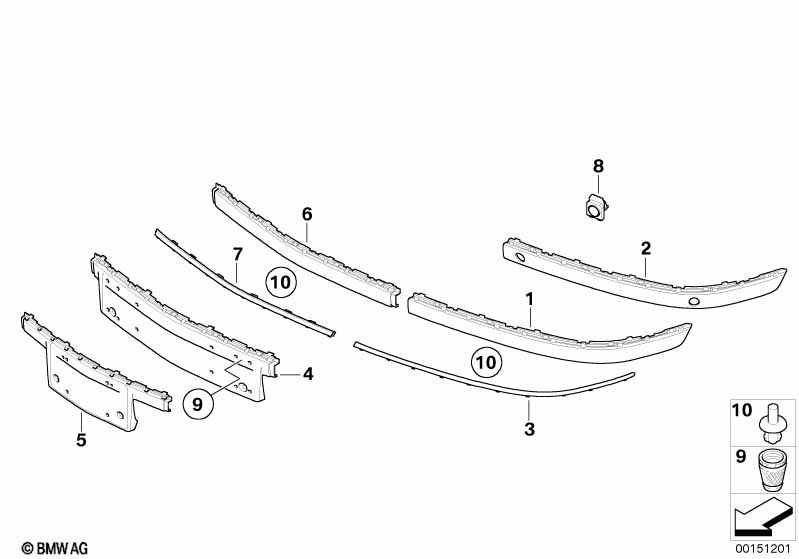

This Trim, decor elements, front technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 730i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper guard, painted, front left | CODE - UNI/MET. | 1 | 03/2005 | 51110399069 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Bumper guard, painted, front right | CODE - UNI/MET. | 1 | 03/2005 | 51110399070 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Bumper guard, primed, front left | CHROMLINE | 1 | 03/2005 | 51117142197 | $61.72 | Shop at ECS Tuning | |||
| 01 | Bumper guard, primed, front right | CHROMLINE | 1 | 03/2005 | 51117142198 | $61.72 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 02 | Bumper guard, painted, front left | CODE - UNI/MET. | 1 | 03/2005 | 51110399071 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Bumper guard, painted, front right | CODE - UNI/MET. | 1 | 03/2005 | 51110399072 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Bumper guard, primed, front left | CHROMLINE | 1 | 03/2005 | 51117142245 | $61.72 | +core | Shop at ECS Tuning | ||
| 02 | Bumper guard, primed, front right | CHROMLINE | 1 | 03/2005 | 51117142246 | $61.72 | +core | Shop at ECS Tuning | ||
| 03 | Finisher, protective moulding, left | CHROMLINE | 1 | 03/2005 | 51117135557 | $22.89 | ENDED | Shop at ECS Tuning | ||
| 03 | Finisher, protective moulding, right | CHROMLINE | 1 | 03/2005 | 51117135558 | $22.89 | Shop at ECS Tuning | |||
| 04 | Licence plate base painted | CODE - UNI/MET. | 1 | 03/2005 | 51110399073 | ENDED, +core | Shop at ECS Tuning | |||
| 04 | Licence plate base primed | CHROMLINE | 1 | 03/2005 | 51117142196 | $48.72 | Shop at ECS Tuning | |||
| For vehicles with National version japan |
L807A=Yes |
|||||||||
| 05 | Licence plate base primed | CHROMLINE | 1 | 03/2005 | 51117142202 | $55.61 | Shop at ECS Tuning | |||
| For vehicles with Deleted, licence plate support front |
S962A=Yes |
|||||||||
| 06 | Protective mouldings, center, primed | CHROMLINE | 1 | 51117142211 | $61.72 | +core | Shop at ECS Tuning | |||
| 07 | Finisher, licence plate base | CHROMLINE | 1 | 03/2005 | 51117135534 | $44.06 | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 08 | Bracket ultrasonic sensor | 4 | 03/2005 | 51117142195 | $1.12 | Shop at ECS Tuning | ||||
| 09 | Threaded bush | M6 | 2 | 03/2005 | 11611716166 | $0.68 | Shop at ECS Tuning | |||
| 10 | Expanding rivet | X | 03/2005 | 07147148444 | Shop at ECS Tuning | |||||
| only applies to | ||||||||||
| -- | Finisher, licence plate base | CHROMLINE | X | 03/2005 | 51117135534 | $44.06 | Shop at ECS Tuning | |||
| -- | Finisher, protective moulding, left | CHROMLINE | X | 03/2005 | 51117135557 | $22.89 | ENDED | Shop at ECS Tuning | ||
| -- | Finisher, protective moulding, right | CHROMLINE | X | 03/2005 | 51117135558 | $22.89 | Shop at ECS Tuning | |||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
