Trim, decor elements, rear for BMW 7 Series E65 750i (2008)

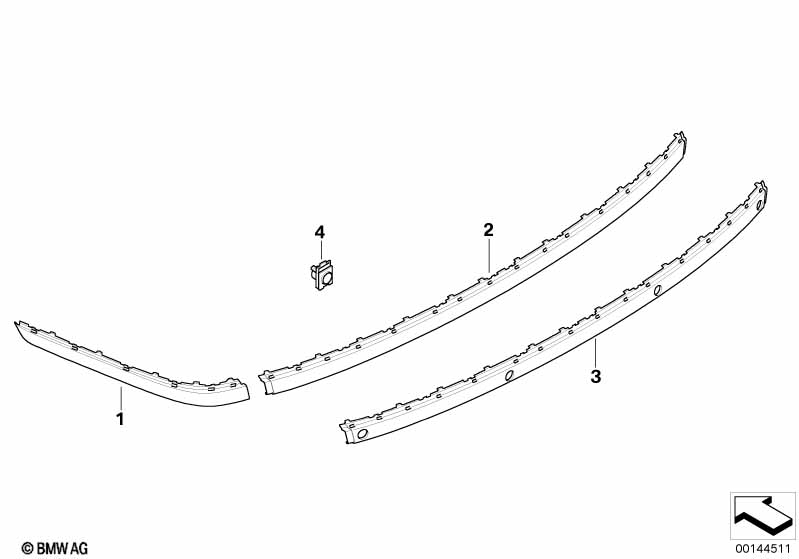

This Trim, decor elements, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E65 750i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Bumper guard, primed, rear left | 1 | 03/2005 | 51127142217 | $35.85 | +core | Shop at ECS Tuning | |||
| 01 | Bumper guard, primed, rear right | 1 | 03/2005 | 51127142218 | $35.85 | +core | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line When ordering indicate color code |
S760A=Yes |
|||||||||
| 01 | Bumper guard, painted, rear left | CODE - UNI/MET. | 1 | 03/2005 | 51120399078 | ENDED, +core | Shop at ECS Tuning | |||
| 01 | Bumper guard, painted, rear right | CODE - UNI/MET. | 1 | 03/2005 | 51120399079 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Protective mouldings, center, primed | 1 | 03/2005 | 51127142221 | $69.10 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line When ordering indicate color code |
S760A=Yes |
|||||||||
| 02 | Protective mouldings, center, painted | CODE - UNI/MET. | 1 | 03/2005 | 51120399080 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and High gloss shadow line |
S508A=Yes S760A=Yes |
|||||||||
| 03 | Protective mouldings, center, primed | 1 | 03/2005 | 51127142223 | $69.10 | +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and High gloss shadow line When ordering indicate color code |
S508A=Yes S760A=Yes |
|||||||||
| 03 | Protective mouldings, center, painted | CODE - UNI/MET. | 1 | 03/2005 | 51120399081 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Park Distance Control (PDC) and High gloss shadow line |
S508A=Yes S760A=Yes |
|||||||||
| 04 | Bracket ultrasonic sensor | 1 | 03/2005 | 51127142233 | $0.82 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
