Trim cover, rear for BMW 7 Series E66 740Li (2008)

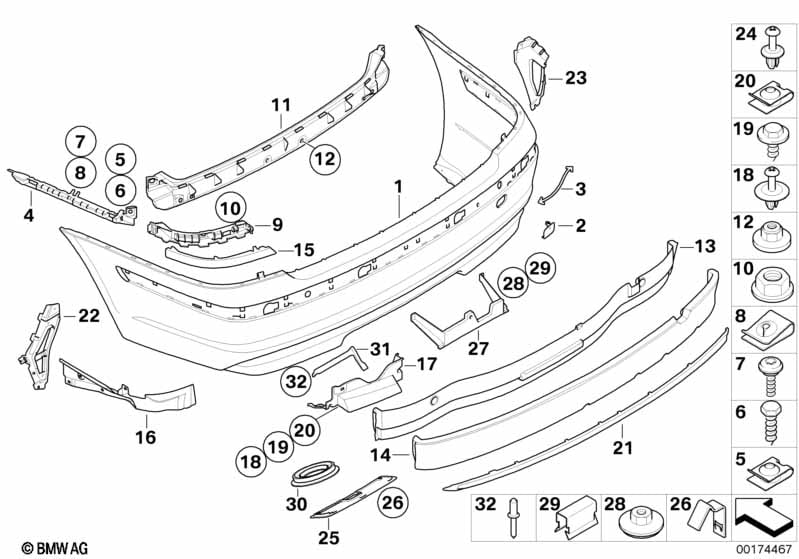

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 740Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 03/2005 | 51127142214 | $666.63 | +core | Shop at ECS Tuning | |||
| When ordering indicate color code | ||||||||||
| 01 | Bumper trim panel, painted, rear | CODE - UNI/MET. | 1 | 03/2005 | 51120399100 | $1351.05 | ENDED | Shop at ECS Tuning | ||
| 02 | Flap, towing eye, primed | 1 | 03/2005 | 51127142216 | $12.39 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 02 | Flap, towing eye, painted | CODE - UNI/MET. | 1 | 03/2005 | 51120399103 | $60.75 | ENDED, +core | Shop at ECS Tuning | ||
| 03 | Holding strap | 1 | 03/2005 | 51111973721 | $0.77 | Shop at ECS Tuning | ||||
| 04 | Mount, lateral rear left | 1 | 03/2005 | 51127135607 | $19.50 | Shop at ECS Tuning | ||||
| 04 | Mount, lateral rear right | 1 | 03/2005 | 51127135608 | $19.50 | Shop at ECS Tuning | ||||
| 05 | Body nut | ST4,8-16-ZNS3 | 2 | 03/2005 | 07129904243 | $0.36 | Shop at ECS Tuning | |||
| 06 | Sheet metal screw | 2 | 03/2005 | 07119905508 | $0.38 | Shop at ECS Tuning | ||||
| 07 | Fillister head screw | 6 | 03/2005 | 07146959896 | $0.38 | Shop at ECS Tuning | ||||
| 08 | Body nut | ST4,8-13-ZNS3 | 6 | 03/2005 | 07129904223 | $0.11 | Shop at ECS Tuning | |||
| 09 | Mount, rear left | 1 | 03/2005 | 51127123797 | $19.50 | Shop at ECS Tuning | ||||
| 09 | Mount, rear right | 1 | 03/2005 | 51127123798 | $19.50 | Shop at ECS Tuning | ||||
| 10 | Hex nut | M6 | 6 | 03/2005 | 51717065987 | $0.79 | Shop at ECS Tuning | |||
| 11 | Guide, bottom center | 1 | 03/2005 | 51127155447 | $17.72 | Shop at ECS Tuning | ||||
| 12 | Self-locking hex nut | M6 | 4 | 03/2005 | 51128400432 | $0.79 | Shop at ECS Tuning | |||
| 13 | Shock absorber, rear | 1 | 03/2005 | 51127135581 | $44.79 | +core | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 14 | Shock absorber, rear | 1 | 03/2005 | 51127135589 | $44.79 | +core | Shop at ECS Tuning | |||
| 15 | Finisher, rear light, primed left | 1 | 03/2005 | 51127156771 | $25.34 | Shop at ECS Tuning | ||||
| 15 | Finisher, rear light, primed right | 1 | 03/2005 | 51127156772 | $25.34 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 15 | Finisher, rear light, painted left | CODE - UNI/MET. | 1 | 03/2005 | 51120399109 | $93.73 | ENDED, +core | Shop at ECS Tuning | ||
| 15 | Finisher, rear light, painted right | CODE - UNI/MET. | 1 | 03/2005 | 51120399110 | ENDED, +core | Shop at ECS Tuning | |||
| 16 | Heat insulation, cross rear left | 1 | 03/2005 | 51127042125 | $25.28 | Shop at ECS Tuning | ||||
| 17 | Heat insulation, cross rear left | 1 | 03/2005 | 51127173577 | $25.28 | +core | Shop at ECS Tuning | |||
| 18 | Expanding rivet | D=7,5MM | 7 | 03/2005 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| 19 | Hex head screw with washer | ST4,8X16MM | 1 | 03/2005 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| 20 | Body nut | ST4,8-16-ZNS3 | 1 | 03/2005 | 07129904243 | $0.36 | Shop at ECS Tuning | |||
| 21 | Cover, rear bottom | 1 | 03/2005 | 51127135580 | $8.23 | Shop at ECS Tuning | ||||
| 22 | Support left | 1 | 03/2005 | 51128245315 | $10.97 | Shop at ECS Tuning | ||||
| 23 | Support right | 1 | 03/2005 | 51127035418 | $10.97 | Shop at ECS Tuning | ||||
| 24 | Expanding rivet | D=7,5MM | 4 | 03/2005 | 51481915964 | $0.43 | Shop at ECS Tuning | |||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 25 | Trailer hitch flap, painted | CODE - UNI/MET. | 1 | 03/2005 | 51120399107 | $160.65 | ENDED, +core | Shop at ECS Tuning | ||
| 25 | Trailer hitch flap, prime-coated | 1 | 03/2005 | 51127142226 | Shop at ECS Tuning | |||||
| 26 | Clamp | 2 | 03/2007 | 07146961197 | $0.40 | Shop at ECS Tuning | ||||
| 27 | Frame | 1 | 03/2005 | 51127135590 | $6.17 | ENDED | Shop at ECS Tuning | |||
| 28 | Plastic nut | 1 | 03/2005 | 51711958025 | $0.26 | Shop at ECS Tuning | ||||
| 29 | Clamp | 2 | 03/2005 | 51121946136 | $0.79 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
