Emblems / letterings for BMW 7 Series E66 750Li (2008)
This Emblems / letterings technical drawing provides a detailed breakdown of the assembly for the 7 Series E66 750Li. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|

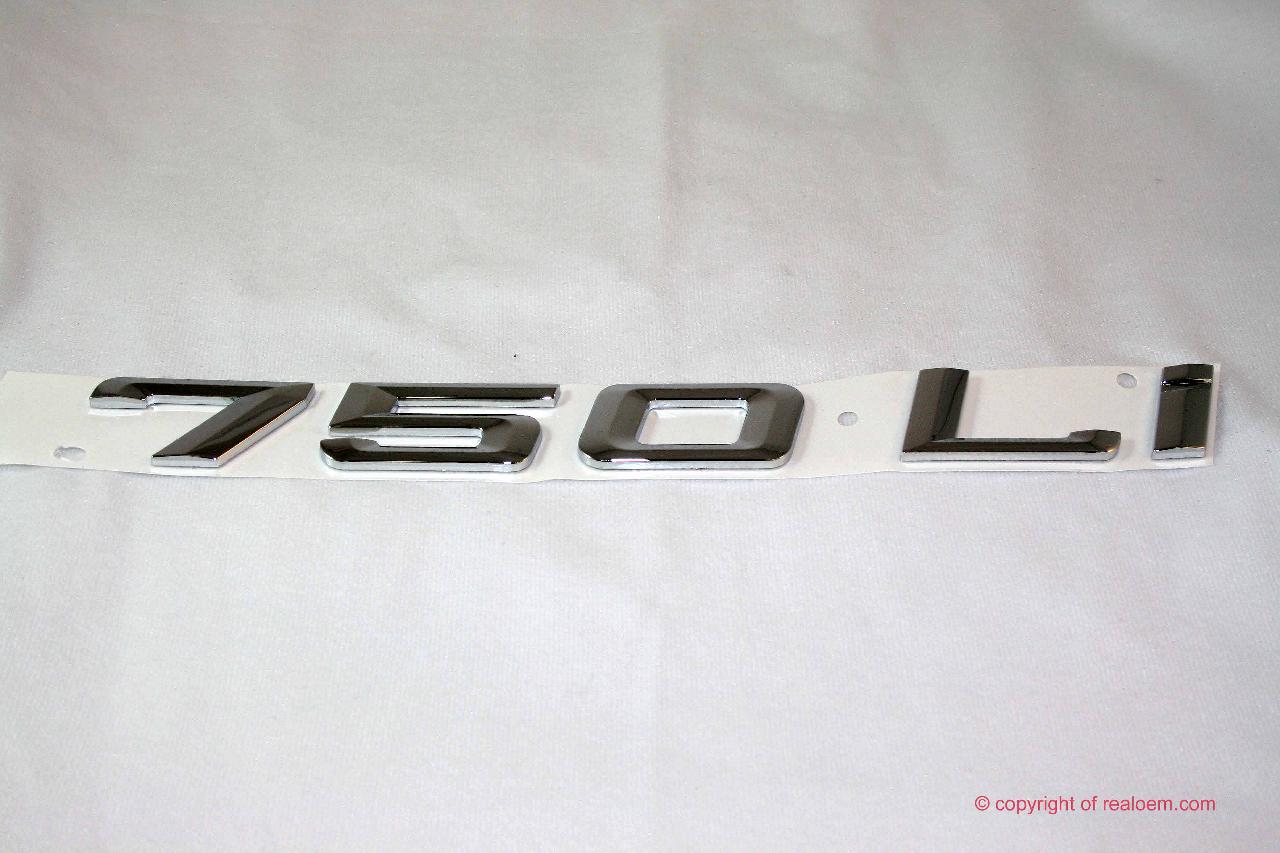

| 09 | Label | - 750LI - | 1 | 03/2005 | 51147148195 | $39.60 | Shop at ECS Tuning | |||
| only applies to hood | ||||||||||
| 14 | Badge | Ø 82MM | 1 | 03/2005 | 51148132375 | $32.02 | Shop at ECS Tuning | |||
| Required for repair | ||||||||||
| -- | Grommet | 2 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
| only applies to trunk lid | ||||||||||
| 15 | Badge | 1 | 03/2005 | 51147135356 | $32.02 | Shop at ECS Tuning | ||||
| 16 | Grommet | 4 | 03/2005 | 51141807495 | $0.68 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 7 Series E66 750Li Emblems / letterings?
- This technical diagram illustrates the Emblems / letterings within the Vehicle trim group for the 7 Series E66 750Li produced during 2008. It provides a detailed exploded view of the components, identifying key parts such as the Label (Part #51147148195).
- Which models use the hardware listed in this Emblems / letterings?
- The hardware and components featured in the Emblems / letterings are specific to the 7 Series E66 750Li produced during 2008. These technical specifications ensure that parts like the Label (51147148195) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Emblems / letterings assembly?
- Each item in the Emblems / letterings corresponds to the numbered list below the illustration. For the 7 Series E66 750Li, you can identify the Label by locating its position on the schematic, which then links to the official BMW part number 51147148195 for the Vehicle trim section.
