Exterior trim / grill for BMW 7 Series E67 745LiS (2008)

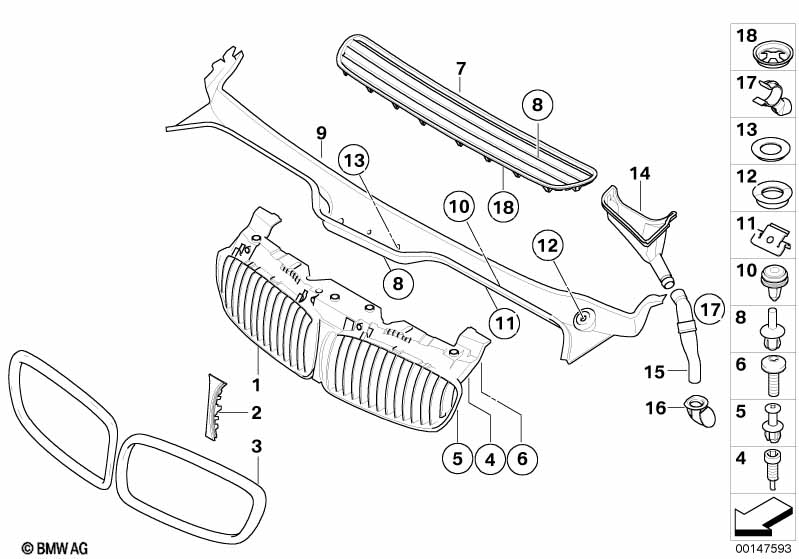

This Exterior trim / grill technical drawing provides a detailed breakdown of the assembly for the 7 Series E67 745LiS. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille, frame, front | 1 | 03/2005 | 51137145738 | $77.61 | Shop at ECS Tuning | ||||
| 02 | Grille, front, painted | CODE - UNI/MET. | 1 | 03/2005 | 51130399706 | ENDED, +core | Shop at ECS Tuning | |||
| 02 | Grille, front, primed | 1 | 03/2005 | 51137149508 | $43.00 | +core | Shop at ECS Tuning | |||
| 03 | Trim ring, front, left | 1 | 03/2005 | 51137145739 | $37.95 | Shop at ECS Tuning | ||||
| 03 | Trim ring, front, right | 1 | 03/2005 | 51137145740 | $37.95 | Shop at ECS Tuning | ||||
| 04 | Adjusting screw | 4 | 03/2005 | 51137026934 | $1.83 | Shop at ECS Tuning | ||||
| 05 | Expanding rivet | 2 | 03/2005 | 51137026935 | $1.48 | Shop at ECS Tuning | ||||
| 06 | Torx bolt | M6X22 | 2 | 03/2005 | 07147075867 | $0.65 | Shop at ECS Tuning | |||
| 07 | Grille, air inlet, primed | 1 | 03/2005 | 51137026324 | $78.75 | Shop at ECS Tuning | ||||
| When ordering indicate color code | ||||||||||
| 07 | Grille, air inlet, painted | CODE - UNI/MET. | 1 | 03/2005 | 51130136986 | ENDED, +core | Shop at ECS Tuning | |||
| 08 | Expanding rivet | X | 03/2005 | 51467002606 | $0.45 | Shop at ECS Tuning | ||||
| 09 | Cover, windshield | 1 | 03/2005 | 51717115899 | Shop at ECS Tuning | |||||
| 10 | Clip | 9 | 03/2005 | 51718234698 | $0.92 | Shop at ECS Tuning | ||||
| 11 | Holder | 2 | 03/2005 | 51717018997 | $1.79 | Shop at ECS Tuning | ||||
| 12 | Gasket ring | 1 | 03/2005 | 51718204864 | $1.72 | Shop at ECS Tuning | ||||
| 13 | Gasket | 2 | 03/2005 | 51718233437 | $1.72 | Shop at ECS Tuning | ||||
| 14 | Water drain, left | 1 | 03/2005 | 41617000923 | $13.71 | ENDED | Shop at ECS Tuning | |||
| 14 | Water drain, right | 1 | 03/2005 | 41617000924 | $13.71 | ENDED | Shop at ECS Tuning | |||
| 15 | Water outlet hose front | 2 | 03/2005 | 51717027043 | $17.41 | Shop at ECS Tuning | ||||
| 16 | Water valve | 2 | 03/2005 | 51717027045 | $7.02 | ENDED | Shop at ECS Tuning | |||
| 17 | Bracket, water drain hose | 2 | 03/2005 | 51717019001 | $4.44 | Shop at ECS Tuning | ||||
