Exterior trim / Grille / Seals for BMW 3 Series E91 LCI 320xd (2012)

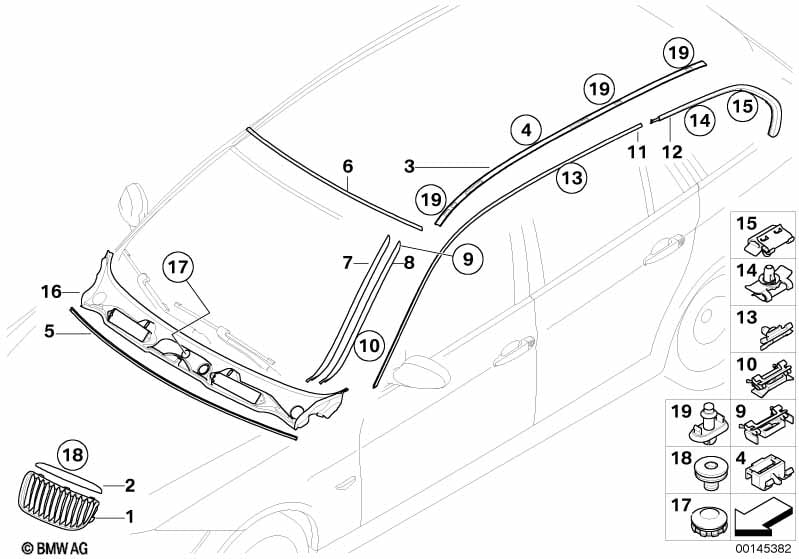

This Exterior trim / Grille / Seals technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Grille w chrome frame, left | 1 | 09/2008 | 51137201967 | $59.34 | Shop at ECS Tuning | ||||
| 01 | Grille w chrome frame, right | 1 | 09/2008 | 51137201968 | $59.34 | Shop at ECS Tuning | ||||
| 01 | Grille left | CHROM | 1 | 09/2008 | 51137201969 | $59.34 | Shop at ECS Tuning | |||
| 01 | Grille right | CHROM | 1 | 09/2008 | 51137201970 | $59.34 | Shop at ECS Tuning | |||
| 03 | Roof molding prime-coated left | 1 | 51137124257 | $122.45 | Shop at ECS Tuning | |||||
| 03 | Roof molding prime-coated right | 1 | 51137124258 | $122.45 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 03 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130033781 | ENDED | Shop at ECS Tuning | ||||
| 03 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130033782 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Roof railing |
S386A=Yes |
|||||||||
| 03 | Roof molding left | 1 | 51137124259 | $81.73 | Shop at ECS Tuning | |||||
| 03 | Roof molding right | 1 | 51137124260 | $81.73 | Shop at ECS Tuning | |||||
| 04 | Clip | 9 | 51137073553 | $0.85 | Shop at ECS Tuning | |||||
| 05 | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| 06 | Cover, windshield, top | 1 | 51317061967 | $20.57 | Shop at ECS Tuning | |||||
| WITHOUT GASKET |
||||||||||
| 07 | Drip moulding, left | SCHWARZ MATT | 1 | 03/2010 | 51137265163 | Shop at ECS Tuning | ||||
| 07 | Drip molding, right | SCHWARZ MATT | 1 | 03/2010 | 51137265164 | Shop at ECS Tuning | ||||
| 08 | Gasket left | 1 | 51137184005 | $17.88 | Shop at ECS Tuning | |||||
| 08 | Gasket right | 1 | 51137184006 | $17.88 | Shop at ECS Tuning | |||||
| 09 | Clip | SCHWARZ | 8 | 51137145109 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Clip, bottom left | NATUR | 1 | 51137145110 | $2.50 | Shop at ECS Tuning | ||||
| 10 | Clip, bottom right | GRÜN | 1 | 51137172103 | $2.50 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=No S760A=Yes |
|||||||||
| 11 | Trim strip, side frame, left | GLANZSCHWARZ | 1 | 51137220199 | $159.17 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | GLANZSCHWARZ | 1 | 51137220200 | $159.17 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=No S760A=Yes |
|||||||||
| 11 | Trim strip, side frame, left | GLANZSCHWARZ | 1 | 51137220199 | $159.17 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | GLANZSCHWARZ | 1 | 51137220200 | $159.17 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=No S760A=Yes |
|||||||||
| 11 | Trim strip, side frame, left | GLANZSCHWARZ | 1 | 51137220199 | $159.17 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | GLANZSCHWARZ | 1 | 51137220200 | $159.17 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=No S346A=No S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | 1 | 51137122873 | $82.83 | Shop at ECS Tuning | |||||
| 11 | Trim strip, side frame, right | 1 | 51137122874 | $82.83 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=Yes S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=No S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=Yes S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=No S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=Yes S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=No S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=No S346A=Yes S760A=No |
|||||||||
| 11 | Trim strip, side frame, left | CHROM | 1 | 51137122875 | $115.55 | Shop at ECS Tuning | ||||
| 11 | Trim strip, side frame, right | CHROM | 1 | 51137122876 | $115.55 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=No S760A=Yes |
|||||||||
| 12 | Molding, side frame, rear left | GLANZSCHWARZ | 1 | 51137220201 | Shop at ECS Tuning | |||||
| 12 | Molding, side frame, rear right | GLANZSCHWARZ | 1 | 51137220202 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=No S760A=Yes |
|||||||||
| 12 | Molding, side frame, rear left | GLANZSCHWARZ | 1 | 51137220201 | Shop at ECS Tuning | |||||
| 12 | Molding, side frame, rear right | GLANZSCHWARZ | 1 | 51137220202 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=No S760A=Yes |
|||||||||
| 12 | Molding, side frame, rear left | GLANZSCHWARZ | 1 | 51137220201 | Shop at ECS Tuning | |||||
| 12 | Molding, side frame, rear right | GLANZSCHWARZ | 1 | 51137220202 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=No S346A=No S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | 1 | 51137129665 | $67.83 | Shop at ECS Tuning | |||||
| 12 | Molding, side frame, rear right | 1 | 51137129666 | $79.73 | Shop at ECS Tuning | |||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=Yes S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=Yes S346A=No S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=Yes S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=Yes P7MDA=No S346A=No S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=Yes S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=Yes S346A=No S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| For vehicles with Exclusive Edition and Lifestyle Edition and Chrome Line exterieur and High gloss shadow line |
P7MCA=No P7MDA=No S346A=Yes S760A=No |
|||||||||
| 12 | Molding, side frame, rear left | CHROM | 1 | 51137129667 | $94.58 | Shop at ECS Tuning | ||||
| 12 | Molding, side frame, rear right | CHROM | 1 | 51137129668 | $94.58 | Shop at ECS Tuning | ||||
| 13 | Clip, moulding, side frame | 13 | 51137117240 | $0.69 | Shop at ECS Tuning | |||||
| 14 | Clamp | SCHWARZ | 4 | 51137157096 | $1.05 | Shop at ECS Tuning | ||||
| 15 | Clamp | GRAU | 1 | 51137157098 | $1.34 | Shop at ECS Tuning | ||||
| 16 | Cover, windshield | 1 | 51717180743 | $31.88 | Shop at ECS Tuning | |||||
| 17 | Cover | D = 38MM | 1 | 05/2006 | 51717169481 | $3.05 | Shop at ECS Tuning | |||
| 18 | Fillister head screw | 6 | 07146960166 | $0.65 | Shop at ECS Tuning | |||||
| not suitable for hand lamp roof rail | ||||||||||
| 19 | Screw | 6 | 07147174961 | $2.56 | Shop at ECS Tuning | |||||
