Roof moulding/Roof rail for BMW 3 Series E91 LCI 325xi (2011)

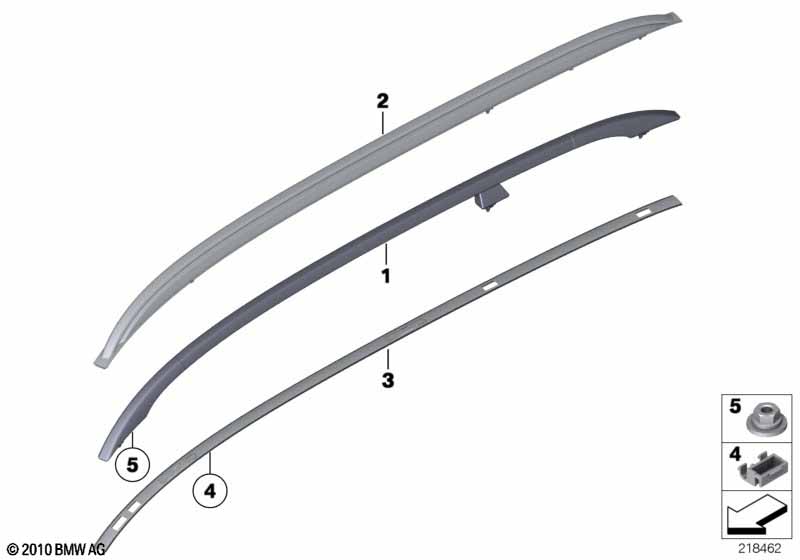

This Roof moulding/Roof rail technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 325xi. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2011.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Roof railing black |
S3AAA=Yes |
|||||||||
| 02 | Roof railing, left | SCHWARZ | 1 | 03/2010 | 51137255485 | Shop at ECS Tuning | ||||
| 02 | Roof railing, right | SCHWARZ | 1 | 03/2010 | 51137255486 | Shop at ECS Tuning | ||||
| For vehicles with Roof rail, aluminum, satin finish |
S3ATA=Yes |
|||||||||
| 02 | Roof railing, left | ALU | 1 | 03/2010 | 51137255483 | Shop at ECS Tuning | ||||
| 02 | Roof railing, right | ALU | 1 | 03/2010 | 51137255484 | Shop at ECS Tuning | ||||
| For vehicles with Roof railing black or Roof rail, aluminum, satin finish |
S3AAA=Yes S3ATA=Yes |
|||||||||
| 05 | Hex nut | 6 | 03/2010 | 07147195759 | $1.16 | Shop at ECS Tuning | ||||
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 325xi Roof moulding/Roof rail?
- This technical diagram illustrates the Roof moulding/Roof rail within the Vehicle trim group for the 3 Series E91 LCI 325xi produced during 2011. It provides a detailed exploded view of the components, identifying key parts such as the Roof railing, left (Part #51137255485).
- Which models use the hardware listed in this Roof moulding/Roof rail?
- The hardware and components featured in the Roof moulding/Roof rail are specific to the 3 Series E91 LCI 325xi produced during 2011. These technical specifications ensure that parts like the Roof railing, left (51137255485) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Roof moulding/Roof rail assembly?
- Each item in the Roof moulding/Roof rail corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 325xi, you can identify the Roof railing, left by locating its position on the schematic, which then links to the official BMW part number 51137255485 for the Vehicle trim section.
