Trim cover, rear for BMW 3 Series E91 318d (2007)

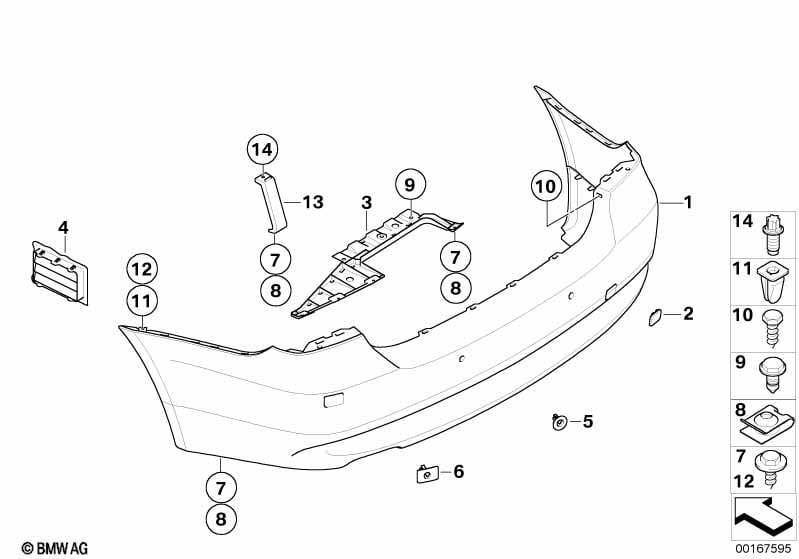

This Trim cover, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 318d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Bumper trim panel, primed, rear | 1 | 09/2008 | 51127141055 | $466.23 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 09/2008 | 51122410021 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Bumper trim panel, primed, rear | PDC | 1 | 09/2008 | 51127171046 | $489.40 | +core | Shop at ECS Tuning | ||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 09/2008 | 51122410021 | Shop at ECS Tuning | ||||
| 02 | Flap, towing eye, primed | 1 | 09/2008 | 51127187555 | $11.39 | Shop at ECS Tuning | ||||
| 03 | Guide, bottom center | 1 | 51127163847 | $17.72 | Shop at ECS Tuning | |||||
| 04 | Breather covering rear | SCHWARZ | 2 | 64226962293 | $7.30 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 05 | PDC holder inside left | 1 | 09/2008 | 51127127721 | $2.50 | Shop at ECS Tuning | ||||
| 05 | PDC holder inside right | 1 | 09/2008 | 51127127722 | $2.50 | Shop at ECS Tuning | ||||
| 06 | PDC holder outside left | 1 | 09/2008 | 51127127723 | $2.50 | Shop at ECS Tuning | ||||
| 06 | PDC holder outside right | 1 | 09/2008 | 51127127724 | $2.50 | Shop at ECS Tuning | ||||
| 07 | Hex head screw with washer | ST4,8X16MM | X | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 08 | C-clip nut, self-locking | ST 4.8 -ZNS3 | X | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 09 | Hex bolt with washer | M6X12 | 3 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 10 | Sheet metal screw | 4,8X22 | 2 | 07119905184 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Expanding nut | L=15MM, DMAX=12 | 2 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 12 | Fillister head screw | 2 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
