Extending cargo cover/partition net for BMW 3 Series E91 LCI 320i (2012)

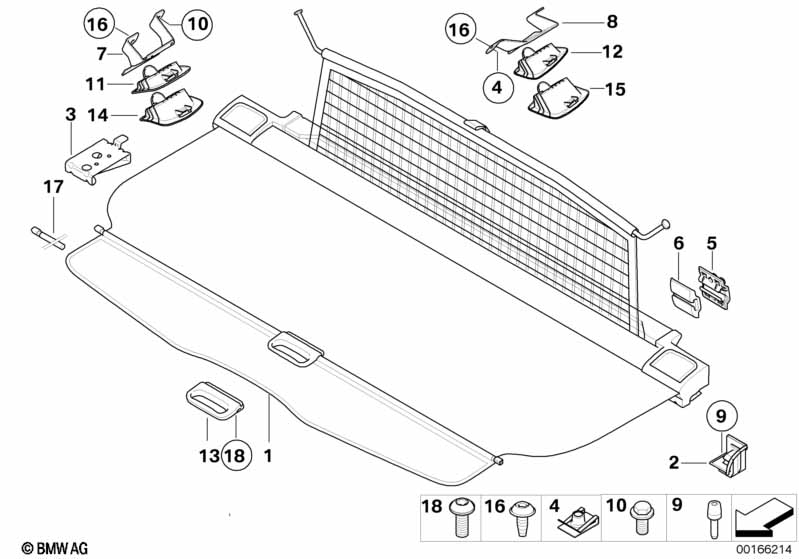

This Extending cargo cover/partition net technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Roller-combination | GRAU | 1 | 09/2009 | 51477261924 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Roller-combination | BEIGE | 1 | 09/2009 | 51477261925 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Roller-combination | SCHWARZ | 1 | 09/2009 | 51477261926 | Shop at ECS Tuning | ||||
| 02 | Left support f roll.blind sight protect. | 1 | 51479129061 | $34.30 | Shop at ECS Tuning | |||||
| 02 | Right support f roll.blind sight protect | 1 | 51479129062 | Shop at ECS Tuning | ||||||
| 03 | Adaptor left | 1 | 51477141473 | $6.64 | Shop at ECS Tuning | |||||
| 03 | Adaptor right | 1 | 51477141474 | $6.64 | Shop at ECS Tuning | |||||
| 04 | C-clip nut | M6-ZNS3 | 2 | 51127070202 | $1.00 | Shop at ECS Tuning | ||||
| 05 | Support f roller blind, backrest | 2 | 51479138952 | Shop at ECS Tuning | ||||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Cover f roller cover support | BEIGE | 2 | 51476949763 | $1.69 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 06 | Cover f roller cover support | SCHWARZ | 2 | 51477145844 | $1.69 | Shop at ECS Tuning | ||||
| 07 | Suspens., dividing net, front top left | 1 | 51477068933 | $6.14 | Shop at ECS Tuning | |||||
| 07 | Suspens., dividing net, front top right | 1 | 51477068934 | $6.14 | Shop at ECS Tuning | |||||
| 08 | Suspension, dividing net, rear left | 1 | 51477141471 | $7.33 | Shop at ECS Tuning | |||||
| 08 | Suspension, dividing net, rear right | 1 | 51477141472 | $7.33 | Shop at ECS Tuning | |||||
| 09 | Torx bolt | M5X19 | 4 | 07143450893 | $0.86 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X12-U1-8.8 | 4 | 07119904517 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Hex bolt with washer | M6X14U2-ZNNIVSI | 8 | 07119905952 | $0.91 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 11 | Cover, front left | SCHWARZ | 1 | 51448036239 | $5.02 | Shop at ECS Tuning | ||||
| 11 | Cover, front right | SCHWARZ | 1 | 51448036240 | $5.02 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 11 | Cover, front left | BEIGE | 1 | 51446950793 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, front right | BEIGE | 1 | 51446950794 | $5.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 11 | Cover, front left | GRAU | 1 | 51446950791 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 11 | Cover, front right | GRAU | 1 | 51446950792 | $5.02 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 12 | Covering, rear left | SCHWARZ | 1 | 51448036243 | $5.02 | Shop at ECS Tuning | ||||
| 12 | Covering, rear right | SCHWARZ | 1 | 51448036244 | $5.02 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 12 | Covering, rear left | BEIGE | 1 | 51446950797 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 12 | Covering, rear right | BEIGE | 1 | 51446950798 | $5.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 12 | Covering, rear left | GRAU | 1 | 51446950795 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 12 | Covering, rear right | GRAU | 1 | 51446950796 | $5.13 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 13 | Handle | GRAU | 1 | 51479129648 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 13 | Handle | BEIGE | 1 | 51479129649 | $16.05 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 13 | Handle | ANTHRAZIT | 1 | 51479129647 | $15.78 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 14 | Cover, front left | SCHWARZ | 1 | 51448036237 | $5.02 | Shop at ECS Tuning | ||||
| 14 | Cover, front right | SCHWARZ | 1 | 51448036238 | $5.02 | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
S402A=Yes ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 14 | Cover, front left | BEIGE | 1 | 51447144997 | $5.02 | ENDED | Shop at ECS Tuning | |||
| 14 | Cover, front right | BEIGE | 1 | 51447144998 | $5.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof and Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
S402A=Yes ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 14 | Cover, front left | GRAU | 1 | 51447144995 | $5.13 | Shop at ECS Tuning | ||||
| 14 | Cover, front right | GRAU | 1 | 51447144996 | $5.13 | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S775A=Yes |
|||||||||
| 15 | Covering, rear left | SCHWARZ | 1 | 51448036241 | $5.13 | Shop at ECS Tuning | ||||
| 15 | Covering, rear right | SCHWARZ | 1 | 51448036242 | $5.13 | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
S402A=Yes ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 15 | Covering, rear left | BEIGE | 1 | 51447145007 | $5.13 | ENDED | Shop at ECS Tuning | |||
| 15 | Covering, rear right | BEIGE | 1 | 51447145008 | $5.02 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Electric panoramic roof and Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
S402A=Yes ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 15 | Covering, rear left | GRAU | 1 | 51447145005 | $5.13 | Shop at ECS Tuning | ||||
| 15 | Covering, rear right | GRAU | 1 | 51447145006 | $5.13 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw with collar | M5X16MM | 8 | 07149158182 | $0.25 | Shop at ECS Tuning | ||||
| 17 | Roller blind pull-out bar | 1 | 09/2009 | 51477261927 | Shop at ECS Tuning | |||||
| 18 | Screw for thermoplastic plastics | 4X10 T20 | 2 | 07147118899 | $0.53 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
