Diesel encapsulation for BMW 3 Series E90 LCI 320d (2010)

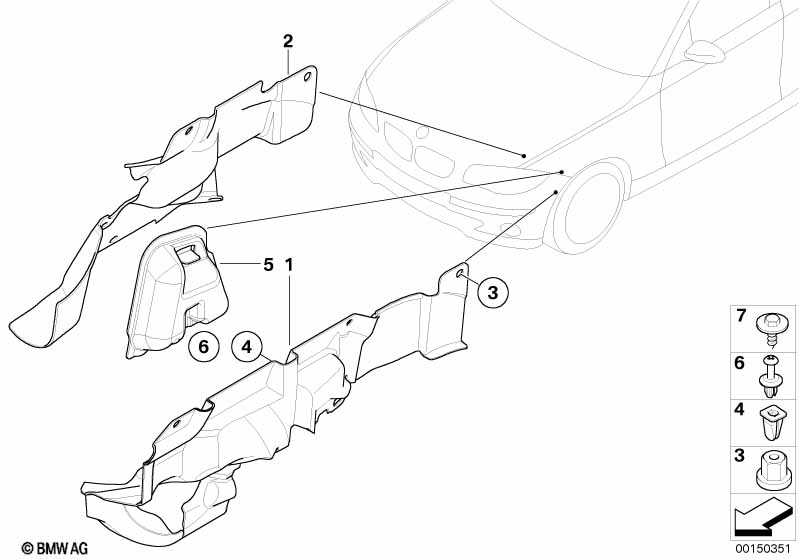

This Diesel encapsulation technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Diesel encapsulation, front left | 1 | 51717131711 | Shop at ECS Tuning | ||||||
| 01 | Diesel encapsulation, front right | 1 | 51717131712 | Shop at ECS Tuning | ||||||
| 03 | Plastic nut | 2 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 5 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | ST4,8MM | 5 | 51717154520 | $0.23 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | L=15MM, DMAX=12 | 5 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 05 | Cover of passage for spring support,left | 1 | 51717127351 | Shop at ECS Tuning | ||||||
| 05 | Cover of passage for spring support,rght | 1 | 51717127352 | Shop at ECS Tuning | ||||||
| 06 | Expanding rivet | D=11,3MM | 2 | 51717001494 | $0.82 | Shop at ECS Tuning | ||||
| 07 | Sheet metal screw | ST4,8X16 | 2 | 07119901311 | $0.25 | Shop at ECS Tuning | ||||
| 07 | Hex head screw with washer | ST4,8X16MM | 5 | 07147129160 | $0.36 | Shop at ECS Tuning |
