Trunk lid trim panel for BMW 3 Series E91 LCI 330xd (2008)

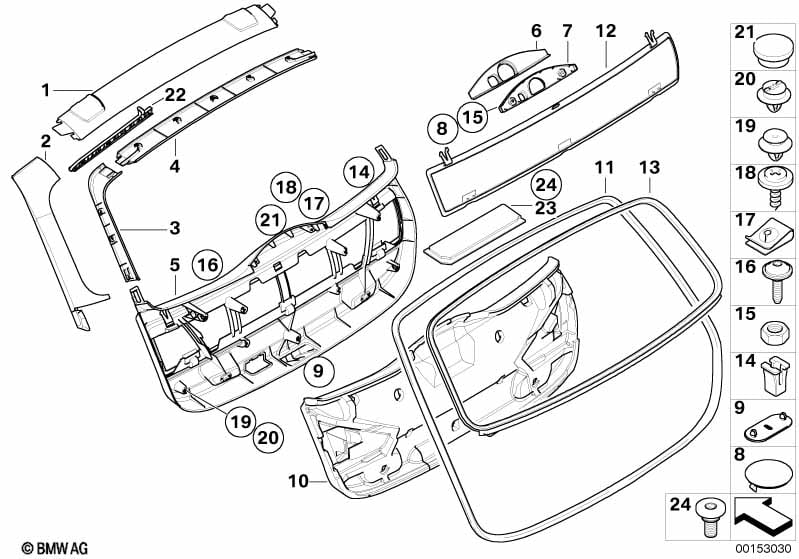

This Trunk lid trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 330xd. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Trim panel upper part | 1 | 51497119051 | $14.84 | Shop at ECS Tuning | |||||
| 02 | Trim panel left | 1 | 51497127881 | $12.73 | Shop at ECS Tuning | |||||
| 02 | Trim panel right | 1 | 51497127882 | $12.73 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 03 | Trim panel left | SCHWARZ | 1 | 51497164885 | $8.15 | Shop at ECS Tuning | ||||
| 03 | Trim panel right | SCHWARZ | 1 | 51497164886 | $8.15 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | Trim panel left | BEIGE | 1 | 51497162173 | $7.44 | Shop at ECS Tuning | ||||
| 03 | Trim panel right | BEIGE | 1 | 51497162174 | $7.44 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 03 | Trim panel left | GRAU | 1 | 51497162171 | $7.44 | Shop at ECS Tuning | ||||
| 03 | Trim panel right | GRAU | 1 | 51497162172 | $7.44 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 04 | Trim panel upper part | SCHWARZ | 1 | 51497164883 | $16.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 04 | Trim panel upper part | BEIGE | 1 | 51497162176 | $19.03 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 04 | Trim panel upper part | GRAU | 1 | 51497162175 | $19.03 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 05 | Lower tail lid trim panel | SCHWARZ | 1 | 51497164884 | $72.26 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 05 | Lower tail lid trim panel | BEIGE | 1 | 51497162180 | $193.11 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 05 | Lower tail lid trim panel | GRAU | 1 | 51497162179 | $193.11 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 06 | Covering for wiper motor | SCHWARZ | 1 | 51497203110 | $12.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Covering for wiper motor | BEIGE | 1 | 51497203109 | $12.43 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 06 | Covering for wiper motor | GRAU | 1 | 51497203108 | $12.43 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 07 | Trim panel | SCHWARZ | 1 | 51498036235 | $7.44 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 07 | Trim panel | BEIGE | 1 | 51497162178 | $7.44 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 07 | Trim panel | GRAU | 1 | 51497162177 | $7.44 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 08 | Cover | SCHWARZ | 2 | 51497164878 | $1.40 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 08 | Cover | BEIGE | 1 | 51497164897 | $2.06 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 08 | Cover | GRAU | 1 | 51497164896 | $2.06 | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 09 | Molding cover | SCHWARZ | 1 | 51497164882 | $1.34 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 09 | Molding cover | BEIGE | 1 | 51497164899 | $1.34 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 09 | Molding cover | GRAU | 1 | 51497164898 | $1.88 | Shop at ECS Tuning | ||||
| 10 | Sound insulating for trunk lid | 1 | 51487129821 | $19.86 | +core | Shop at ECS Tuning | ||||
| 11 | Trunk lid sealing | 1 | 51767147043 | $91.38 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S775A=Yes |
|||||||||
| 12 | Trunk lid trim panel | SCHWARZ | 1 | 51497182071 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 12 | Trunk lid trim panel | SAVANNABEIGE | 1 | 51497182070 | $112.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAD=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 12 | Trunk lid trim panel | GRAU | 1 | 51497182069 | $112.56 | Shop at ECS Tuning | ||||
| 13 | Rear window sealing | 1 | 51717130769 | $105.15 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | 2 | 07146974274 | $3.75 | Shop at ECS Tuning | |||||
| 14 | Expanding nut | 2 | 51717013308 | $0.26 | Shop at ECS Tuning | |||||
| 15 | Hex nut | M6-8-ZNNIV SI | 2 | 07119905543 | $0.38 | Shop at ECS Tuning | ||||
| 16 | Fillister head screw with collar | 2 | 07147143279 | $0.38 | Shop at ECS Tuning | |||||
| 16 | Torx-countersunk head screw | ISA M8X31 | 2 | 07147160286 | $0.89 | Shop at ECS Tuning | ||||
| 17 | Plug-in nut | M5 | 2 | 46637651465 | $1.29 | Shop at ECS Tuning | ||||
| 18 | Sheet metal screw | ST 4,8X13 | 2 | 07119904180 | $0.29 | Shop at ECS Tuning | ||||
| 19 | Clip Natur | 9 | 51497054228 | $0.35 | Shop at ECS Tuning | |||||
| 20 | Clip with seal ring | 15 | 51137065607 | $0.74 | Shop at ECS Tuning | |||||
| 21 | Blind plug | D=20MM | 1 | 07147140850 | $0.19 | Shop at ECS Tuning | ||||
| 22 | Water drain, left | 1 | 51497174537 | $5.14 | Shop at ECS Tuning | |||||
| 22 | Water drain, right | 1 | 51497174538 | $5.14 | Shop at ECS Tuning | |||||
| 23 | Covering Diversity | 1 | 01/2006 | 51317181028 | $16.19 | Shop at ECS Tuning | ||||
| 24 | Fillister head screw | ST5X17-ZNS3 | 6 | 07147127714 | $0.25 | Shop at ECS Tuning | ||||
| 24 | Fillister-head screw | 6 | 07147183195 | $0.16 | Shop at ECS Tuning | |||||
