M Trim, front for BMW 3 Series E90 320d (2008)

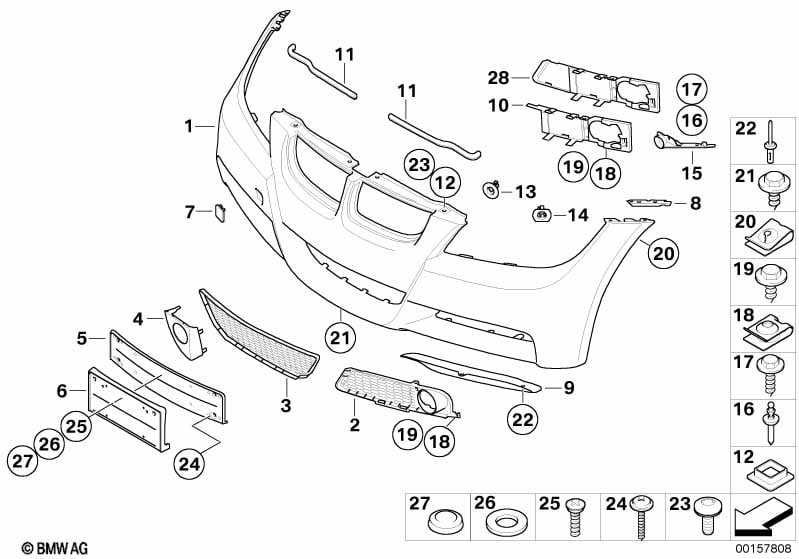

This M Trim, front technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | On vehicles with optional ACC also order installation instructions 0129 0 036 224 and template 0129 0 431 720. For vehicles with M Sports package or M Aerodynamics package |
P337A=Yes S715A=Yes |
||||||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | -M- | 1 | 51118041130 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 51112410006 | Shop at ECS Tuning | |||||
| For vehicles with Headlight cleaning system Important notice! Observe product information. Use "Only in conjunction with" parts. |
S502A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | -M- | 1 | 09/2008 | 51118041132 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 09/2008 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Kit dummy trim | GEN 4 | 1 | 09/2008 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 09/2008 | 51112410006 | Shop at ECS Tuning | ||||
| -- | Stick-on label | NO PDC | 1 | 09/2008 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) |
S502A=Yes S508A=Yes |
|||||||||
| 01 | Trim cover, bumper, primed, front | -M- | 1 | 09/2008 | 51118041132 | Shop at ECS Tuning | ||||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, front | VALUE PARTS | 1 | 09/2008 | 51112410006 | Shop at ECS Tuning | ||||
| For vehicles with Headlight cleaning system and Park Distance Control (PDC) Important notice! Observe product information. Use "Only in conjunction with" parts. |
S502A=No S508A=No |
|||||||||
| 01 | Trim cover, bumper, primed, front | -M- | 1 | 51118041130 | Shop at ECS Tuning | |||||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 66206923000 | $1.05 | Shop at ECS Tuning | |||||
| -- | Kit dummy trim | GEN 4 | 1 | 51125A3F536 | Shop at ECS Tuning | |||||
| -- | Stick-on label | NO PDC | 1 | 01295A3BFA7 | Shop at ECS Tuning | |||||
| 02 | Grid lateral left | 1 | 09/2008 | 51117906495 | $23.16 | Shop at ECS Tuning | ||||
| 02 | Grid lateral right | 1 | 09/2008 | 51117906496 | $23.16 | Shop at ECS Tuning | ||||
| 03 | Grid, center | 1 | 09/2008 | 51117906494 | $23.16 | Shop at ECS Tuning | ||||
| For vehicles with Active cruise control |
S541A=Yes |
|||||||||
| 03 | Grid, center | 1 | 09/2008 | 51117907076 | $23.16 | Shop at ECS Tuning | ||||
| 04 | Cover ACC | 1 | 09/2008 | 51117907077 | $6.52 | Shop at ECS Tuning | ||||
| 05 | Base, licence plate primed | -M- | 1 | 09/2008 | 51118041136 | $40.80 | +core | Shop at ECS Tuning | ||
| When ordering indicate color code | ||||||||||
| 05 | Licence plate base painted | CODE-UNI/MET | 1 | 09/2008 | 51110409797 | $178.01 | ENDED, +core | Shop at ECS Tuning | ||
| For vehicles with Control of number-plate attachment |
S992A=Yes |
|||||||||
| 06 | Licence plate base | 1 | 09/2008 | 51117058449 | $10.50 | Shop at ECS Tuning | ||||
| 07 | Flap, towing eye, primed | 1 | 09/2008 | 51118041133 | $11.39 | Shop at ECS Tuning | ||||
| 08 | Insert, bumper front left | 1 | 09/2008 | 51117134097 | $5.25 | Shop at ECS Tuning | ||||
| 08 | Insert, bumper front right | 1 | 09/2008 | 51117134098 | $5.25 | Shop at ECS Tuning | ||||
| 09 | Deflector lip left | -M- | 1 | 09/2008 | 51718040103 | $11.23 | Shop at ECS Tuning | |||
| 09 | Deflector lip right | -M- | 1 | 09/2008 | 51718040104 | $11.23 | Shop at ECS Tuning | |||
| 11 | Seal, engine bonnet, front | 1 | 09/2008 | 51767143757 | $6.71 | Shop at ECS Tuning | ||||
| 12 | Spacer sleeve | 4 | 09/2008 | 51117071270 | $0.56 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC) |
S508A=Yes |
|||||||||
| 13 | Bracket PDC front interior, left | -M- | 1 | 09/2008 | 51118042217 | $3.38 | Shop at ECS Tuning | |||
| 13 | Bracket PDC front interior, right | -M- | 1 | 09/2008 | 51118042218 | $3.38 | Shop at ECS Tuning | |||
| 14 | Bracket PDC front exterior, left | -M- | 1 | 09/2008 | 51118042221 | $3.03 | Shop at ECS Tuning | |||
| 14 | Bracket PDC front exterior, right | -M- | 1 | 09/2008 | 51118042222 | $3.03 | Shop at ECS Tuning | |||
| 15 | Support fender left | 1 | 09/2008 | 51117058447 | $5.28 | Shop at ECS Tuning | ||||
| 15 | Support fender right | 1 | 09/2008 | 51117058448 | $5.28 | Shop at ECS Tuning | ||||
| 16 | Expanding rivet | 4 | 09/2008 | 07146971349 | $0.26 | Shop at ECS Tuning | ||||
| 17 | Screw | SECHSKANT | 4 | 07/2007 | 09/2008 | 07143428231 | $0.36 | Shop at ECS Tuning | ||
| 18 | Body nut | ST4,8-9-ZNS3 | 10 | 09/2008 | 07129904150 | $0.25 | Shop at ECS Tuning | |||
| 19 | Hex head screw | ST4,8X16-ZNS3 | 10 | 09/2008 | 07119901299 | $0.25 | Shop at ECS Tuning | |||
| 20 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 09/2008 | 07146951655 | $0.20 | Shop at ECS Tuning | |||
| 21 | Sheet metal screw | 4,8X22 | 4 | 09/2008 | 07119905184 | $0.29 | Shop at ECS Tuning | |||
| 21 | Hex head screw with washer | ST4,8X16MM | 7 | 09/2008 | 07147129160 | $0.36 | Shop at ECS Tuning | |||
| 22 | Blind compression rivet | 6X21MM | 4 | 09/2008 | 51118222901 | $0.82 | Shop at ECS Tuning | |||
| 23 | Torx bolt | ISA M6X18 SW | 4 | 07/2007 | 09/2008 | 07146959923 | $0.55 | Shop at ECS Tuning | ||
| 24 | Phillips screw f plastic material | TS5X25-ZNNID-SW | 4 | 09/2008 | 07146959925 | $0.29 | Shop at ECS Tuning | |||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 25 | Phillips screw f plastic material | TS 5X8 | 4 | 09/2008 | 07146959895 | $0.29 | Shop at ECS Tuning | |||
| 26 | Washer | 4-200 HV-ZNS3 | 4 | 07/2007 | 09/2008 | 07119904207 | Shop at ECS Tuning | |||
| 27 | Covering cap | WEISS | X | 09/2008 | 51181813017 | $0.21 | Shop at ECS Tuning | |||
| 27 | Covering cap | SCHWARZ | X | 09/2008 | 51181823474 | $0.21 | Shop at ECS Tuning | |||
| 27 | Covering cap | EUROPABLAU | X | 09/2008 | 51187060798 | $0.21 | Shop at ECS Tuning | |||
| 27 | Covering cap | GOLDGELB | X | 09/2008 | 51188106919 | $0.21 | Shop at ECS Tuning | |||
| only applies to without brake air channel |
||||||||||
| 28 | Support, fog lamp left | 1 | 09/2008 | 51118045967 | Shop at ECS Tuning | |||||
| 28 | Support, fog lamp right | 1 | 09/2008 | 51118045968 | Shop at ECS Tuning | |||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
