M Trim, rear for BMW 1 Series E87 LCI 118i (2009)

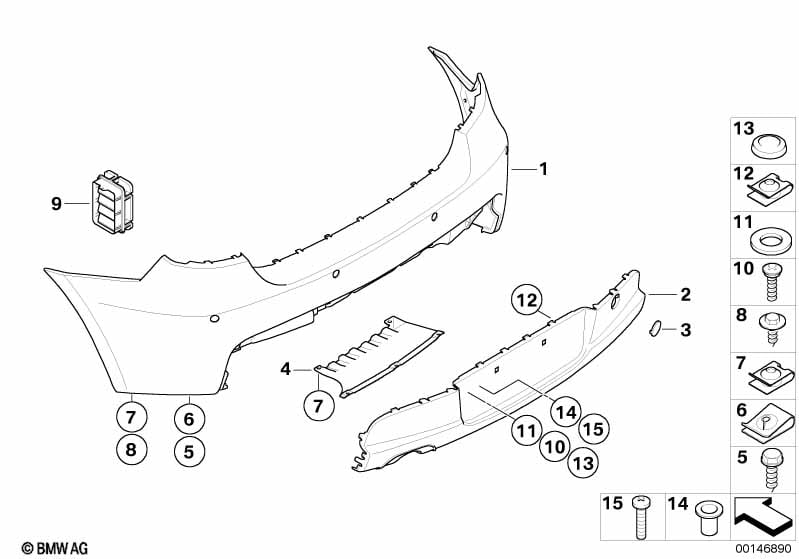

This M Trim, rear technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 LCI 118i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with M Sports package or M Aerodynamics package |
P337A=Yes S715A=Yes |
||||||||
| Important notice! Observe product information. Use "Only in conjunction with" parts. |
||||||||||
| 01 | Bumper trim panel, rear top primed | -M- | 1 | 03/2007 | 51128045548 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Decoupling ring PDC torque converter | 4 | 03/2007 | 66206923000 | $1.05 | Shop at ECS Tuning | ||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 03/2007 | 51122410016 | Shop at ECS Tuning | ||||
| -- | Kit dummy trim | GEN 4 | 1 | 03/2007 | 51125A3F536 | Shop at ECS Tuning | ||||
| -- | Stick-on label | NO PDC | 1 | 03/2007 | 01295A3BFA7 | Shop at ECS Tuning | ||||
| For vehicles with Park Distance Control (PDC), rear or Park Distance Control (PDC) |
S507A=Yes S508A=Yes |
|||||||||
| 01 | Bumper trim panel, rear top primed | -M- | 1 | 03/2007 | 51128045548 | +core | Shop at ECS Tuning | |||
| only in conjunction with | ||||||||||
| -- | Set of mounted parts, bumper, rear | VALUE PARTS | 1 | 03/2007 | 51122410016 | Shop at ECS Tuning | ||||
| WITHOUT Towing eye flap |
||||||||||
| 02 | Trim panel, bumper, rear, bottom | SCHIEFERGRAU | 1 | 51127837325 | +core | Shop at ECS Tuning | ||||
| 03 | Flap, towing eye | -M- | 1 | 51127836964 | Shop at ECS Tuning | |||||
| 04 | Covering Lower | 1 | 51127117631 | Shop at ECS Tuning | ||||||
| For vehicles with Towing hitch, detachable |
S235A=Yes |
|||||||||
| 04 | Cover for tow hitch, lower | 1 | 51127118162 | Shop at ECS Tuning | ||||||
| 05 | Hex head screw | ST4,8X16-ZNS3 | 4 | 07119901299 | $0.25 | Shop at ECS Tuning | ||||
| 06 | Body nut | ST4,8-13-ZNS3 | 4 | 07129904223 | $0.11 | Shop at ECS Tuning | ||||
| 06 | Hex head screw with washer | ST4,8X16MM | 8 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 07 | Body nut | ST4,8-9-ZNS3 | 8 | 07129904150 | $0.25 | Shop at ECS Tuning | ||||
| 08 | Hex bolt with washer | M6X12 | 3 | 07147147513 | $0.38 | Shop at ECS Tuning | ||||
| 09 | Rear ventilation | 2 | 64226937994 | $15.33 | Shop at ECS Tuning | |||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 10 | Phillips screw f plastic material | TS 5X8 | 4 | 07146959895 | $0.29 | Shop at ECS Tuning | ||||
| 11 | Washer | 4-200 HV-ZNS3 | 4 | 07/2007 | 07119904207 | Shop at ECS Tuning | ||||
| For vehicles with National version japan REGISTRATION PLATE MOUNTING |
L807A=Yes |
|||||||||
| 12 | Clip nut | M6 | 2 | 41357060601 | $0.70 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING | ||||||||||
| 13 | Covering cap | WEISS | X | 51181813017 | $0.21 | Shop at ECS Tuning | ||||
| 13 | Covering cap | EUROPABLAU | X | 51187060798 | $0.21 | Shop at ECS Tuning | ||||
| 13 | Covering cap | GOLDGELB | X | 51188106919 | $0.21 | Shop at ECS Tuning | ||||
| REGISTRATION PLATE MOUNTING Repair solution |
||||||||||
| 14 | Blind rivet nut, flat headed | M5 | 4 | 51138400227 | $2.77 | Shop at ECS Tuning | ||||
| 15 | Screw | M5X20 | 4 | 46612315376 | $0.60 | Shop at ECS Tuning | ||||
