Police sticker for BMW 3 Series E90 LCI 325i (2009)

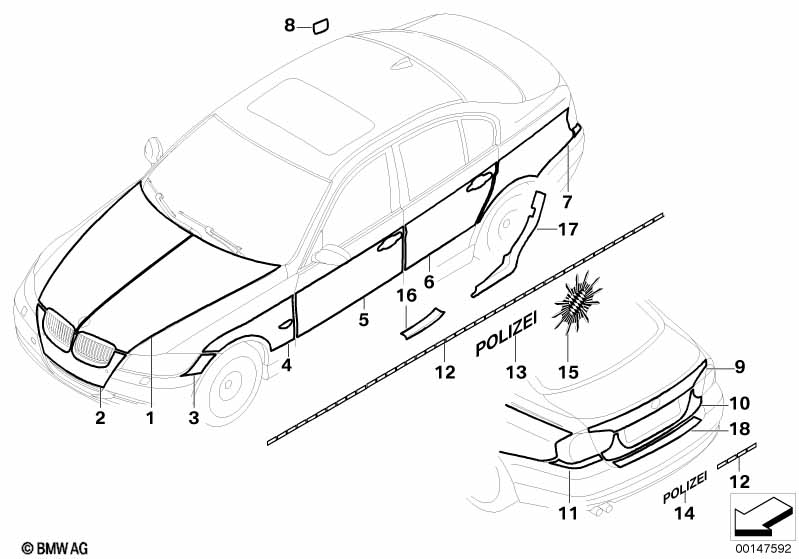

This Police sticker technical drawing provides a detailed breakdown of the assembly for the 3 Series E90 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | Color minz-grün all German states except Bavaria |
|||||||||
| 01 | Adhesive film hood center left | BLAU | 1 | 09/2008 | 51147212777 | ENDED | Shop at ECS Tuning | |||
| 01 | Adhesive film hood center right | BLAU | 1 | 09/2008 | 51147212778 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 01 | Adhesive film hood center left | MINZGRÜN-HELL | 1 | 09/2008 | 51147212783 | ENDED | Shop at ECS Tuning | |||
| 01 | Adhesive film hood center right | MINZGRÜN-HELL | 1 | 09/2008 | 51147212784 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 01 | Adhesive film hood center left | MINZGRÜN | 1 | 09/2008 | 51147212787 | ENDED | Shop at ECS Tuning | |||
| 01 | Adhesive film hood center right | MINZGRÜN | 1 | 09/2008 | 51147212788 | ENDED | Shop at ECS Tuning | |||
| 02 | Adhesive film, bumper front | BLAU | 1 | 09/2008 | 51147212774 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 02 | Adhesive film, bumper front | MINZGRÜN-HELL | 1 | 09/2008 | 51147212781 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 02 | Adhesive film, bumper front | MINZGRÜN | 1 | 09/2008 | 51147212782 | ENDED | Shop at ECS Tuning | |||
| 03 | Adhesive film, bumper, front left | BLAU | 1 | 09/2008 | 51147238115 | ENDED | Shop at ECS Tuning | |||
| 03 | Adhesive film, bumper, front right | BLAU | 1 | 09/2008 | 51147238116 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 03 | Adhesive film, bumper, front left | MINZGRÜN-HELL | 1 | 09/2008 | 51147212785 | ENDED | Shop at ECS Tuning | |||
| 03 | Adhesive film, bumper, front right | MINZGRÜN-HELL | 1 | 09/2008 | 51147212786 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 03 | Adhesive film, bumper, front left | MINZGRÜN | 1 | 09/2008 | 51147212789 | ENDED | Shop at ECS Tuning | |||
| 03 | Adhesive film, bumper, front right | MINZGRÜN | 1 | 09/2008 | 51147212790 | ENDED | Shop at ECS Tuning | |||
| 04 | Adhesive film, side panel,front left | BLAU | 1 | 51147238117 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhesive film, side panel,front right | BLAU | 1 | 51147238118 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 04 | Adhesive film, side panel,front left | MINZGRÜN-HELL | 1 | 51147172175 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhesive film, side panel,front right | MINZGRÜN-HELL | 1 | 51147172176 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 04 | Adhesive film, side panel,front left | MINZGRÜN | 1 | 51147172243 | ENDED | Shop at ECS Tuning | ||||
| 04 | Adhesive film, side panel,front right | MINZGRÜN | 1 | 51147172244 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door, front left | BLAU | 1 | 51147238123 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door , front right | BLAU | 1 | 51147238124 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 05 | Adhesive film, door, front left | MINZGRÜN-HELL | 1 | 51147172177 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door , front right | MINZGRÜN-HELL | 1 | 51147172178 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 05 | Adhesive film, door, front left | MINZGRÜN | 1 | 51147172245 | ENDED | Shop at ECS Tuning | ||||
| 05 | Adhesive film, door , front right | MINZGRÜN | 1 | 51147172246 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door , rear left | BLAU | 1 | 51147238119 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door , rear right | BLAU | 1 | 51147238120 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 06 | Adhesive film, door , rear left | MINZGRÜN-HELL | 1 | 51147172179 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door , rear right | MINZGRÜN-HELL | 1 | 51147172180 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 06 | Adhesive film, door , rear left | MINZGRÜN | 1 | 51147172247 | ENDED | Shop at ECS Tuning | ||||
| 06 | Adhesive film, door , rear right | MINZGRÜN | 1 | 51147172248 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, left | BLAU | 1 | 51147238125 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | BLAU | 1 | 51147238126 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 07 | Adhesive film f side panel, left | MINZGRÜN-HELL | 1 | 51147172181 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | MINZGRÜN-HELL | 1 | 51147172182 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 07 | Adhesive film f side panel, left | MINZGRÜN | 1 | 51147172249 | ENDED | Shop at ECS Tuning | ||||
| 07 | Adhesive film f side panel, rear right | MINZGRÜN | 1 | 51147172250 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 08 | Adhesive film, gas cap | MINZGRÜN-HELL | 1 | 51147172171 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 08 | Adhesive film, gas cap | MINZGRÜN | 1 | 51147172241 | ENDED | Shop at ECS Tuning | ||||
| 09 | Adhesive film f trunk lid, center | BLAU | 1 | 51147224472 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 09 | Adhesive film f trunk lid, center | MINZGRÜN-HELL | 1 | 51147172184 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 09 | Adhesive film f trunk lid, center | MINZGRÜN | 1 | 51147172254 | ENDED | Shop at ECS Tuning | ||||
| 10 | Adhesive film f trunk lid, bottom | BLAU | 1 | 09/2008 | 51147212773 | Shop at ECS Tuning | ||||
| For vehicles with Police sticker, Norddeutschland |
S114A=Yes |
|||||||||
| 10 | Adhesive film f trunk lid, bottom | MINZGRÜN | 1 | 09/2008 | 51147212801 | Shop at ECS Tuning | ||||
| 11 | Adhesive film, bumper, rear left | BLAU | 1 | 09/2008 | 51147238127 | ENDED | Shop at ECS Tuning | |||
| 12 | Adhesive film reflecting strip, silver | 1 | 12/2009 | 51147125107 | ENDED | Shop at ECS Tuning | ||||
| 13 | Stick-on lable, police | H = 150MM | 1 | 51147012639 | ENDED | Shop at ECS Tuning | ||||
| For vehicles with Beklebung Polizei Bayern minzgrün hell only applies to Bavaria police |
S113A=Yes |
|||||||||
| 13 | Adhesive film, Police, silver | H = 150MM | 3 | 12/2009 | 51147126273 | ENDED | Shop at ECS Tuning | |||
| 14 | Adhesive film, Police, silver | H = 72MM | 1 | 12/2009 | 51147133207 | ENDED | Shop at ECS Tuning | |||
| 15 | Adhesive film Police-star | BAYERN | 2 | 51147079591 | Shop at ECS Tuning | |||||
| 16 | Left protection foil | 1 | 51147170627 | ENDED | Shop at ECS Tuning | |||||
| 16 | Right protection foil | 1 | 51147170628 | Shop at ECS Tuning | ||||||
| 17 | Left protection foil | 1 | 51147170629 | ENDED | Shop at ECS Tuning | |||||
| 17 | Right protection foil | 1 | 51147170630 | ENDED | Shop at ECS Tuning | |||||
| 18 | Protection foil | 1 | 09/2008 | 51147212810 | ENDED | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
