Lateral trunk floor trim panel for BMW 3 Series E91 LCI 335i (2012)

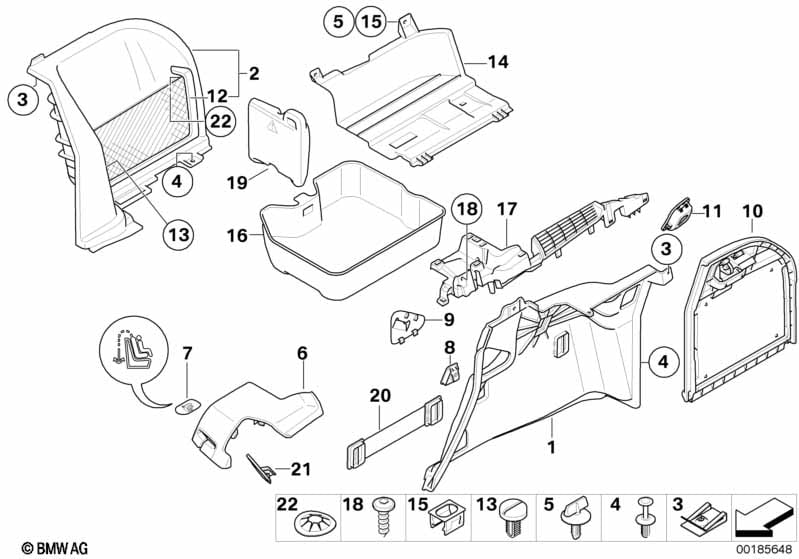

This Lateral trunk floor trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 335i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Motor extended operation circuit and Additional energy supply |
S108A=Yes S146A=Yes |
|||||||||
| 01 | Trim panel, additional battery | ANTHRAZIT | 1 | 51477148786 | +core | Shop at ECS Tuning | ||||
| For vehicles with Motor extended operation circuit and Additional energy supply |
S108A=Yes S146A=No |
|||||||||
| 01 | Trim panel, additional battery | ANTHRAZIT | 1 | 51477148786 | +core | Shop at ECS Tuning | ||||
| For vehicles with Motor extended operation circuit and Additional energy supply |
S108A=No S146A=Yes |
|||||||||
| 01 | Trim panel, additional battery | ANTHRAZIT | 1 | 51477148786 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Right front Lugg.compartment trim panel | GRAU | 1 | 51477146734 | +core | Shop at ECS Tuning | ||||
| 01 | Left front Lugg.compartment trim panel | GRAU | 1 | 51477146739 | $116.65 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Right front Lugg.compartment trim panel | BEIGE | 1 | 51477146736 | Shop at ECS Tuning | |||||
| 01 | Left front Lugg.compartment trim panel | BEIGE | 1 | 51477146741 | $116.65 | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package and Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
S418A=Yes ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Left front Lugg.compartment trim panel | GRAU | 1 | 51477146739 | $116.65 | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package and Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
S418A=Yes ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Left front Lugg.compartment trim panel | BEIGE | 1 | 51477146741 | $116.65 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Right front Lugg.compartment trim panel | ANTHRAZIT | 1 | 51477269712 | Shop at ECS Tuning | |||||
| 01 | Left front Lugg.compartment trim panel | ANTHRAZIT | 1 | 51477269713 | Shop at ECS Tuning | |||||
| For vehicles with Luggage compartment package and Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
S418A=Yes ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Left front Lugg.compartment trim panel | ANTHRAZIT | 1 | 51477269713 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Rear right trunk trim | GRAU | 1 | 51477156600 | $97.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Rear right trunk trim | BEIGE | 1 | 51477156602 | $97.56 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Rear right trunk trim | ANTHRAZIT | 1 | 51477269710 | Shop at ECS Tuning | |||||
| 03 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07147154447 | $0.27 | Shop at ECS Tuning | ||||
| 03 | C-clip nut, self-locking | TS5 | 2 | 07147330002 | Shop at ECS Tuning | |||||
| 04 | Expanding rivet | D = 8MM | 4 | 51471911992 | $0.40 | Shop at ECS Tuning | ||||
| 05 | Lock | 2 | 51471923983 | $0.82 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 06 | Covering right | GRAU | 1 | 51476950758 | $22.17 | +core | Shop at ECS Tuning | |||
| 06 | Covering left | GRAU | 1 | 51477156599 | $20.65 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Covering right | BEIGE | 1 | 51476950760 | $22.17 | Shop at ECS Tuning | ||||
| 06 | Covering left | BEIGE | 1 | 51477156601 | $20.65 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 06 | Covering left | SCHWARZ | 1 | 51477131795 | $22.17 | Shop at ECS Tuning | ||||
| 06 | Covering right | SCHWARZ | 1 | 51477131796 | $20.65 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 07 | Cover, child restraint system | GRAU | 3 | 51473418987 | $2.21 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 07 | Cover, child restraint system | SANDBEIGE | 3 | 51473418986 | $2.21 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 07 | Cover, child restraint system | ANTHRAZIT | 3 | 51473405879 | $2.21 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 08 | Multi-functional hook | GRAU | 1 | 51477157717 | $6.83 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 08 | Multi-functional hook | BEIGE | 1 | 51477157716 | $6.83 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 08 | Multi-functional hook | SCHWARZ | 1 | 51477157715 | $6.83 | Shop at ECS Tuning | ||||
| 09 | Cover seat-back clip, left | SCHWARZ | 1 | 51477133707 | $2.29 | Shop at ECS Tuning | ||||
| 09 | Cover seat-back clip, right | SCHWARZ | 1 | 51477133708 | $2.29 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 09 | Covering left | BEIGE | 1 | 51476965053 | $2.96 | Shop at ECS Tuning | ||||
| 09 | Covering right | BEIGE | 1 | 51476965054 | $2.96 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 10 | Left trunk flap | GRAU | 1 | 51479172857 | $52.97 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 10 | Left trunk flap | BEIGE | 1 | 51479172859 | $52.97 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 10 | Left trunk flap | ANTHRAZIT | 1 | 51477321097 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 11 | Support | GRAU | 1 | 51476964058 | $3.18 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 11 | Socket mount | BEIGE | 1 | 51476964059 | $4.30 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 11 | Socket mount | SCHWARZ | 1 | 51476964057 | $4.30 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 12 | Frame, net, rear right | GRAU | 1 | 51476978782 | $33.25 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 12 | Frame, net, rear right | BEIGE | 1 | 51476978784 | $33.25 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 12 | Frame, net, rear right | ANTHRAZIT | 1 | 51476978780 | $33.25 | Shop at ECS Tuning | ||||
| 13 | Locking button | 2 | 51478248015 | $0.44 | Shop at ECS Tuning | |||||
| 14 | Battery cover | 1 | 51477068890 | $19.11 | ENDED | Shop at ECS Tuning | ||||
| 15 | Lock insert | 2 | 51711916199 | $0.32 | Shop at ECS Tuning | |||||
| 16 | Oddments tray | 1 | 51476958378 | $22.17 | +core | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 17 | Trim panel, railing left | GRAU | 1 | 51476949919 | $45.25 | ENDED, +core | Shop at ECS Tuning | |||
| 17 | Trim panel, railing right | GRAU | 1 | 51476949920 | $45.25 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 17 | Trim panel, railing right | BEIGE | 1 | 51476952300 | $45.25 | ENDED | Shop at ECS Tuning | |||
| 17 | Trim panel, railing left | BEIGE | 1 | 51477153711 | $46.31 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 17 | Trim panel, railing left | SCHWARZ | 1 | 51477131801 | $45.25 | Shop at ECS Tuning | ||||
| 17 | Trim panel, railing right | SCHWARZ | 1 | 51477131802 | $45.25 | Shop at ECS Tuning | ||||
| 18 | Combi. fillister head self-tapping screw | ST4, 8X16MM | 11 | 51419143799 | $0.22 | Shop at ECS Tuning | ||||
| 19 | Crash element, battery | 1 | 51476972721 | $8.17 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 20 | Rubber band, left | GRAU 60 | 1 | 51476989325 | $20.10 | Shop at ECS Tuning | ||||
| 20 | Rubber band, right | GRAU 60 | 1 | 51476989326 | $20.10 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 20 | Rubber band, left | BEIGE | 1 | 51476989327 | $20.10 | Shop at ECS Tuning | ||||
| 20 | Rubber band, right | BEIGE | 1 | 51476989328 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/grey" or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/grau or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAD=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCAD=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 20 | Rubber band, left | ANTHRAZIT | 1 | 51476989323 | $20.10 | Shop at ECS Tuning | ||||
| 20 | Rubber band, right | ANTHRAZIT | 1 | 51476989324 | Shop at ECS Tuning | |||||
| 21 | Covering left | SCHWARZ | 1 | 51476974475 | $3.29 | Shop at ECS Tuning | ||||
| 21 | Covering right | SCHWARZ | 1 | 51476974476 | $3.29 | Shop at ECS Tuning | ||||
| 21 | Covering left | GRAU | 1 | 51476974477 | $3.29 | ENDED | Shop at ECS Tuning | |||
| 21 | Covering right | GRAU | 1 | 51476974478 | $3.29 | ENDED | Shop at ECS Tuning | |||
| 21 | Covering left | BEIGE | 1 | 51476974479 | $3.29 | Shop at ECS Tuning | ||||
| 21 | Covering right | BEIGE | 1 | 51476974480 | $3.14 | Shop at ECS Tuning | ||||
| 22 | Axial securing clip | 5,75MM | 4 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
