Rear trunk trim panel for BMW 3 Series E91 LCI 320d (2009)

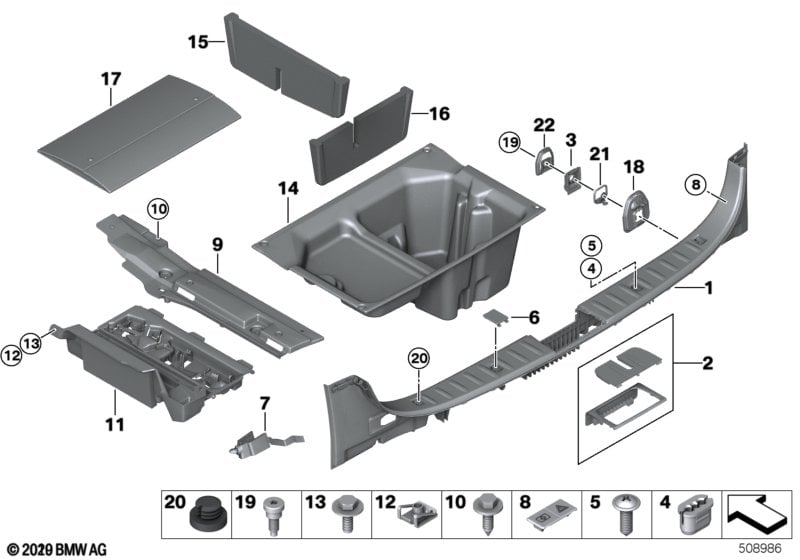

This Rear trunk trim panel technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 01 | Loading sill cover | GRAU | 1 | 51476949606 | $50.52 | ENDED, +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 01 | Loading sill cover | BEIGE | 1 | 51476949607 | $50.52 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 01 | Loading sill cover | SCHWARZ | 1 | 51477068908 | $50.52 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 02 | Lock panel | GRAU | 1 | 51479142418 | $23.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 02 | Lock panel | BEIGE | 1 | 51479142419 | $23.67 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 02 | Lock panel | SCHWARZ | 1 | 51479142417 | $23.67 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 03 | Cover | GRAU | 4 | 51476949752 | $1.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 03 | Cover | BEIGE | 4 | 51476949753 | $1.95 | ENDED | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 03 | Cover | SCHWARZ | 4 | 51477132088 | $1.92 | Shop at ECS Tuning | ||||
| 04 | Expanding nut | 4 | 07146969296 | $0.25 | Shop at ECS Tuning | |||||
| 05 | Fillister head self-tapping screw | ST4,2X13MM | 4 | 07146977198 | $0.08 | Shop at ECS Tuning | ||||
| 05 | Sheet metal screw | ST4,2X19 | 2 | 07149156627 | $0.18 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 06 | Cover lid | GRAU | 4 | 51476949609 | $0.67 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 06 | Cover lid | BEIGE | 4 | 51476949610 | $1.00 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 06 | Cover lid | SCHWARZ | 4 | 51477141856 | $0.67 | Shop at ECS Tuning | ||||
| 07 | Bracket for hazard warn. triangle | 1 | 51477142141 | $2.29 | Shop at ECS Tuning | |||||
| 08 | Warning triangle/first aid pictograph | 1 | 51477151872 | Shop at ECS Tuning | ||||||
| 09 | Pad, side member, left | 1 | 51477068885 | $10.59 | Shop at ECS Tuning | |||||
| 09 | Pad, side member, right | 1 | 51477068886 | $10.59 | Shop at ECS Tuning | |||||
| 10 | Hex head screw | ST4,8X19-U2 SW | 4 | 07119904288 | $2.05 | Shop at ECS Tuning | ||||
| 11 | Support Warning triangle/First aid kit | 1 | 51477141859 | $24.44 | Shop at ECS Tuning | |||||
| 12 | Prestol-cage | M5 | 1 | 07147143447 | $0.73 | Shop at ECS Tuning | ||||
| 13 | Hex bolt | M5X14 | 2 | 07119902932 | $0.53 | Shop at ECS Tuning | ||||
| 14 | Storage troug luggage trunk floor | 1 | 51477068889 | $40.05 | Shop at ECS Tuning | |||||
| 15 | Dividing element long | 1 | 51477146048 | $7.02 | Shop at ECS Tuning | |||||
| 16 | Dividing element short | 1 | 51477146050 | $6.22 | Shop at ECS Tuning | |||||
| 17 | Folding box, waterproof | 570 X 316 X 200 | 1 | 51477131154 | $92.15 | +core | Shop at ECS Tuning | |||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 18 | Cover, fastening loop | GRAU | 2 | 51476949852 | $0.87 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 18 | Cover, fastening loop | BEIGE | 2 | 51476949853 | $0.84 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 18 | Cover, fastening loop | SCHWARZ | 2 | 51477132893 | $0.87 | Shop at ECS Tuning | ||||
| 19 | Socket head cap screw with shoulder | 4 | 51477130768 | $1.09 | Shop at ECS Tuning | |||||
| 20 | Rubber buffer | 2 | 51478144588 | $1.27 | Shop at ECS Tuning | |||||
| 21 | Tie-down ring | 4 | 51477129196 | $7.23 | Shop at ECS Tuning | |||||
| For vehicles with Cloth "Fluid" or "Linea"/grey or Cloth "Vertex/grey" or Leather "Dakota"/grau |
ALAD=Yes EBAD=Yes LCAD=Yes |
|||||||||
| 22 | Cover fastening loop | GRAU | 2 | 51476949855 | $2.23 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid"/beige or Cloth "Vertex/beige" or Sensatec/beige or Leather "Dakota"/beige |
ALB4=Yes EBB4=Yes KAB4=Yes LCB4=Yes |
|||||||||
| 22 | Cover fastening loop | BEIGE | 2 | 51476949856 | $2.23 | Shop at ECS Tuning | ||||
| For vehicles with Cloth "Fluid" or "Linea"/anthracite or Cloth "blue shadow/Alcantara"/anthracite or Fabric"Blue Shadow/Alcantara/anthr.blau" or Fabric 'Layer/anthrazit' or Fabric 'Layer/oyster' or Cloth "Vertex/anthrazit" or Cloth/leather "citrus"/anthracite or Cloth/leather citrus/blue or Cloth/leather citrus/quarz-blue or Cloth/leather "Impuls/anthrazit" or Fabric/leather 'Impuls/braun' or Sensatec/black or Leather "Dakota"/lemon or Leather "Dakota"/terra or Leather "Dakota/oyster" or Leather "Dakota/red-brown" or Leather "Dakota" saddle brown or Leather Dakota/black/contrast blue or Leather "Dakota"/schwarz |
ALAT=Yes ANAT=Yes ANNK=Yes BCAT=Yes BCCX=Yes EBAT=Yes FFAT=Yes FFB5=Yes FFB6=Yes FMAT=Yes FMCN=Yes KASW=Yes LCB7=Yes LCB8=Yes LCCX=Yes LCCZ=Yes LCD3=Yes LCNL=Yes LCSW=Yes |
|||||||||
| 22 | Cover fastening loop | SCHWARZ | 2 | 51477129652 | $1.08 | Shop at ECS Tuning | ||||
Notes
- ENDED = the part has been discontinued (no longer available).
- +core = plus core charge (possibility of a return of the old part)
See Also
Frequently Asked Questions
- What assembly is shown in the BMW 3 Series E91 LCI 320d Rear trunk trim panel?
- This technical diagram illustrates the Rear trunk trim panel within the Vehicle trim group for the 3 Series E91 LCI 320d produced during 2009. It provides a detailed exploded view of the components, identifying key parts such as the Loading sill cover (Part #51476949606).
- Which models use the hardware listed in this Rear trunk trim panel?
- The hardware and components featured in the Rear trunk trim panel are specific to the 3 Series E91 LCI 320d produced during 2009. These technical specifications ensure that parts like the Loading sill cover (51476949606) are correctly matched to the vehicle's structural and mechanical requirements.
- How do I find specific parts within the Rear trunk trim panel assembly?
- Each item in the Rear trunk trim panel corresponds to the numbered list below the illustration. For the 3 Series E91 LCI 320d, you can identify the Loading sill cover by locating its position on the schematic, which then links to the official BMW part number 51476949606 for the Vehicle trim section.
