Reinforcement, body for BMW 3 Series E91 LCI 320i (2012)

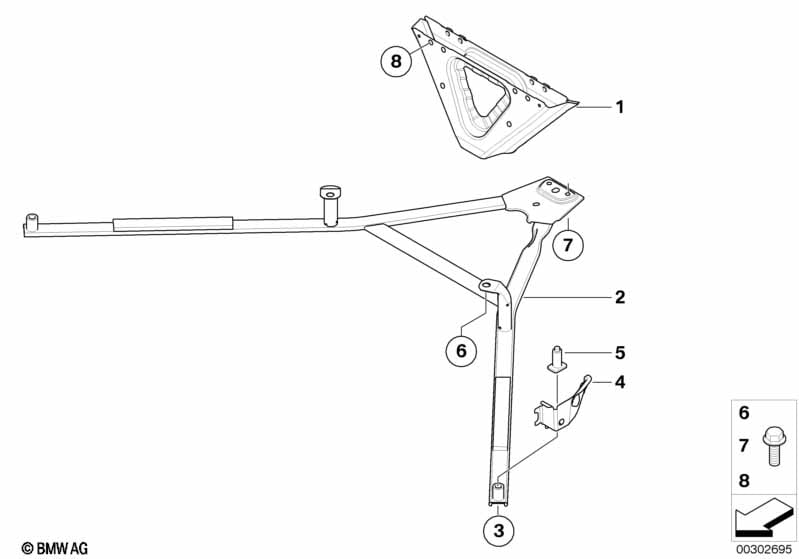

This Reinforcement, body technical drawing provides a detailed breakdown of the assembly for the 3 Series E91 LCI 320i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Mount, tension strut | 1 | 51717160377 | $87.65 | +core | Shop at ECS Tuning | ||||
| 02 | Tension strut | 1 | 51717160259 | $152.02 | Shop at ECS Tuning | |||||
| 03 | Hex bolt | M12X1,5X75-10.9 | 2 | 07119905408 | $3.29 | Shop at ECS Tuning | ||||
| 04 | Bracket for front left tension strut | 1 | 41127167051 | $19.87 | +core | Shop at ECS Tuning | ||||
| 04 | Bracket for front right tension strut | 1 | 41127167052 | $19.87 | +core | Shop at ECS Tuning | ||||
| 05 | Bushing, tension strut | 3 | 41117160260 | $23.38 | +core | Shop at ECS Tuning | ||||
| 06 | Hex bolt | M10X25- 8.8 | 2 | 07119905563 | $1.16 | Shop at ECS Tuning | ||||
| 07 | Hexagon screw with flange | M12X1,5X35-10.9 | 1 | 07146986792 | $5.36 | Shop at ECS Tuning | ||||
| 08 | Hex bolt | M10X65-10.9 | 4 | 07119905562 | $1.91 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
