Storage surface, trunk floor for BMW 5 Series G31 Touring 520dX (2020)

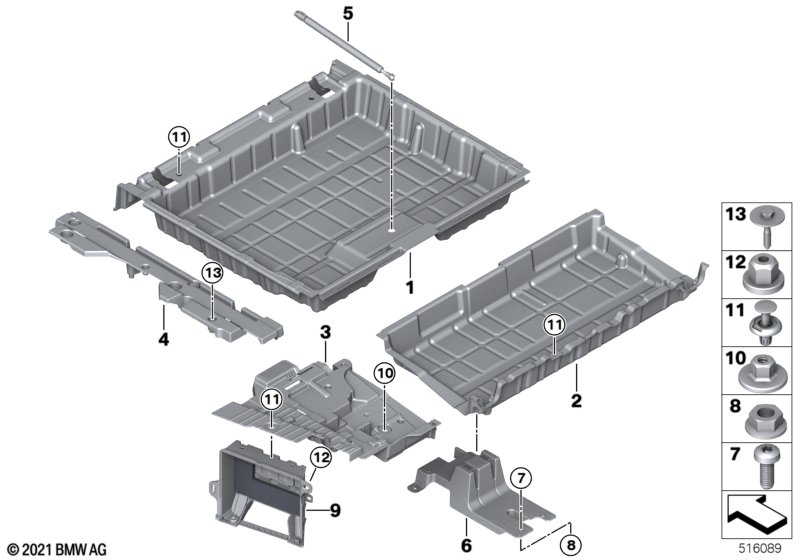

This Storage surface, trunk floor technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520dX. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Storage troug luggage trunk floor | 1 | 51477387458 | Shop at ECS Tuning | ||||||
| 02 | Storage tray, trunk floor, rear | 1 | 51477432983 | Shop at ECS Tuning | ||||||
| 03 | Device cover right | 1 | 51477387472 | Shop at ECS Tuning | ||||||
| For vehicles with Additional energy supply |
S146A=No |
|||||||||
| 03 | Device cover left | 1 | 51477387471 | Shop at ECS Tuning | ||||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 03 | Upper left instrument cover | 1 | 51478074161 | Shop at ECS Tuning | ||||||
| For vehicles with Luggage compartment package |
S418A=No |
|||||||||
| 04 | Pad floor carpet, left | 1 | 51477387481 | Shop at ECS Tuning | ||||||
| 04 | Pad floor carpet, right | 1 | 51477387482 | Shop at ECS Tuning | ||||||
| 05 | Gas spring, floor carpet | 1 | 51477466664 | Shop at ECS Tuning | ||||||
| 06 | Support, luggage compartment floor panel | 1 | 51477438716 | Shop at ECS Tuning | ||||||
| 07 | Fillister head screw | M6X16 | 1 | 07147131792 | $1.16 | Shop at ECS Tuning | ||||
| 08 | Hex nut with plate | M6-8-ZNNIV SI | 2 | 07119905544 | $0.64 | Shop at ECS Tuning | ||||
| 09 | Rear ventilation, left | 1 | 51477446851 | Shop at ECS Tuning | ||||||
| 09 | Rear air discharge, right | 1 | 51477447173 | Shop at ECS Tuning | ||||||
| 10 | Plastic capnut with washer | D=22MM | 3 | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 11 | Expanding rivet | 5 | 07147401727 | Shop at ECS Tuning | ||||||
| 12 | Plastic nut for coarse threaded pin | M6 | 2 | 16131176747 | $0.53 | Shop at ECS Tuning | ||||
