Left trunk trim for BMW 5 Series G31 Touring 520i (2016)

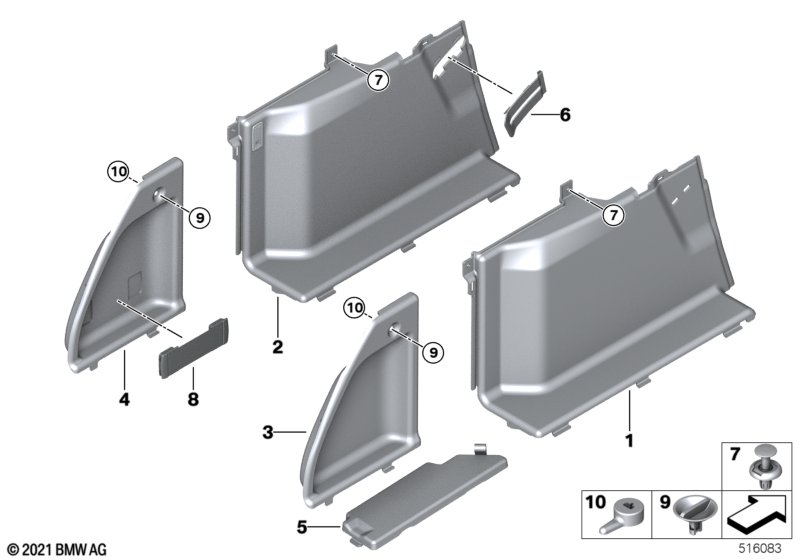

This Left trunk trim technical drawing provides a detailed breakdown of the assembly for the 5 Series G31 Touring 520i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2016.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Luggage compartment package |
S418A=No |
|||||||||
| 01 | Left trunk trim | SCHWARZ | 1 | 51477437917 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 01 | Left trunk trim | SCHWARZ | 1 | 51477884013 | NoS | Shop at ECS Tuning | ||||
| 01 | Left trunk trim | CANBERRABEIGE | 1 | 51478074151 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Luggage compartment package and canberra-beige or canberrabeige Exklusivnaht/Keder |
S418A=No CY=Yes DO=Yes |
|||||||||
| 01 | Left trunk trim | CANBERRABEIGE | 1 | 51477437915 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Luggage compartment package |
S146A=No S418A=Yes |
|||||||||
| 02 | Left trunk trim | SCHWARZ | 1 | 51477437921 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Luggage compartment package and canberra-beige or canberrabeige Exklusivnaht/Keder |
S146A=No S418A=Yes CY=Yes DO=Yes |
|||||||||
| 02 | Left trunk trim | CANBERRABEIGE | 1 | 51477437919 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply |
S146A=Yes |
|||||||||
| 03 | Left trunk flap | SCHWARZ | 1 | 51478074140 | Shop at ECS Tuning | |||||
| 03 | Left trunk flap | CANBERRABEIGE | 1 | 51478074149 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Additional energy supply and Luggage compartment package |
S146A=No S418A=No |
|||||||||
| 03 | Left trunk flap | SCHWARZ | 1 | 51477437733 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Luggage compartment package and canberra-beige or canberrabeige Exklusivnaht/Keder |
S146A=No S418A=No CY=Yes DO=Yes |
|||||||||
| 03 | Left trunk flap | CANBERRABEIGE | 1 | 51477437731 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Luggage compartment package |
S146A=No S418A=Yes |
|||||||||
| 04 | Left trunk flap | SCHWARZ | 1 | 51477458353 | Shop at ECS Tuning | |||||
| For vehicles with Additional energy supply and Luggage compartment package and canberra-beige or canberrabeige Exklusivnaht/Keder |
S146A=No S418A=Yes CY=Yes DO=Yes |
|||||||||
| 04 | Left trunk flap | CANBERRABEIGE | 1 | 51477458351 | Shop at ECS Tuning | |||||
| For vehicles with Luggage compartment package |
S418A=Yes |
|||||||||
| 06 | Cover for cargo, left | SCHWARZ | 1 | 51477437927 | Shop at ECS Tuning | |||||
| For vehicles with Luggage compartment package and canberra-beige or canberrabeige Exklusivnaht/Keder |
S418A=Yes CY=Yes DO=Yes |
|||||||||
| 06 | Cover for cargo, left | CANBERRABEIGE | 1 | 51477437925 | Shop at ECS Tuning | |||||
| 07 | Expanding rivet | 4 | 07147401727 | Shop at ECS Tuning | ||||||
| 09 | Actuating button upper section | SCHWARZ | 1 | 51477951967 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder |
CY=Yes DO=Yes |
|||||||||
| 09 | Actuating button upper section | CANBERRABEIGE | 1 | 51477951966 | NoS | Shop at ECS Tuning | ||||
| 10 | Actuating button lower section | SCHWARZ | 1 | 51477951969 | Shop at ECS Tuning | |||||
| For vehicles with canberra-beige or canberrabeige Exklusivnaht/Keder |
CY=Yes DO=Yes |
|||||||||
| 10 | Actuating button lower section | CANBERRABEIGE | 1 | 51477951968 | NoS | Shop at ECS Tuning | ||||
Notes
- NoS = No Stock (Part centrally not stocked)
