Door window lifting mechanism front for BMW 3 Series E92 328i (2010)

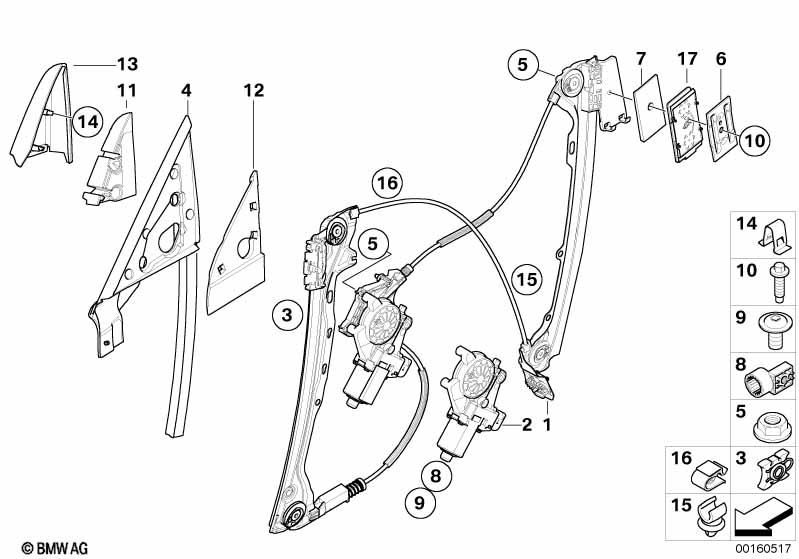

This Door window lifting mechanism front technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 328i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2010.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Window lifter, left | 1 | 51337193455 | $140.98 | Shop at ECS Tuning | |||||
| 01 | Window lifter, right | 1 | 51337193456 | $140.98 | Shop at ECS Tuning | |||||
| only applies to window lifter right | ||||||||||
| 02 | Drive for window lifter | 1 | 67627189232 | $147.05 | Shop at ECS Tuning | |||||
| only applies to window lifter left | ||||||||||
| 02 | Drive for window lifter | 1 | 67627189231 | $147.05 | Shop at ECS Tuning | |||||
| 03 | Sliding piece | 2 | 51321938884 | $3.02 | Shop at ECS Tuning | |||||
| 04 | Window guide, left front door | 1 | 51337119067 | $55.88 | Shop at ECS Tuning | |||||
| 04 | Window guide, right front door | 1 | 51337119068 | $55.88 | Shop at ECS Tuning | |||||
| 05 | Hex nut | M6 | X | 07146951627 | $0.53 | Shop at ECS Tuning | ||||
| 06 | Clamp plate | 2 | 51337119209 | $2.93 | Shop at ECS Tuning | |||||
| 08 | Support | 2 | 51337162963 | $4.00 | Shop at ECS Tuning | |||||
| 09 | Hexagon screw with flange | M6X10-8.8-ZNS3 | 2 | 07119904128 | $0.53 | Shop at ECS Tuning | ||||
| 10 | Hexagon screw with flange | ISA | 1 | 07146955564 | $0.89 | Shop at ECS Tuning | ||||
| 11 | Seal, inner left mirror triangle | 1 | 51337119173 | $12.98 | Shop at ECS Tuning | |||||
| 11 | Seal, inner right mirror triangle | 1 | 51337119174 | $12.98 | Shop at ECS Tuning | |||||
| only applies to WITHOUT Loudspeaker |
||||||||||
| 11 | Seal, inner left mirror triangle | 1 | 51337198717 | $13.50 | Shop at ECS Tuning | |||||
| 11 | Seal, inner right mirror triangle | 1 | 51337198718 | $15.36 | Shop at ECS Tuning | |||||
| 12 | Seal, outer left mirror triangle | 1 | 51337153795 | $14.08 | Shop at ECS Tuning | |||||
| 12 | Seal, outer right mirror triangle | 1 | 51337153796 | $14.08 | Shop at ECS Tuning | |||||
| 13 | Corner moulding, interior left | 1 | 51337162519 | $7.98 | Shop at ECS Tuning | |||||
| 13 | Corner moulding, interior right | 1 | 51337162520 | $7.98 | Shop at ECS Tuning | |||||
| For vehicles with Harman/Kardon Surround Sound system WITHOUT Loudspeaker |
S688A=Yes |
|||||||||
| 13 | Corner moulding, interior left | HARMAN/KARDON | 1 | 51337270893 | Shop at ECS Tuning | |||||
| 13 | Corner moulding, interior right | HARMAN/KARDON | 1 | 51337270894 | Shop at ECS Tuning | |||||
| For vehicles with HiFi speaker system or HiFi System Professional DSP WITHOUT Loudspeaker |
S676A=Yes S677A=Yes |
|||||||||
| 13 | Corner moulding, interior left | 1 | 51337184197 | $18.70 | Shop at ECS Tuning | |||||
| 13 | Corner moulding, interior right | 1 | 51337184198 | $18.70 | Shop at ECS Tuning | |||||
| 14 | Spring clip | 2 | 51337182524 | $0.42 | Shop at ECS Tuning | |||||
| Bowden cable | ||||||||||
| 15 | Cable holder | 2 | 07147075057 | $1.28 | Shop at ECS Tuning | |||||
| 16 | Cable holder | D=5MM | 2 | 61131379079 | $0.48 | Shop at ECS Tuning | ||||
| 17 | Base | 2 | 51337119210 | $3.02 | Shop at ECS Tuning | |||||
