Exterior trim / Grille / Seals for BMW 3 Series E92 LCI 330i (2012)

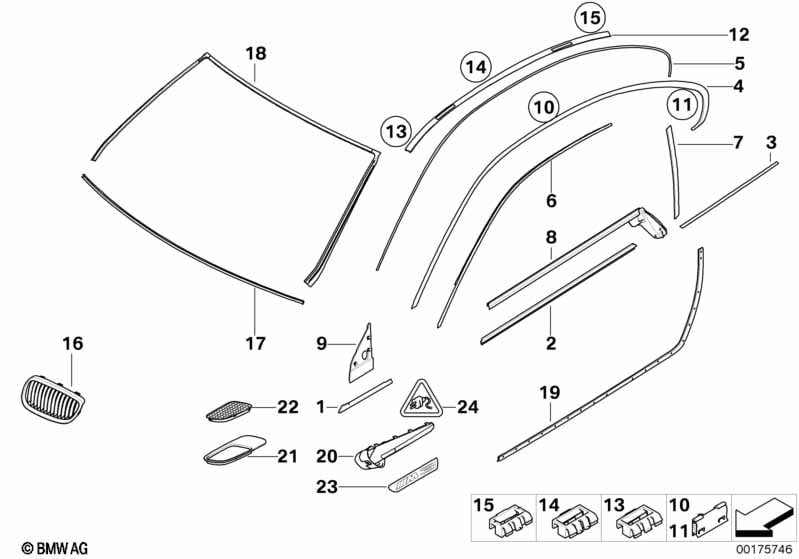

This Exterior trim / Grille / Seals technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 LCI 330i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2012.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Outer weatherstrip, left | CHROM | 1 | 51337157249 | $35.08 | Shop at ECS Tuning | ||||
| 01 | Outer weatherstrip, right | CHROM | 1 | 51337157250 | $35.08 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 01 | Outer weatherstrip, left | GLANZSCHWARZ | 1 | 51338036663 | $35.08 | Shop at ECS Tuning | ||||
| 01 | Outer weatherstrip, right | GLANZSCHWARZ | 1 | 51338036664 | $35.08 | Shop at ECS Tuning | ||||
| 02 | Channel cover,exterior,door, front left | CHROM | 1 | 51337119079 | $51.42 | Shop at ECS Tuning | ||||
| 02 | Channel cover,exterior,door, front right | CHROM | 1 | 51337119080 | $51.42 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 02 | Channel cover,exterior,door, front left | GLANZSCHWARZ | 1 | 51338036657 | $51.42 | Shop at ECS Tuning | ||||
| 02 | Channel cover,exterior,door, front right | GLANZSCHWARZ | 1 | 51338036658 | $51.42 | Shop at ECS Tuning | ||||
| 03 | Finisher, side window, rear left | CHROM | 1 | 51377162571 | $58.38 | Shop at ECS Tuning | ||||
| 03 | Finisher, side window, rear right | CHROM | 1 | 51377162572 | $58.38 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 03 | Finisher, side window, rear left | GLANZSCHWARZ | 1 | 51378036659 | $58.38 | Shop at ECS Tuning | ||||
| 03 | Finisher, side window, rear right | GLANZSCHWARZ | 1 | 51378036660 | $58.38 | Shop at ECS Tuning | ||||
| 04 | Roof frame strip, left | CHROM | 1 | 51767119075 | $351.67 | Shop at ECS Tuning | ||||
| 04 | Roof frame strip, right | CHROM | 1 | 51767119076 | $351.67 | Shop at ECS Tuning | ||||
| For vehicles with High gloss shadow line |
S760A=Yes |
|||||||||
| 04 | Roof frame strip, left | GLANZSCHWARZ | 1 | 51768036661 | $509.10 | Shop at ECS Tuning | ||||
| 04 | Roof frame strip, right | GLANZSCHWARZ | 1 | 51768036662 | $509.10 | Shop at ECS Tuning | ||||
| 05 | Piping, roof frame strip, left | 1 | 51767167601 | $10.45 | Shop at ECS Tuning | |||||
| 05 | Piping, roof frame strip, right | 1 | 51767167602 | $10.45 | Shop at ECS Tuning | |||||
| 06 | Gasket left | 1 | 51767157531 | $61.68 | Shop at ECS Tuning | |||||
| 06 | Gasket right | 1 | 51767157532 | $61.68 | Shop at ECS Tuning | |||||
| 07 | Cover column B left | 1 | 51377453299 | Shop at ECS Tuning | ||||||
| 07 | Cover column B right | 1 | 51377453300 | Shop at ECS Tuning | ||||||
| 08 | Channel sealing,inside,door, front left | 1 | 51337119089 | $31.17 | Shop at ECS Tuning | |||||
| 08 | Channel sealing,inside,door, front right | 1 | 51337119090 | $31.17 | Shop at ECS Tuning | |||||
| 09 | Seal, outer left mirror triangle | 1 | 51337153795 | $14.08 | Shop at ECS Tuning | |||||
| 09 | Seal, outer right mirror triangle | 1 | 51337153796 | $14.08 | Shop at ECS Tuning | |||||
| 10 | Clip, roof frame strip | 22 | 06/2013 | 51767162587 | $1.00 | Shop at ECS Tuning | ||||
| 10 | Clip strip roof frame | 22 | 51765A71150 | Shop at ECS Tuning | ||||||
| 11 | Grommet | X | 51318150943 | $0.27 | Shop at ECS Tuning | |||||
| 11 | Clip, roof frame strip | 2 | 51767182643 | $1.10 | Shop at ECS Tuning | |||||
| 12 | Roof molding prime-coated left | 1 | 51137181353 | $116.40 | Shop at ECS Tuning | |||||
| 12 | Roof molding prime-coated right | 1 | 51137181354 | $116.40 | Shop at ECS Tuning | |||||
| When ordering indicate color code | ||||||||||
| 12 | Roof molding painted left | CODE - UNI/MET. | 1 | 51130033795 | ENDED | Shop at ECS Tuning | ||||
| 12 | Roof molding painted right | CODE - UNI/MET. | 1 | 51130033796 | ENDED | Shop at ECS Tuning | ||||
| 13 | Clip | BLAU | 2 | 51137174701 | $0.63 | Shop at ECS Tuning | ||||
| 14 | Clip | GELB | 2 | 51137174700 | $0.63 | Shop at ECS Tuning | ||||
| 15 | Clip | SCHWARZ | 2 | 51137077127 | $0.61 | Shop at ECS Tuning | ||||
| 16 | Grille, chrome, left | CHROM | 1 | 03/2010 | 51137254969 | Shop at ECS Tuning | ||||
| 16 | Grille, chrome, right | CHROM | 1 | 03/2010 | 51137254970 | Shop at ECS Tuning | ||||
| 17 | Supporting ledge | 1 | 51137133292 | $7.35 | Shop at ECS Tuning | |||||
| 18 | Cover, windshield | 1 | 51317119711 | $34.28 | Shop at ECS Tuning | |||||
| 19 | Joint seal, left | 1 | 51337119093 | $21.88 | Shop at ECS Tuning | |||||
| 19 | Joint seal, right | 1 | 51337119094 | $21.88 | Shop at ECS Tuning | |||||
Notes
- ENDED = the part has been discontinued (no longer available).
