Headlining for BMW MINI Countryman F60 Cooper (2020)

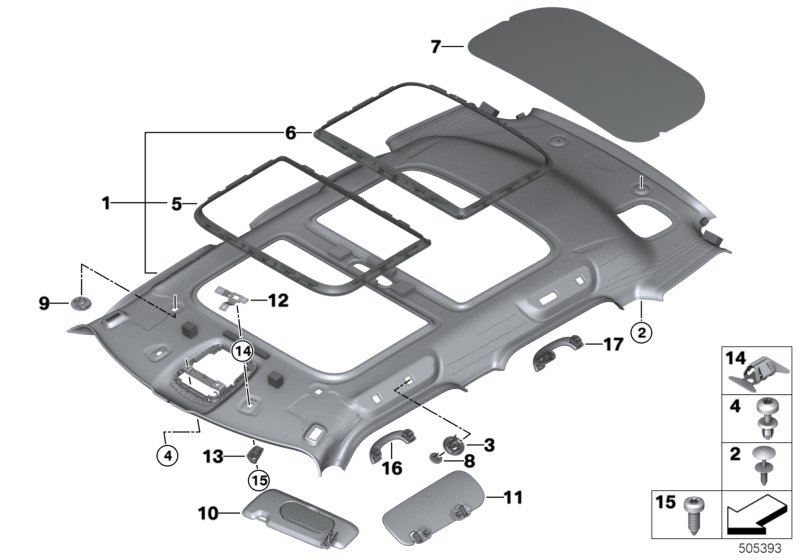

This Headlining technical drawing provides a detailed breakdown of the assembly for the MINI Countryman F60 Cooper. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2020.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=No S4AAA=Yes |
|||||||||
| 01 | Headlining | SCHWARZ | 1 | 51447421889 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S4AAA=Yes |
|||||||||
| 01 | Headlining panoramic roof | SCHWARZ | 1 | 51447421890 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S4AAA=No |
|||||||||
| 01 | Headlining panoramic roof | SATELLITE GREY | 1 | 51447421903 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=No S4AAA=No |
|||||||||
| 01 | Headlining | SATELLITE GREY | 1 | 51447421901 | NoS | Shop at ECS Tuning | ||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 02 | Expanding rivet | SATELLITE GREY | 2 | 51447376646 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 02 | Expanding rivet | CARBON BLACK | 2 | 51442756902 | $0.65 | Shop at ECS Tuning | ||||
| 04 | Expanding rivet | D=7,5MM | 2 | 51481915964 | $0.43 | Shop at ECS Tuning | ||||
| For vehicles with Electric panoramic roof |
S402A=Yes |
|||||||||
| 05 | Frame for panorama glass roof, front | SCHWARZ | 1 | 51447347691 | Shop at ECS Tuning | |||||
| 06 | Frame for panorama glass roof, rear | SCHWARZ | 1 | 51447347695 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof |
S402A=No |
|||||||||
| 07 | Brace, roof, large | 2 | 51445A48C49 | Shop at ECS Tuning | ||||||
| For bonding the rear brace for the roof, please use the ¿brushable seam sealer¿ (part number 2 409 986). Can be found on BTE 83_0378. |
||||||||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 09 | Cover, microphone | SCHWARZ | 1 | 51447495572 | Shop at ECS Tuning | |||||
| For vehicles with Wired and Headlining anthracite and Telephony USA and Phoning with wireless charging |
P7L5A=Yes S4AAA=No S6NPA=Yes S6NWA=Yes |
|||||||||
| 09 | Cover, microphone | SATELLITE GREY | 2 | 51449475690 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 10 | Left illuminated sun visor | SATELLITE GREY | 1 | 51167424697 | Shop at ECS Tuning | |||||
| 10 | Right illuminated sun visor | SATELLITE GREY | 1 | 51167424698 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 10 | Left illuminated sun visor | SCHWARZ | 1 | 51167389283 | Shop at ECS Tuning | |||||
| 10 | Right illuminated sun visor | SCHWARZ | 1 | 51167389284 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=No S4AAA=Yes |
|||||||||
| 11 | Sun visor, side, left | SCHWARZ | 1 | 51167389296 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S4AAA=Yes |
|||||||||
| 11 | Sun visor, side, left | SCHWARZ | 1 | 51167389294 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=Yes S4AAA=No |
|||||||||
| 11 | Sun visor, side, left | SATELLITE GREY | 1 | 51167418766 | Shop at ECS Tuning | |||||
| For vehicles with Electric panoramic roof and Headlining anthracite |
S402A=No S4AAA=No |
|||||||||
| 11 | Sun visor, side, left | SATELLITE GREY | 1 | 51167418750 | NoS | Shop at ECS Tuning | ||||
| 12 | Bracket for sun visor, left | 1 | 51447298727 | Shop at ECS Tuning | ||||||
| 12 | Bracket for sun visor, right | 1 | 51447298728 | Shop at ECS Tuning | ||||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 13 | Counterbearing for sun visor | SATELLITE GREY | 2 | 51167375974 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 13 | Counterbearing for sun visor | SCHWARZ | 2 | 51167896985 | $1.83 | Shop at ECS Tuning | ||||
| 14 | Clip | 2 | 51167145718 | $1.11 | Shop at ECS Tuning | |||||
| 15 | Torx sheet-metal screw | ISA ST4,2X13 | 2 | 07119907470 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 16 | Grab handle, front | SATELLITE GREY | 1 | 51167367784 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 16 | Grab handle, front | SCHWARZ | 1 | 51167336852 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=No |
|||||||||
| 17 | Handle rear | SATELLITE GREY | 2 | 51167347852 | Shop at ECS Tuning | |||||
| For vehicles with Headlining anthracite |
S4AAA=Yes |
|||||||||
| 17 | Handle rear | SCHWARZ | 2 | 51167347849 | Shop at ECS Tuning | |||||
Notes
- NoS = No Stock (Part centrally not stocked)
