Interior moldings Titan Line for BMW 3 Series E92 330d (2008)

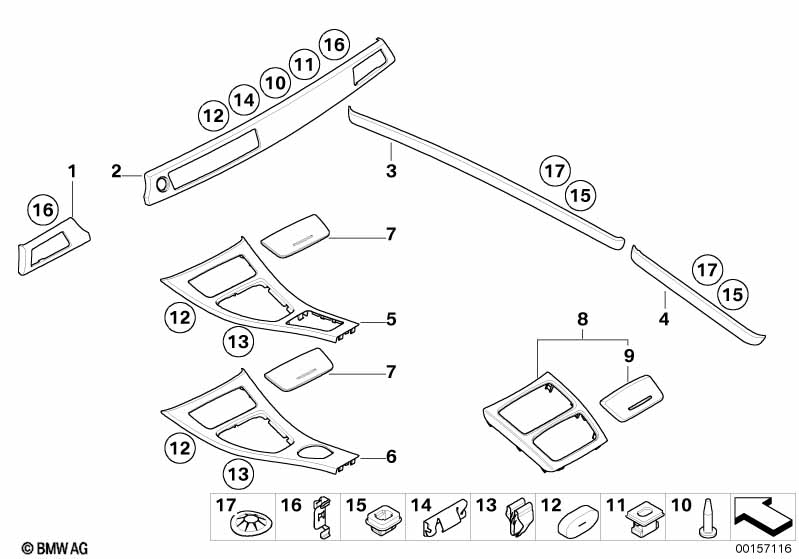

This Interior moldings Titan Line technical drawing provides a detailed breakdown of the assembly for the 3 Series E92 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2008.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Decorative strip, dashboard left | TITAN II | 1 | 51456985639 | $26.02 | +core | Shop at ECS Tuning | |||
| 02 | Decorative strip, dashboard right | TITAN II | 1 | 51456985641 | $71.70 | +core | Shop at ECS Tuning | |||
| 03 | Decor strip, left doors | TITAN II | 1 | 51416958233 | $41.08 | +core | Shop at ECS Tuning | |||
| 03 | Decor strip, right doors | TITAN II | 1 | 51416958234 | $41.08 | Shop at ECS Tuning | ||||
| 04 | Decorative strip trim panel, rear left | TITAN II | 1 | 51436958245 | $27.52 | +core | Shop at ECS Tuning | |||
| 04 | Decorative strip trim panel, rear right | TITAN II | 1 | 51436958246 | $27.52 | ENDED, +core | Shop at ECS Tuning | |||
| 05 | Cover centre console, front | TITAN II | 1 | 51166985612 | $193.97 | ENDED | Shop at ECS Tuning | |||
| 06 | Cover centre console, front | TITAN II | 1 | 51166985614 | $193.97 | Shop at ECS Tuning | ||||
| 07 | Covering ashtray | RUTHENIUM/TITAN | 1 | 51166951575 | $37.13 | Shop at ECS Tuning | ||||
| 08 | Cover, rear console, front | TITAN II | 1 | 51166960672 | $97.43 | ENDED | Shop at ECS Tuning | |||
| 09 | Cover, oddments box, rear | TITAN II | 1 | 51166960674 | $31.98 | ENDED | Shop at ECS Tuning | |||
| 10 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 10 | Pin | 16 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 10 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning |
Notes
- +core = plus core charge (possibility of a return of the old part)
- ENDED = the part has been discontinued (no longer available).
