Interior trim finishers black high-gloss for BMW 3 Series E93 330d (2009)

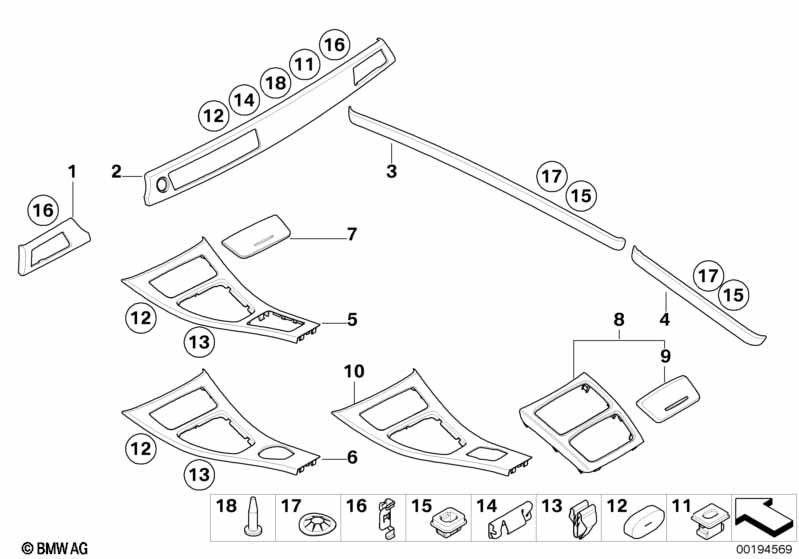

This Interior trim finishers black high-gloss technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 330d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2009.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| For vehicles with Interior trim finishers black high-gloss |
S4ATA=Yes |
|||||||||
| 01 | Decorative strip, dashboard left | DIAMANTSCHWARZ | 1 | 51456985890 | $29.98 | Shop at ECS Tuning | ||||
| 02 | Decorative strip, dashboard right | DIAMANTSCHWARZ | 1 | 51456985892 | $85.00 | Shop at ECS Tuning | ||||
| 03 | Decor strip, left doors | DIAMANTSCHWARZ | 1 | 51416986217 | $48.47 | Shop at ECS Tuning | ||||
| 03 | Decor strip, right doors | DIAMANTSCHWARZ | 1 | 51416986218 | $48.47 | Shop at ECS Tuning | ||||
| 04 | Decorative strip trim panel, rear left | DIAMANTSCHWARZ | 1 | 51436986219 | $31.95 | Shop at ECS Tuning | ||||
| 04 | Decorative strip trim panel, rear right | DIAMANTSCHWARZ | 1 | 51436986220 | $31.95 | Shop at ECS Tuning | ||||
| 06 | Cover center console | DIAMANTSCHWARZ | 1 | 51166982644 | $227.87 | Shop at ECS Tuning | ||||
| 07 | Cover | DIAMANTSCHWARZ | 1 | 51166982648 | $46.33 | Shop at ECS Tuning | ||||
| 08 | Cover, rear console, front | DIAMANTSCHWARZ | 1 | 51166966488 | $115.11 | Shop at ECS Tuning | ||||
| 09 | Cover, oddments box, rear | DIAMANTSCHWARZ | 1 | 51166966490 | $38.98 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4ATA=Yes S602A=Yes S606A=No S609A=No |
|||||||||
| 10 | Cover center console | DIAMANTSCHWARZ | 1 | 09/2008 | 51169170932 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4ATA=Yes S602A=No S606A=Yes S609A=No |
|||||||||
| 10 | Cover center console | DIAMANTSCHWARZ | 1 | 09/2008 | 51169170932 | Shop at ECS Tuning | ||||
| For vehicles with Interior trim finishers black high-gloss and On-board monitor with TV and Navigation system Business and Navigation system Professional |
S4ATA=Yes S602A=No S606A=No S609A=Yes |
|||||||||
| 10 | Cover center console | DIAMANTSCHWARZ | 1 | 09/2008 | 51169170932 | Shop at ECS Tuning | ||||
| 11 | Plug-in retainer | 20 | 51457152442 | $0.73 | Shop at ECS Tuning | |||||
| 12 | Gasket, decor panel | 4 | 51166952674 | $0.73 | Shop at ECS Tuning | |||||
| 13 | Clamp | 6 | 07147321144 | Shop at ECS Tuning | ||||||
| 14 | Clamp | 1 | 51457146751 | $0.85 | Shop at ECS Tuning | |||||
| 15 | Plug-in retainer | 4 | 07149158194 | $0.79 | Shop at ECS Tuning | |||||
| 16 | Clip, outer decor strip | 2 | 51457146752 | $0.63 | Shop at ECS Tuning | |||||
| 17 | Axial securing clip | 5,75MM | 34 | 52207115704 | $0.32 | Shop at ECS Tuning | ||||
| 17 | Circlip | D=4MM | 34 | 51418144600 | $0.40 | Shop at ECS Tuning | ||||
| 18 | Pin | D=6X22 | 19 | 11119199461 | $1.53 | Shop at ECS Tuning | ||||
| 18 | Pin | 16 | 51419132338 | $0.59 | Shop at ECS Tuning | |||||
| 18 | Pin | D=6X25 | 19 | 51458266808 | $1.02 | Shop at ECS Tuning | ||||
