Underbody trim on side for BMW 1 Series E87 118d (2007)

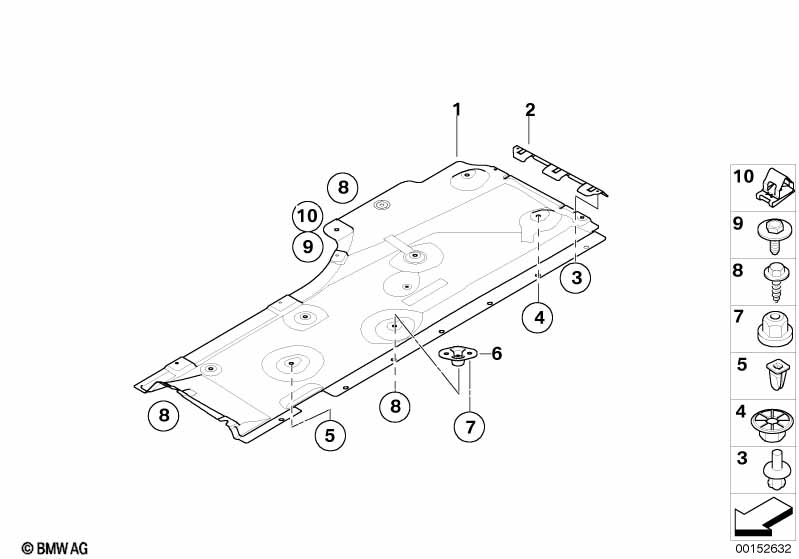

This Underbody trim on side technical drawing provides a detailed breakdown of the assembly for the 1 Series E87 118d. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2007.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| 01 | Lateral underbody shield, left | 1 | 51757059389 | $91.94 | Shop at ECS Tuning | |||||
| 01 | Lateral underbody shield, right | 1 | 51757059390 | $91.94 | Shop at ECS Tuning | |||||
| 02 | Deflector lip, underbody shield | 2 | 51757139114 | $5.56 | Shop at ECS Tuning | |||||
| 03 | Expanding rivet | 4 | 51161881149 | $0.20 | Shop at ECS Tuning | |||||
| 04 | Plastic nut | 5 | 51711958025 | $0.26 | Shop at ECS Tuning | |||||
| 05 | Expanding nut | L=15MM, DMAX=12 | 8 | 07146976114 | $0.09 | Shop at ECS Tuning | ||||
| 06 | Bracket underfloor panelling lateral | 2 | 51757125058 | $3.33 | Shop at ECS Tuning | |||||
| 07 | Plastic nut for coarse threaded pin | M6 | 4 | 07147336362 | Shop at ECS Tuning | |||||
| 08 | Hex head screw with washer | ST4,8X16MM | 11 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hex head screw | 2 | 07147151963 | $0.29 | Shop at ECS Tuning | |||||
| 10 | Sheetmetal nut with cap | ST4.8 | 2 | 07146952931 | $0.44 | Shop at ECS Tuning |
