Carrier, rear for BMW 3 Series E93 LCI 325i (2013)

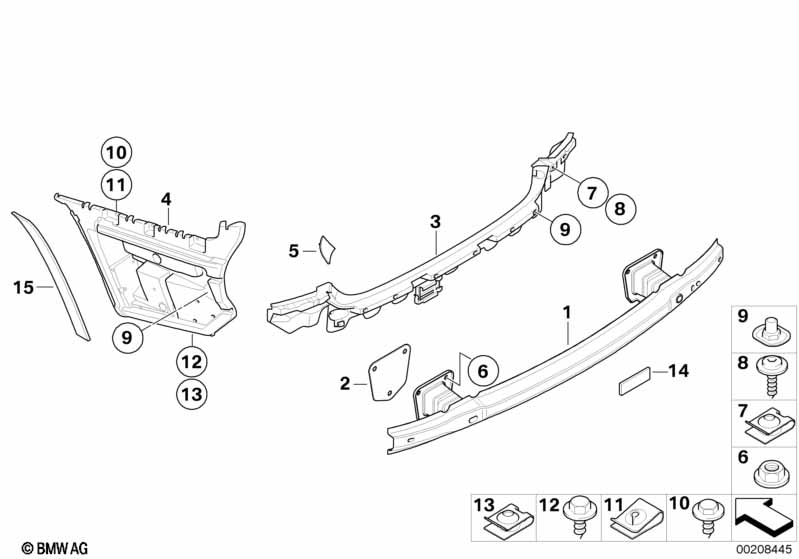

This Carrier, rear technical drawing provides a detailed breakdown of the assembly for the 3 Series E93 LCI 325i. It includes part names, part numbers and all associated mounting hardware for vehicles produced between 2013.
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | ||
|---|---|---|---|---|---|---|---|---|---|---|
| i | The bumper bracket must be sealed with cavity sealant, see Repair Instructions REP-51 11 050 and REP-51 12 050. |
|||||||||
| 01 | Carrier, bumper rear | 1 | 51127128251 | +core | Shop at ECS Tuning | |||||
| For vehicles with National version Korea |
L802A=Yes |
|||||||||
| 01 | Carrier, bumper rear | 1 | 51127179678 | $218.88 | +core | Shop at ECS Tuning | ||||
| 02 | Washer-gasket | 2 | 51127131741 | $1.23 | Shop at ECS Tuning | |||||
| 03 | Guide, center rear | 1 | 51127161457 | $17.35 | +core | Shop at ECS Tuning | ||||
| 04 | Guide for bumper, side, left | 1 | 51127128245 | $21.00 | Shop at ECS Tuning | |||||
| 04 | Guide for bumper, side, right | 1 | 51127128246 | $21.00 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 1 | 51127161661 | $0.71 | Shop at ECS Tuning | |||||
| 05 | Covering cap | 1 | 51127161662 | $0.71 | Shop at ECS Tuning | |||||
| 06 | Hex nut | M12X1,5-8-ZNS3 | 6 | 07119904578 | $0.82 | Shop at ECS Tuning | ||||
| 07 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 2 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 08 | Fillister head screw | ISA | 2 | 07149116377 | $0.36 | Shop at ECS Tuning | ||||
| 09 | Hexagon nut with collar | X | 07147154227 | $0.62 | Shop at ECS Tuning | |||||
| 09 | Plastic capnut with washer | D=22MM | X | 07147169847 | $0.36 | Shop at ECS Tuning | ||||
| 10 | Fillister head screw | 6 | 07147118369 | $0.80 | Shop at ECS Tuning | |||||
| 11 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 6 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
| 12 | Hex head screw with washer | ST4,8X16MM | 4 | 07147129160 | $0.36 | Shop at ECS Tuning | ||||
| 13 | C-clip nut, self-locking | ST 4.8 -ZNS3 | 4 | 07146951655 | $0.20 | Shop at ECS Tuning | ||||
Notes
- +core = plus core charge (possibility of a return of the old part)
